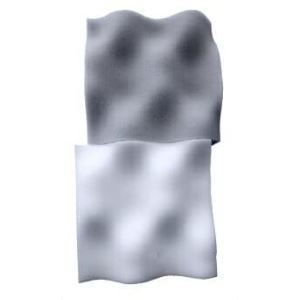

Foam S.T.O.P. Soundwave™ Melamine Acoustic Foam Panel

Melamine Acoustic Foam Panel

  • Class A Fire Retardant
  • High Performance Sound Absorber
  • Sound Wave Pattern
  • Fiber Free

Available as Hanging Acoustic Foam Baffles

NOTE:
Due to manufacturing limitations, this open cell acoustic foam’s wave pattern will not carry uninterrupted panel to panel

Product Specs

Material

Melamine Open Cell Acoustical Foam

Pattern

Convoluted Double Hump Anechoic Wedges.

Features

Acoustic Foam Panel Designed For Sound Absorption in a Wide Range of Frequencies. Increased Surface Absorption Area
NOTE:
Due to manufacturing limitations, wave pattern will not carry uninterrupted panel to panel

Applications

Industrial, Commercial, Audio, OEM Residential Markets, Ceilings, Walls, Partitions, Sound/Recording Studios, Radio Stations, Board Rooms, Swimming Pools, Churches, Schools, Gun Ranges, Enclosures

Thickness

1″, 2″, 3″, 4″

Sizes

2′ × 4′

Density

0.7lbs/cub. ft.

Colors

Standard: Natural White or Light Grey
Latex or HPC Paint: Black, Light Grey, Almond
Painted: Black, Brown, Beige, Light Gray (Custom Colors Also Available)

Flammability

ASTM E84, Class A. Flame Spread: 6; Smoke Developed: 15

Installation

ASI S.T.O.P Noise Acoustical Adhesive
NOTE:
Due to manufacturing limitations, wave pattern will not carry uninterrupted panel to panel


See More


Specifications

FOAM S.T.O.P. Soundwave - Sound Absorption/Noise Reduction
125Hz250Hz500Hz1KHz2KHz4KHzNRC
1″0.100.100.300.700.800.900.60
2″0.100.350.901.251.151.101.00
3″0.100.601.201.351.101.051.15
4″N/AN/AN/AN/AN/AN/AN/A
