Ecoustic® Crescent Tile

Description

ecoustic® Crescent is a dynamic three dimensional acoustic wall tile with semi-circular complimentary concave and convex geometry. Acoustic Crescent tiles utilize a simple to use wall clip system which is quick to install. Acoustic Crescent is available in 34 colorways.

*Tiles are not sampled. Colors may be selected from ecoustic® felt swatches.

Designer

Adam Goodrum and Patryk Koca

Application

Ceiling, Wall

Environment

California 01350 Emissions Compliant, Low VOC, Rapidly Renewable Content, Recycled Content, mindful MATERIALS, Greentag Level A Certified, HPD, Declare CDPH Emissions Compliant

Content

100% PET (up to 23% recycled content)

NRC Rating

(with Ecoustic® Infill: 0.80 )

Dimensions

15 3/4" x 7 7/8" x 1.18" thickness (400mm x 200mm x 30mm)

Sold In

Box sets of 16 per color (8 concave + 8 convex) *Boxes can not be broken*

Flammability

AS/ISO 9705 group 1
AS/NZS 1530.3
ASTM E84 Class A

Additional Information

- ecoustic® Crescent tiles can be installed in aligned or brickwork arrangements, with either complete coverage or with voids between tiles, thanks to tile form, scale, and a flexible installation system.
- ecoustic® Crescent can be applied to ceilings using our proprietary clip system.

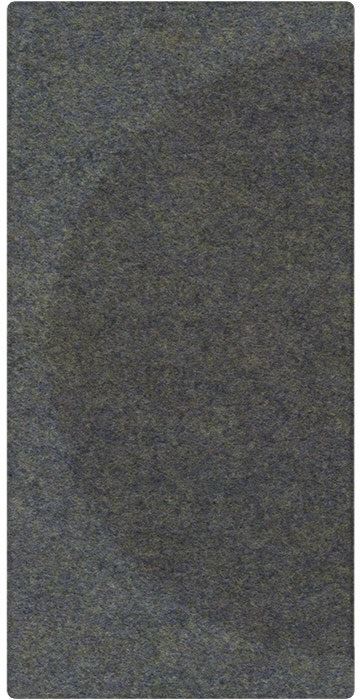

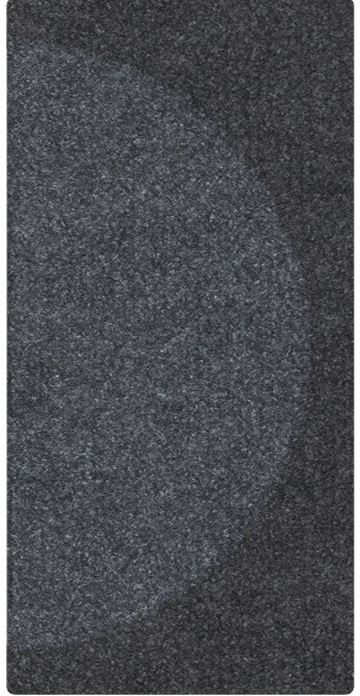

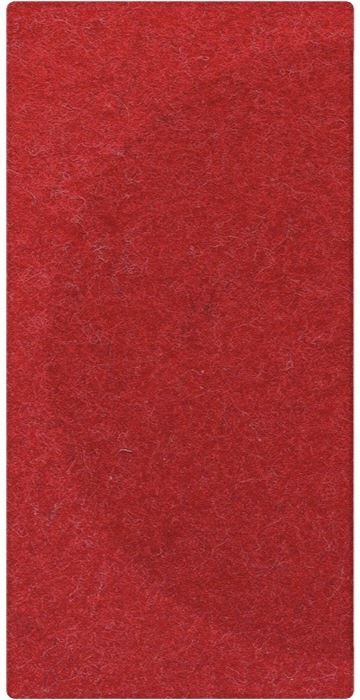

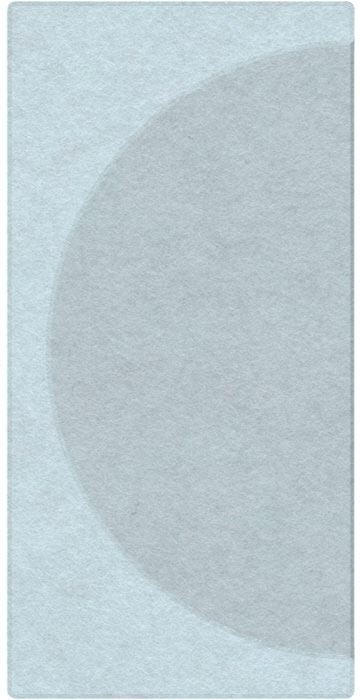

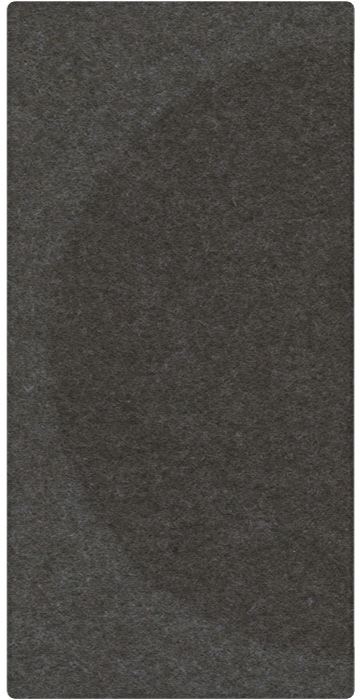

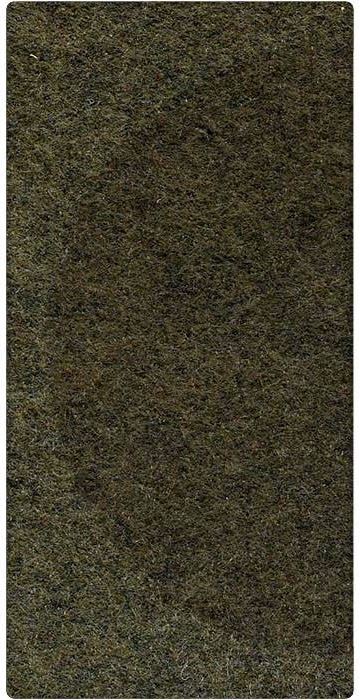

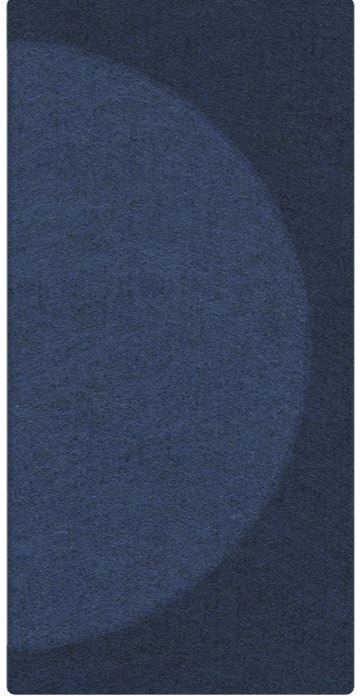

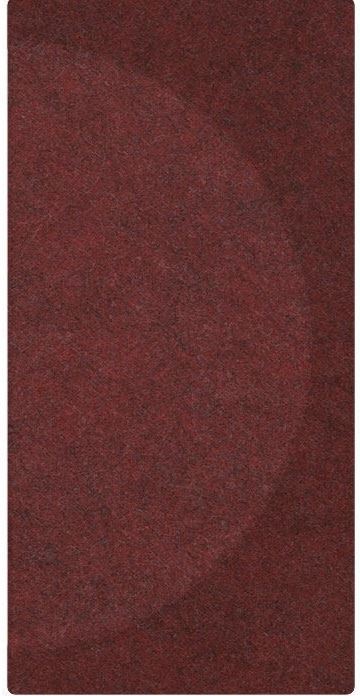

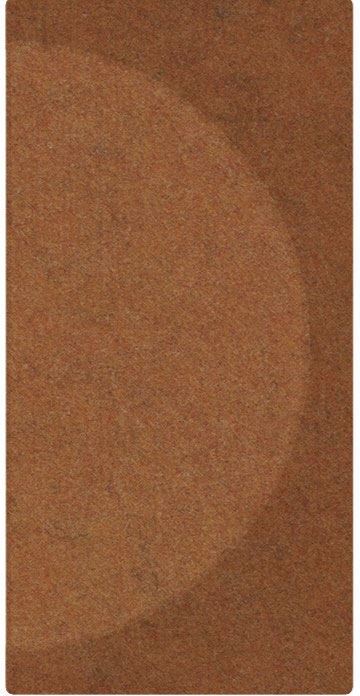

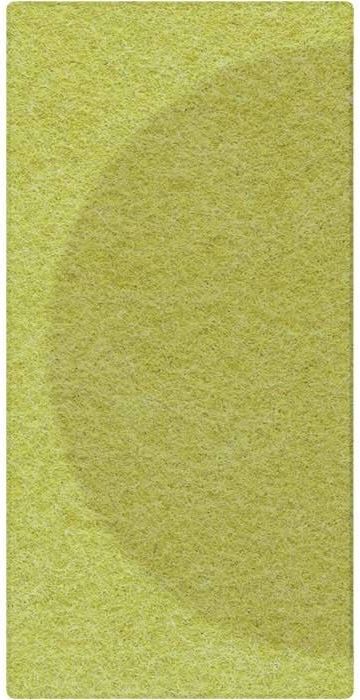

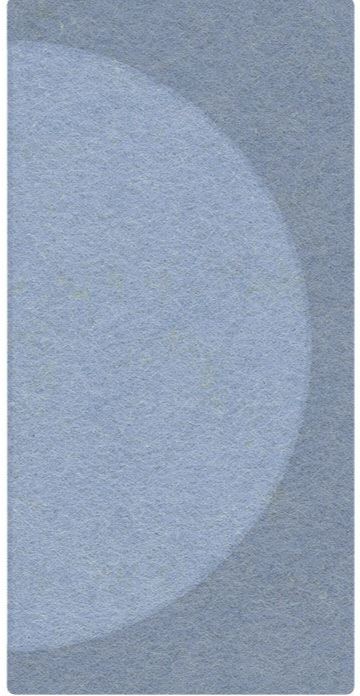

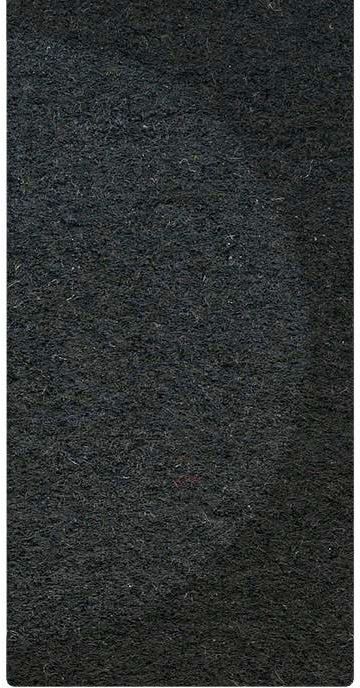

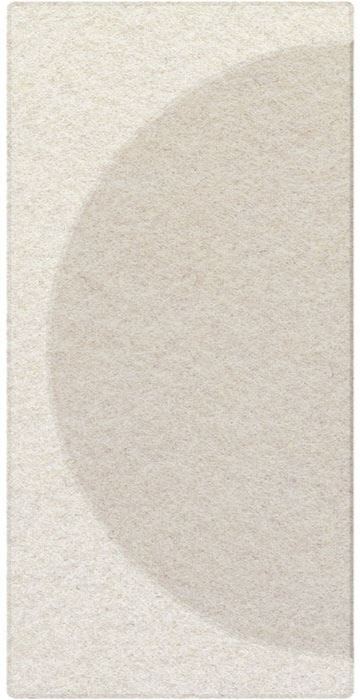

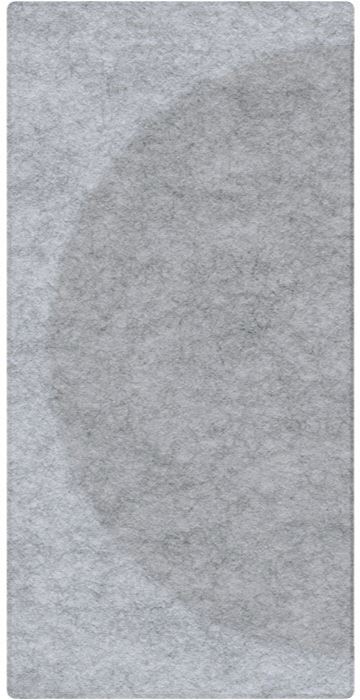

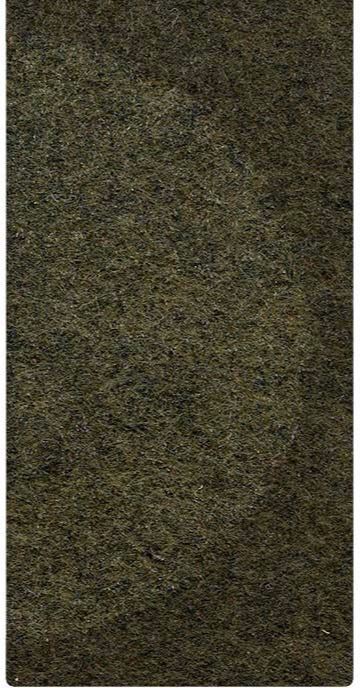

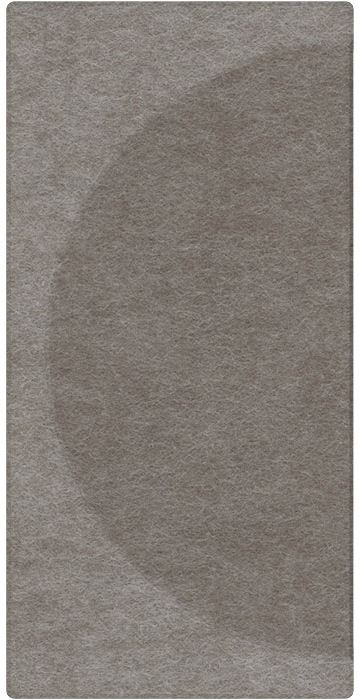

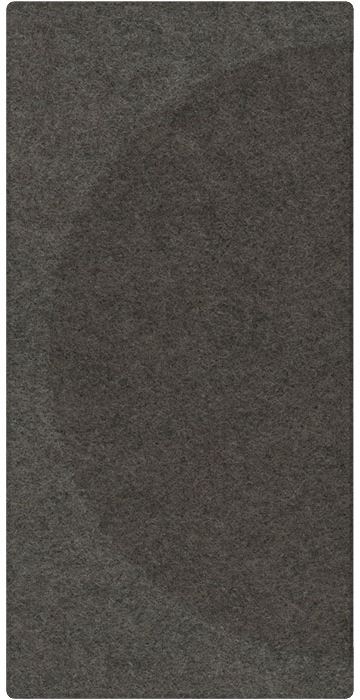

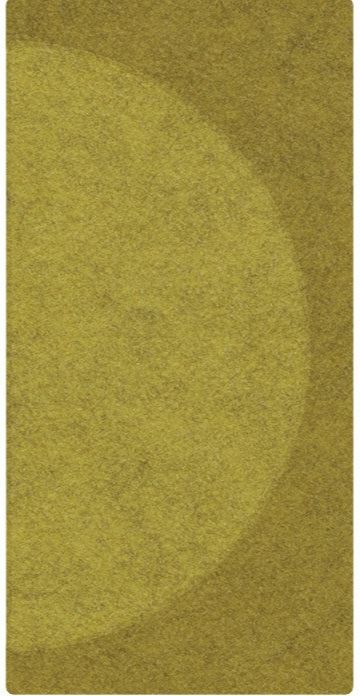

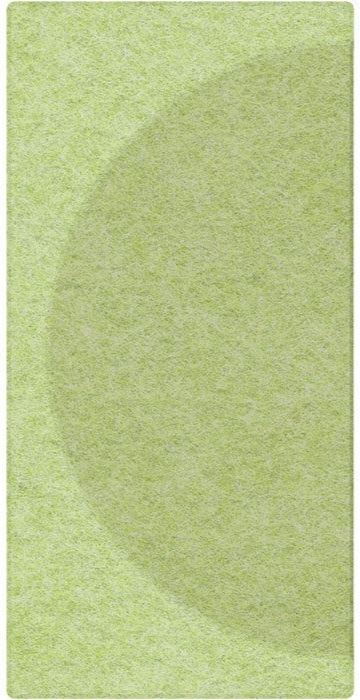

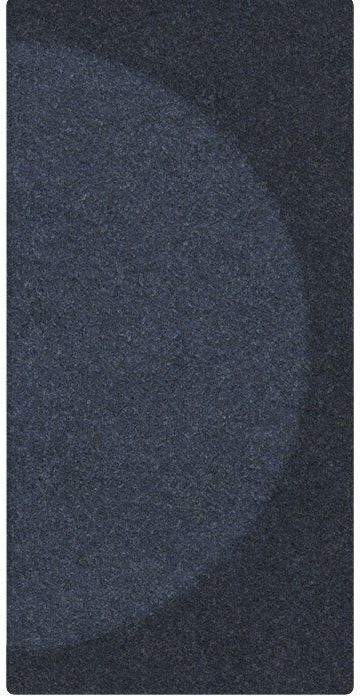

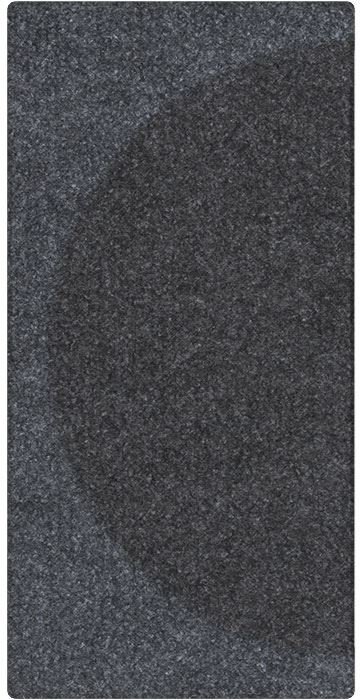

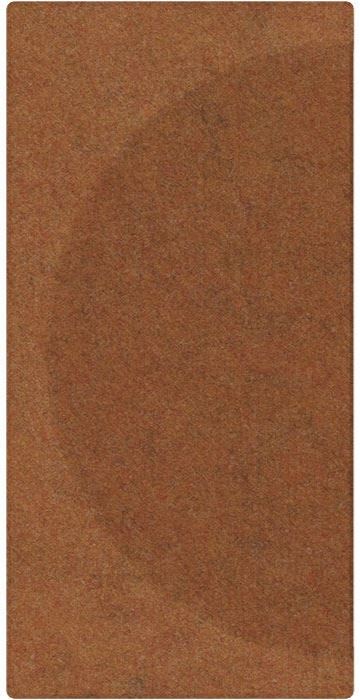

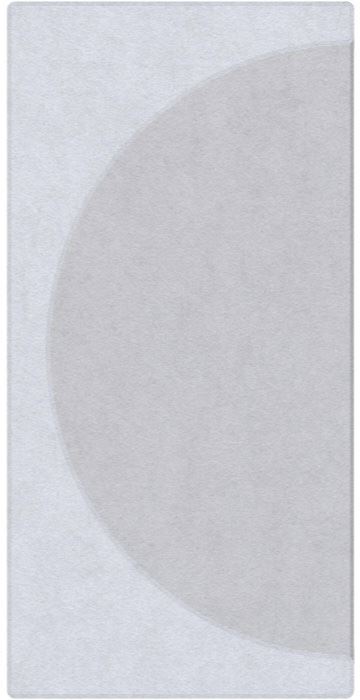

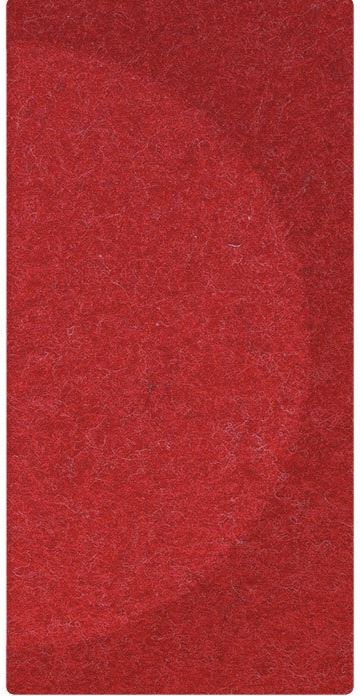

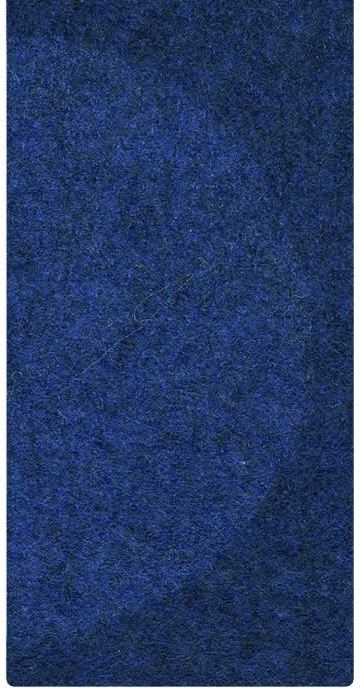

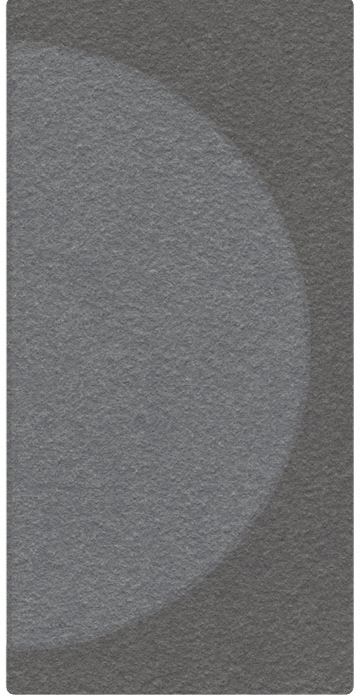

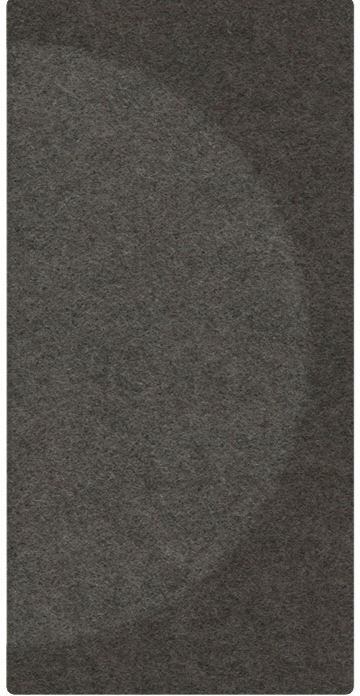

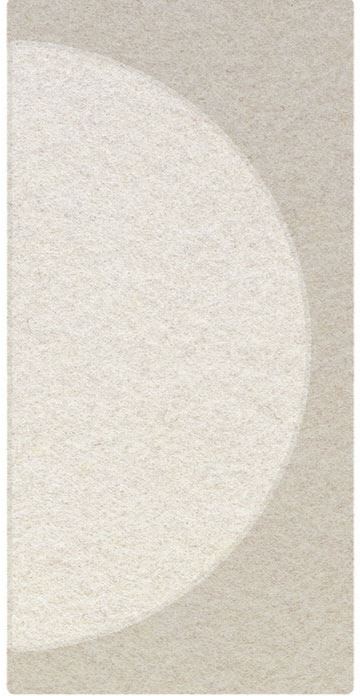

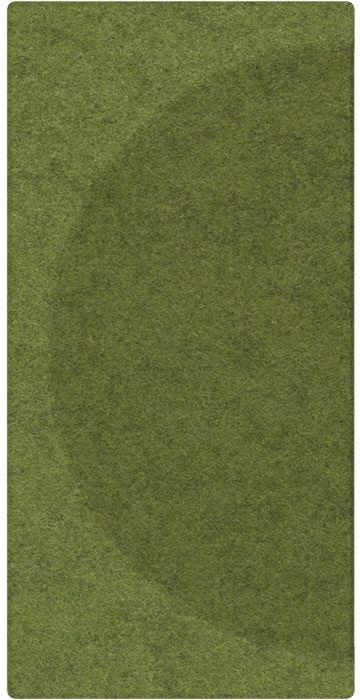

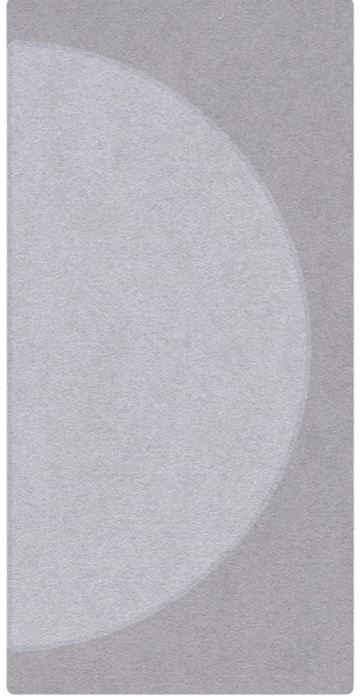

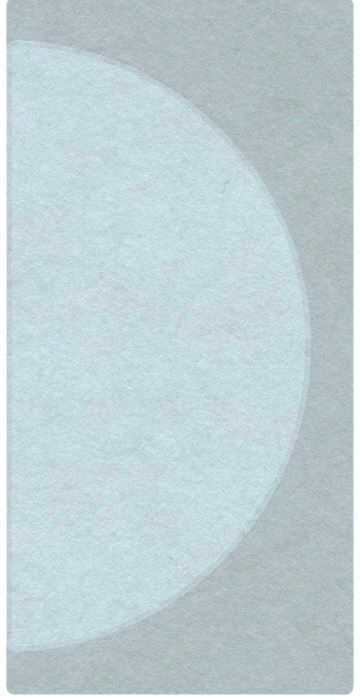

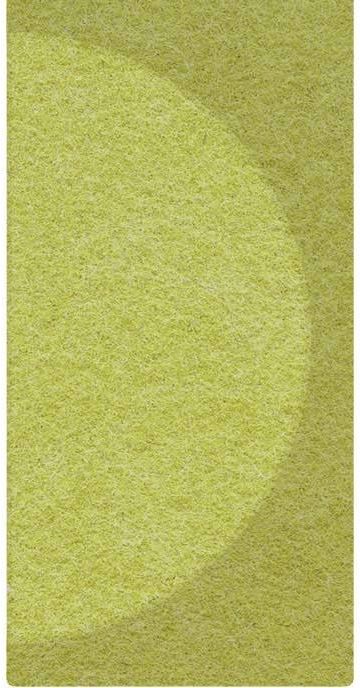

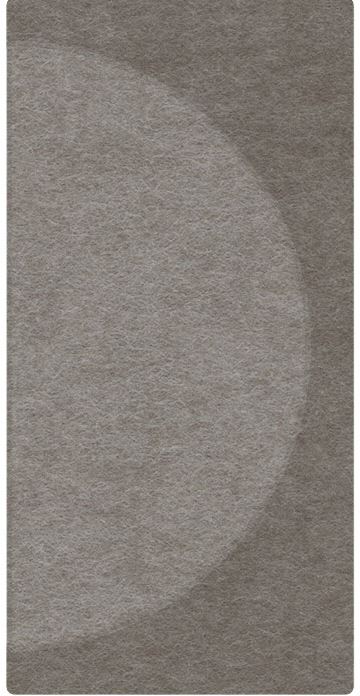

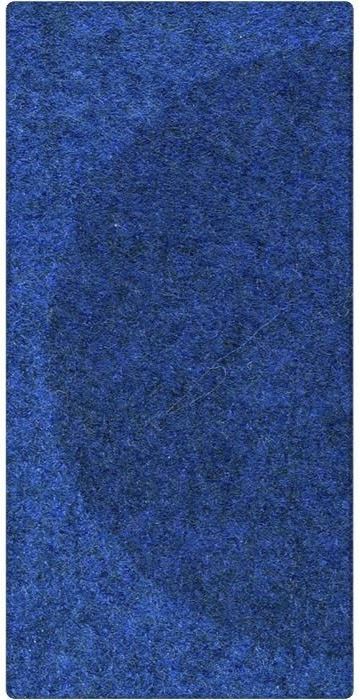

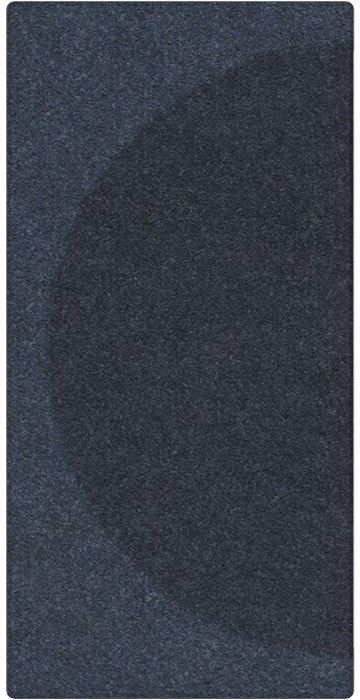

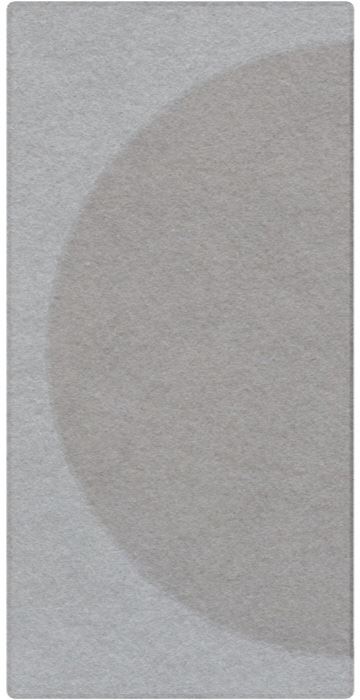

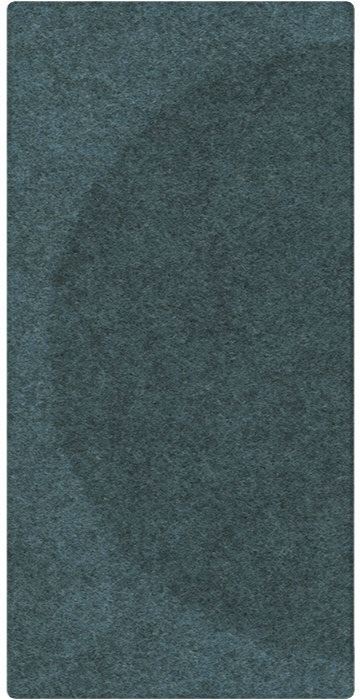

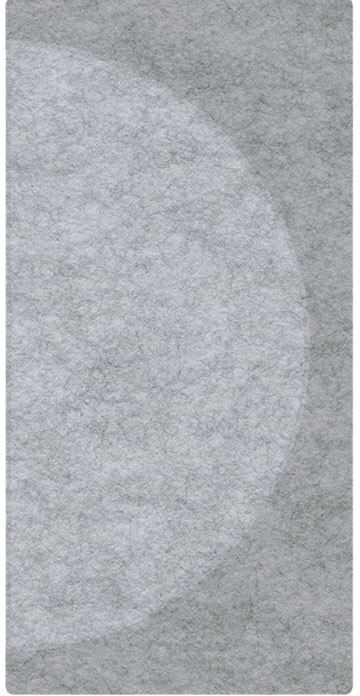

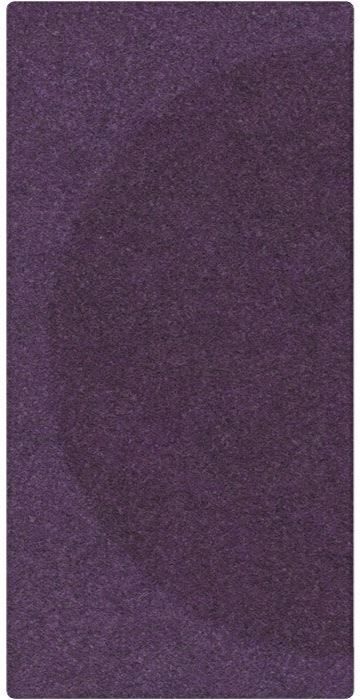

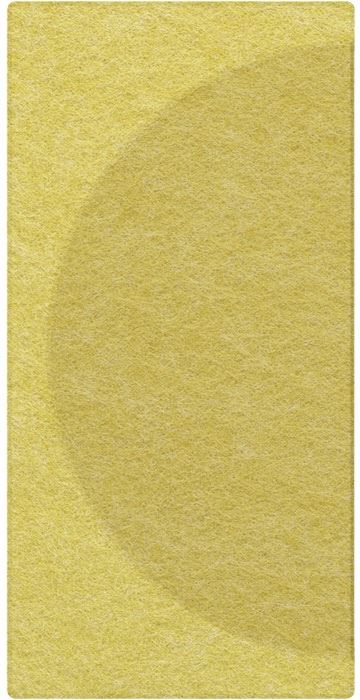

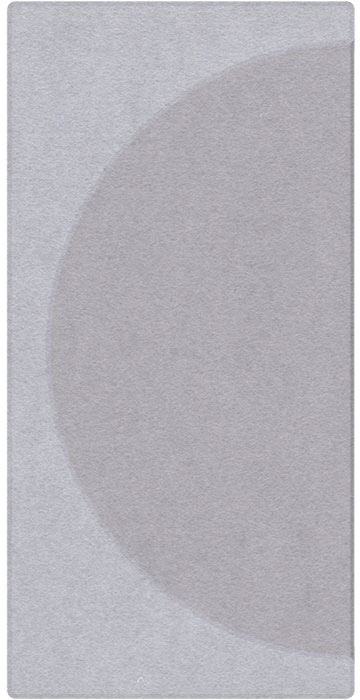

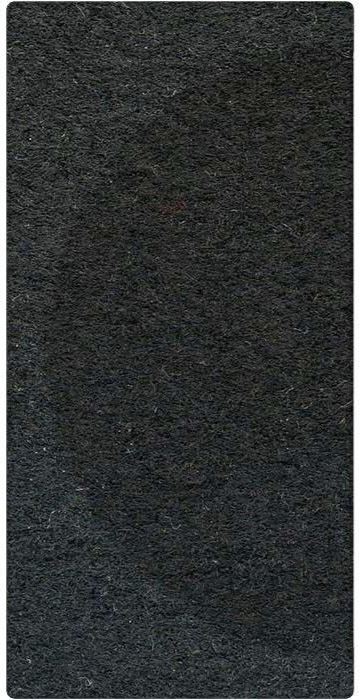

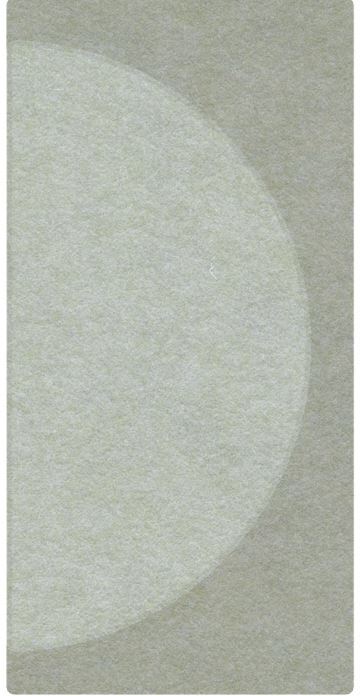

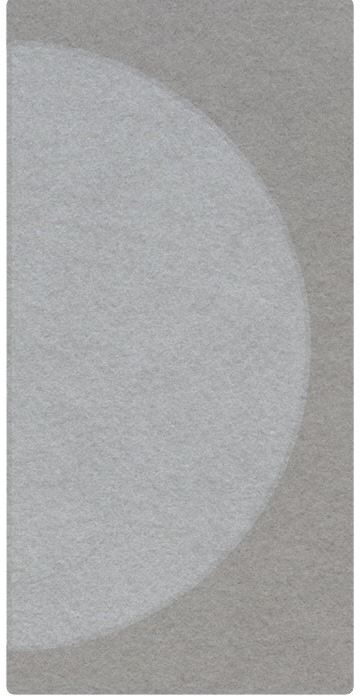

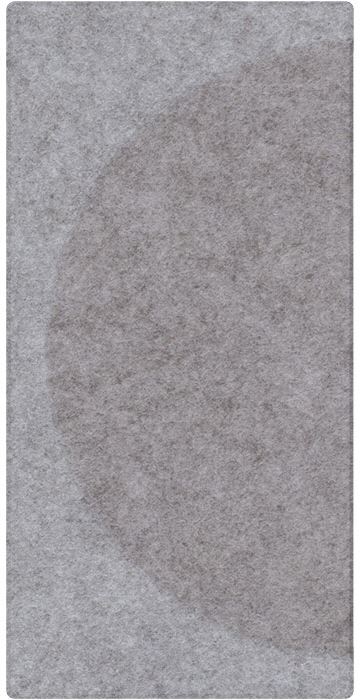

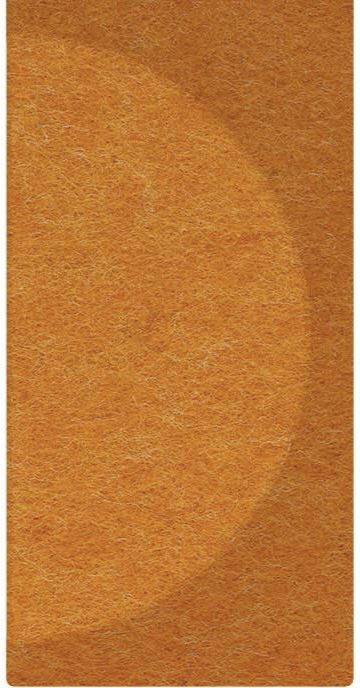

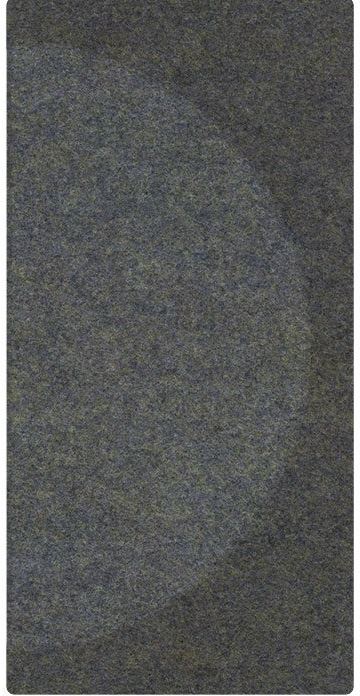

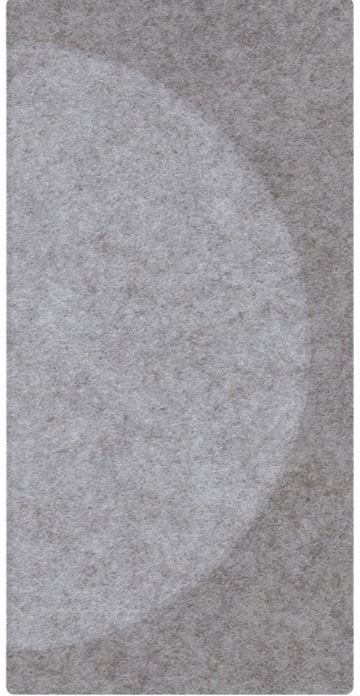

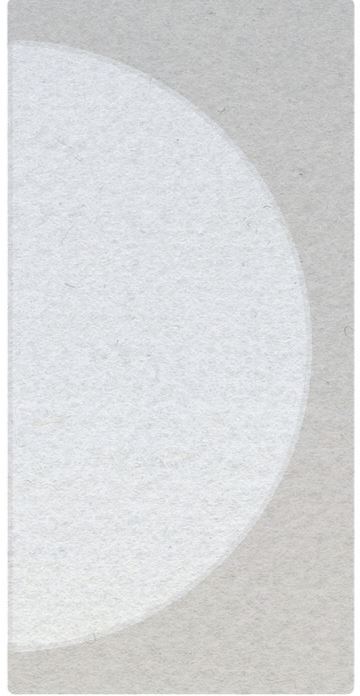

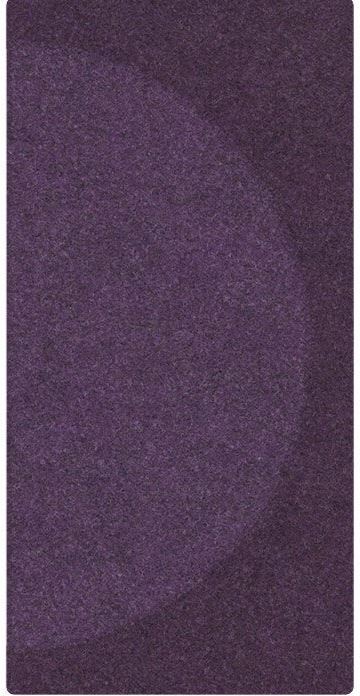

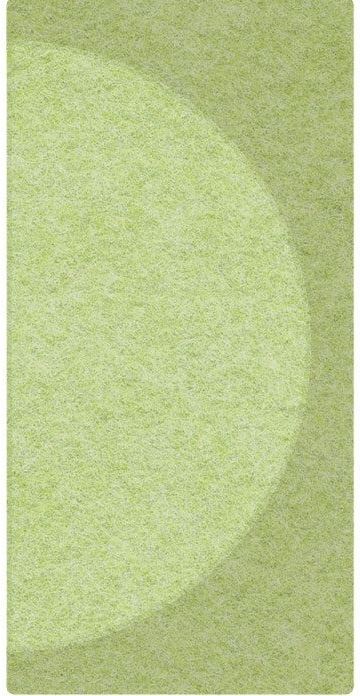

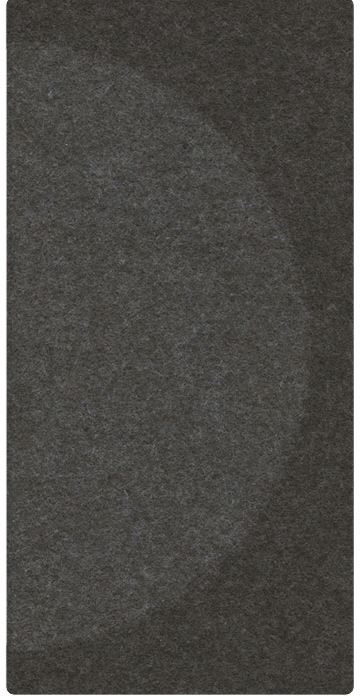

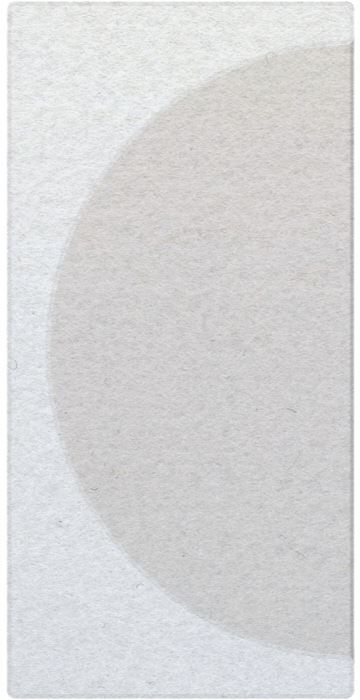

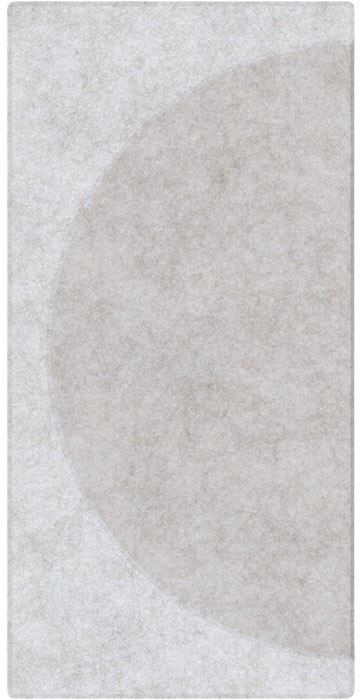

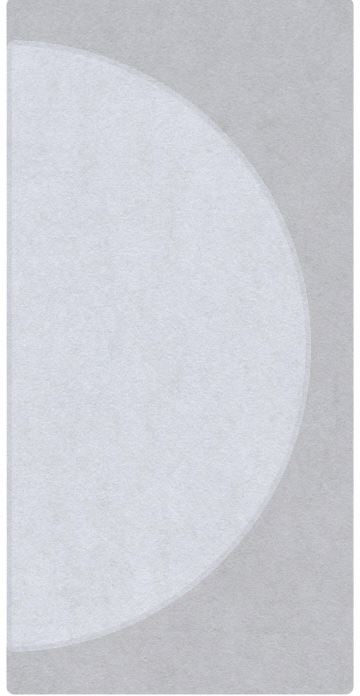

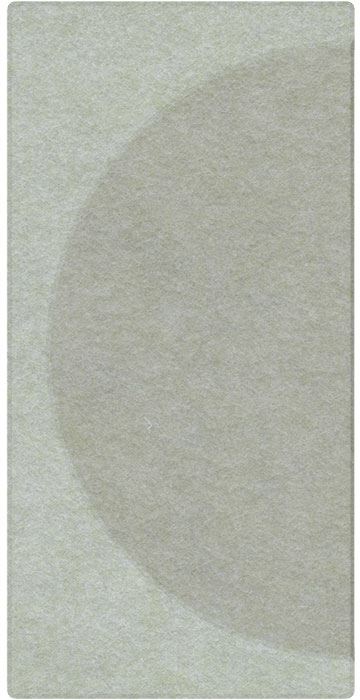

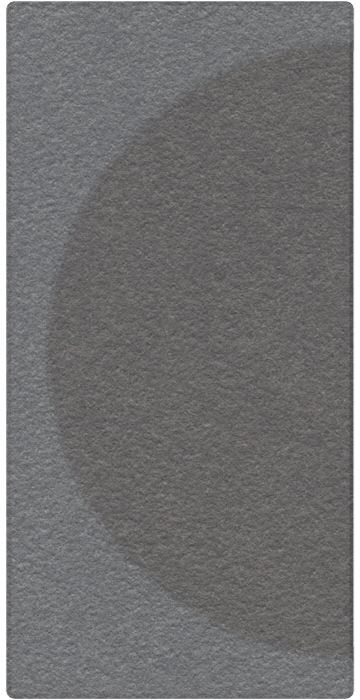

- Colorways below are NOT multi-colored. They are renderings displaying the depth of the peak and valley of each tile.

Performance

- ecoustic® Crescent can be used to reduce the reverberant time of internal/ open plan space. An optional ecoustic® Infill can increase sound absorption. Designed for disassembly; all components can be fixed without the use of adhesives.
- ecoustic® Crescent Tile is ASTM E84 Class B when Infill is used
- ecoustic® Crescent Valley and Plateau tiles create topography via concave and convex planes which can be installed in consistent or opposing designs. Bold illumination enhances the three dimensional relationships.
- Crescent is produced with 100% PET (up to 23% recycled content) with clear ABS wall clips.

Green Star + LEED

- ecoustic® Crescent is Greentag Level A Certified and can achieve maximum Green Star points.
- 23% post consumer content contributes to LEED MR Credit 4 recycled content.


See More


Specifications

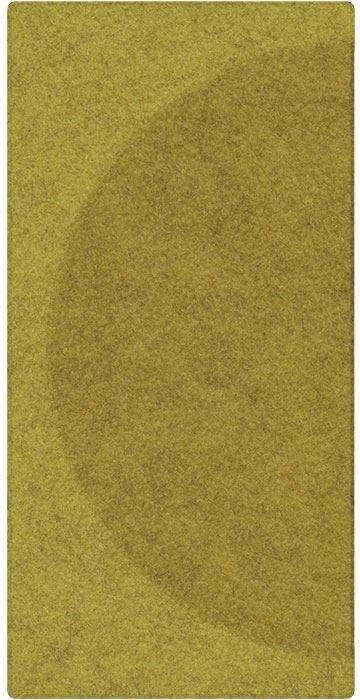

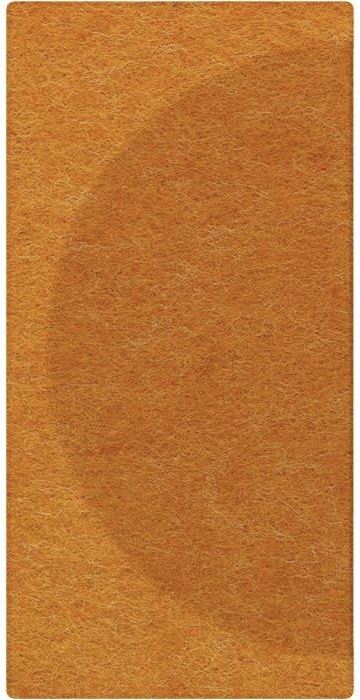

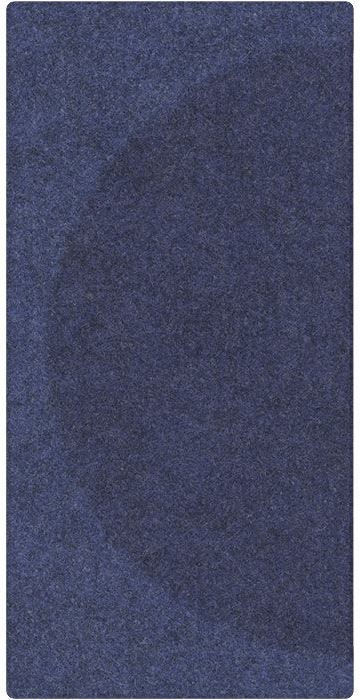

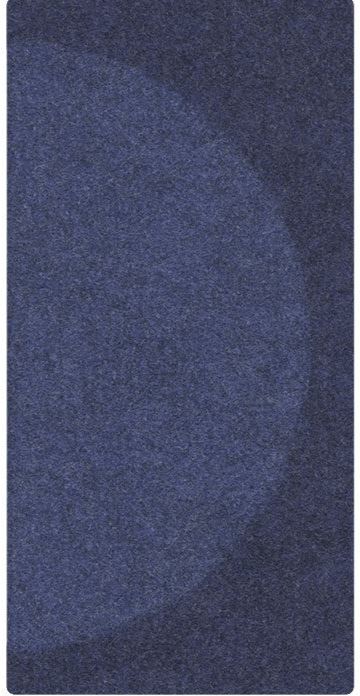

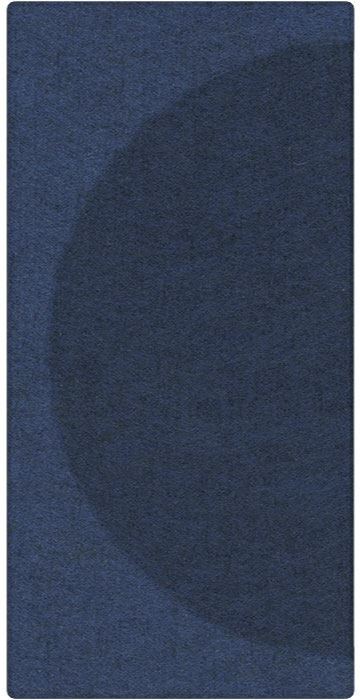

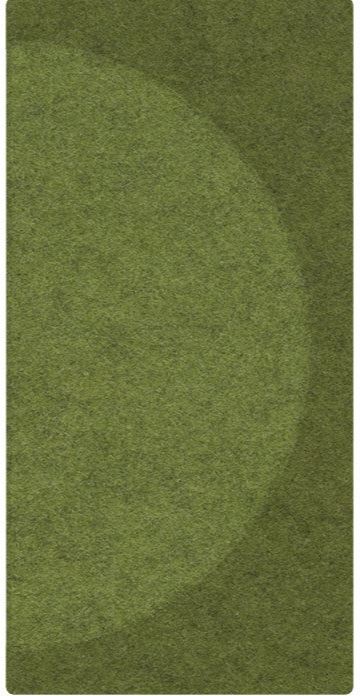

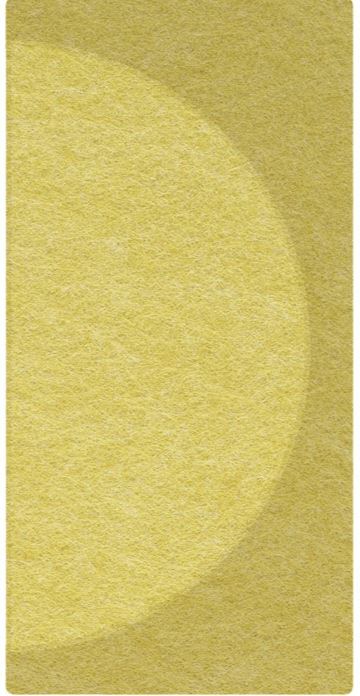

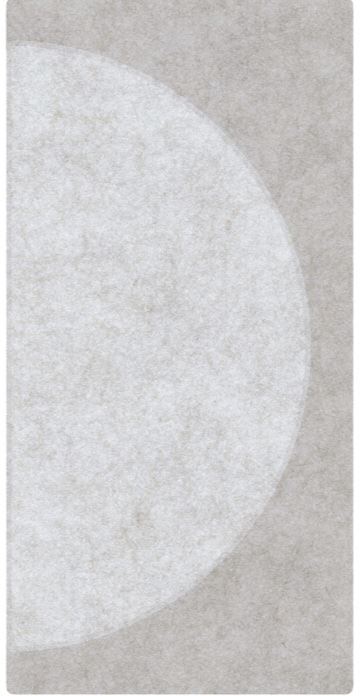

Available Colors
Aqua PlateauAqua ValleyAubergine PlateauAubergine Valley
Baltic PlateauBaltic ValleyBerry PlateauBerry Valley
Cameo PlateauCameo ValleyCaper PlateauCaper Valley
Charcoal PlateauCharcoal ValleyCobalt PlateauCobalt Valley
Cream PlateauCream ValleyDove PlateauDove Valley
Field PlateauField ValleyFossil PlateauFossil Valley
Fresco PlateauFresco ValleyGreen PlateauGreen Valley
Indigo PlateauIndigo ValleyJet PlateauJet Valley
Lemon PlateauLemon ValleyLight Grey PlateauLight Grey Valley
Lime PlateauLime ValleyNatural PlateauNatural Valley
Nautical PlateauNautical ValleyOatmeal PlateauOatmeal Valley
Opal PlateauOpal ValleyOrange PlateauOrange Valley
Oyster PlateauOyster ValleyPaprika PlateauPaprika Valley
Pewter PlateauPewter ValleyQuartz PlateauQuartz Valley
Red PlateauRed ValleySky PlateauSky Valley
Spray PlateauSpray ValleyTaupe PlateauTaupe Valley
White PlateauWhite ValleyYellow PlateauYellow Valley
