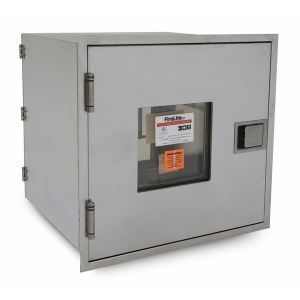

PassThrough;CleanSeam Fire-Rated,Viewing Window,24Wx24Dx24H ID,Flush Wall Mount,304 Stainless Steel
- Available ISO Ratings: ISO 6, ISO 7, ISO 8
- Fire-rated access panel ("clean" side) carries the UL-10B label for 90-minute fire exposure (suitable for 2-hour wall rating) at a max temperature rise of 450°F (232°C) in 30 minutes
- Continuous-seam CleanSeam welds minimize hard-to-clean cracks
- Heavy-duty, double-wall door construction prevents chamber misalignment and door damage when operators apply excessive force to an interlocked door
- Fire-rated 10” x 10” (254 x 254mm) viewing window allows convenient monitoring of pass-through contents
- Recessed pull-to-open latch withstands up to 50 lbs. of force without damaging the catch, interlock, or door frame
- Rugged mechanical interlock prevents cross-contamination by allowing only one door at a time to open
- Spring-action, self-closing door simplify operation, minimize the chance of contamination
- "Dirty" side door is a non-fire-rated door, with static-dissipative PVC window, stainless steel frame, and LiftLatch
- Inside Depth: 24"
- Inside Height: 24"
- Inside Width: 24"
- Concealed Interlock: No
- Continuous-Seam Welds: Yes
- Electropolished: Optional
- HEPA/ULPA Filtration: No
- Material: 304 Stainless Steel
- Model: CleanSeam™ Fire-Rated
- Mounting Position: Flush Wall
- Special Door Configuration: Fire-Rated
- Viewing Window: Yes
- Unit of Measure: EA
- Dimensions, Product: 26" W x 28" D x 26" H
- Dimensions, Shipping: 32" W x 34" D x 42" H
- Marks & Listings: UL, ULC, UL 10B Fire Rated
- Package Type: Crate
- Weight, Product: 50 lb
- Weight, Shipping: 83 lb
Features and Benefits Terra's QuickBuild Program Build your system using in-stock components and accessories. We’ll assemble your system, package and ship your order in 6 business days.
Products Compliant With Your ISO Rating Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
