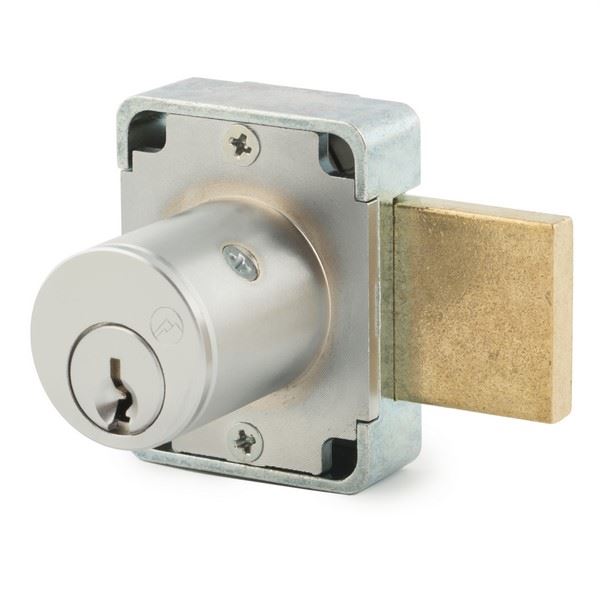

Cabinet Locks - 200B (Weather Resistant)
N Series: National Keyway
Deadbolt drawer lock
WEATHER RESISTANT: Includes weather resistant components. Suitable for undercover outdoor areas.
Easily rekeyable via set screw cylinder release mechanism
For standard locks see 200DW.
For MRI locks see 200M.
Solid brass pin tumbler cylinder drilled for 5 pins
(E07041) ANSI/BHMA Grade 1
Barrel lengths: 15/16", 1-3/8" or 1-5/8" (specify barrel length when ordering)
Barrel diameter: 7/8"
Standard function: locks are non-handed with key removable in the locked and unlocked position.
Optional key-retaining* function: Specify 200BKV for vertical-hand or 200BKI for inverted hand. NOTE: Specify vertical hand or inverted hand for key-retaining function only. See key-retaining chart.
Optional extended bolt - Specify -LB option
26D, US4, 10B or US19 finish (US19 not available on 1-5/8")
Includes angle strike 12-3
Packed 10 per box
US Patent Nos: 4,899,563; 4,920,774
*Key-retaining = key removable in locked position only.
