Small Pin Tumbler Cabinet Locks

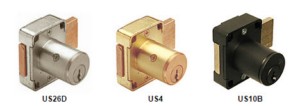

Small Pin Tumbler Cabinet Locks

General Features:

  • Cabinet lock - deadbolt door lock
  • Easily rekeyable via set screw cylinder release mechanism
  • Solid brass pin tumbler cylinder drilled for 5 pins
  • ANSI/BHMA No. E07121/E07122
  • Barrel lengths: 15/16" or 1-3/8" specify barrel length when ordering
  • Barrel diameter: 7/8"
  • Standard function: locks are non-handed with key removable in the locked and unlocked position.
  • Optional key-retaining* function available. Specify 100KR for right-hand or 100KL for left hand. NOTE: Specify Right-hand or Left-hand for key-retaining function only.
  • 26D, US4 or 10B finish (note: 10B not available on 1-3/8")
  • Includes 56-1 bar strike
  • Packed 10 per box
  • US Patent Nos: 4,899,563; 4,920,774
  • *Key-retaining = key removable in locked position only.

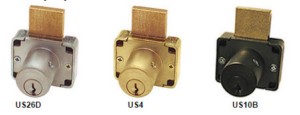

Small Pin Tumbler Cabinet Locks

General Features:

  • 200DW Cabinet lock - deadbolt drawer lock
  • Easily rekeyable via set screw cylinder release mechanism
  • Solid brass pin tumbler cylinder drilled for 5 pins
  • ANSI/BHMA No. E07041/E07042
  • Barrel lengths: 15/16", 1-3/8" or 1-5/8" (see below). Specify barrel length when ordering
  • Barrel diameter: 7/8"
  • Standard function: locks are non-handed with key removable in the locked and unlocked position.
  • Optional key-retaining* function available. Specify 200KV for vertical hand or 200KI for inverted hand. NOTE: Specify Vertical-hand or Inverted-hand for key-retaining function only.
  • 26D, US4 or 10B finish (10B not available on 1-5/8" barrel)
  • Includes 12-3 angle strike
  • Packed 10 per box
  • US Patent Nos: 4,899,563; 4,920,774
  • 1-5/8" barrel length for 3/4" x 3/4" drawer construction

*Key-retaining = key removable in locked position only.

Testing:

Passed ANSI/BHMA A156.11 Grade 1 cycle testing. Withstood in excess of 40,000 cycles with no damage. All other requirements of ANSI/BHMA A156.11, no less than a Grade 2 performance was attained
