The Solution for Hard-to-Insulate Areas

Monoglass® combines soft glass fibers and polymer adhesive to create a non-combustible, non-toxic, insulation that can be quickly spray applied to virtually any surface or configuration.


Category: acoustic control products | commercial insulation | fire-resistant acoustic insulation...

MasterFormat: Thermal Protection | Thermal Insulation | Sprayed Insulation...



Monoglass® Spray-On Insulation
#922 - 1200 West 73rd Avenue
Vancouver, BC V6P 6G5
Tel: (888) 777-2966
Fax: (604) 261-1342

sales@monoglass.com

https://www.monoglass.com

Request More Info

DOWNLOADS

Related Products

Overview


Monoglass Spray-On Insulation

The Solution for Hard-to-Insulate Areas

Monoglass® combines soft glass fibers and polymer adhesive to create a non-combustible, non-toxic, insulation that can be quickly spray applied to virtually any surface or configuration. With an R-value of 4.00/inch, installations of R-20 overhead, or R-28 on vertical surfaces can be applied quickly and easily in one pass without costly, slow layering or mechanical support.

Monoglass is applied by trained applicators using approved equipment, ensuring quality control and consistency.

  • Non-combustible Class 1 building material
  • 0 Flame Spread / 0 Smoke Development
  • Can be applied over fireproofing materials to add thermal/acoustic insulation
  • Inorganic fiberglass insulation won't support mold growth
  • Minimum 25% re-cycled content add to LEED credits
  • Provides R-4.00 / inch thermal resistance
  • Can also be used as an effective acoustic insulation, providing NRC .95 with just 2 inches
  • Reduces sound transmission between spaces
  • Can be applied on horizontal surfaces up to 5" thick without mechanical support, providing R-20
  • Can be applied on vertical surfaces up to 7" thick without mechanical support, providing R-28
  • Quick, one pass application with no layering required.

Acoustic Treatment Noise control within a space

Monoglass® Spray-On provides aesthetics and excellent reverberation control in:

  • Night clubs
  • Television and film studios
  • Auditoriums
  • Gymnasiums & sport facilities
  • Theaters
  • Factories and machine shops
  • Restaurants
  • Offices and retail shops

Monoglass Spray-On's low compressive strength glass fiber produces noise reduction coefficients greater than many other insulations. This capability reduces airborne noise transmitted through the structure from external sources and provides superb absorption of internal airborne sound.

Project Profile Wembley Indoor Sport Stadium

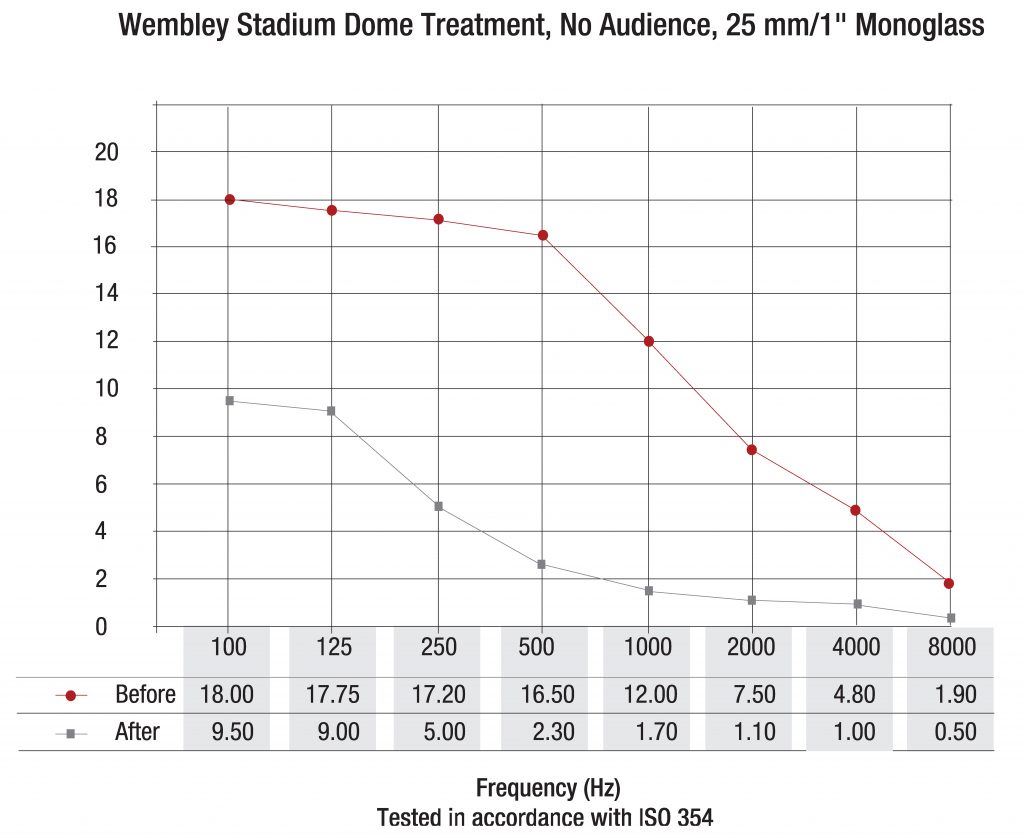

Noise reverberation time can be greatly reduced with a minimal application of Monoglass, as demonstrated in the Wembley Indoor Sport Stadium, Johannesburg, South Africa. Treated with only 1" / 25 mm of Monoglass, the graph (below) depicts the reverberation times with 0% occupancy measured before and after treatment. This shows a considerable reduction in reverberation time over the entire frequency range, which resulted in major improvements in speech intelligibility.

Before treatment, speech conversations more than 6½ feet / 2 meters was very difficult. After treatment, even with the hall empty (no audience), conversation can now be conducted without any special effort.


See More


Specifications

Monoglass Spray-On Insulation
Monoglass Spray-On Insulation has been tested to the following test standard.
Test StandardTestRequirementResult
Thermal ResistanceASTM C-518Report ValueRSI = 28.12 m*K/W
R = 4.00 F*ft2*hr/BTU inch
Thermal ConductanceASTM C-518Report ValueKSI = 0.036 W/(m*k)
K = 0.25 BTU*inch/(ft*hr*F)

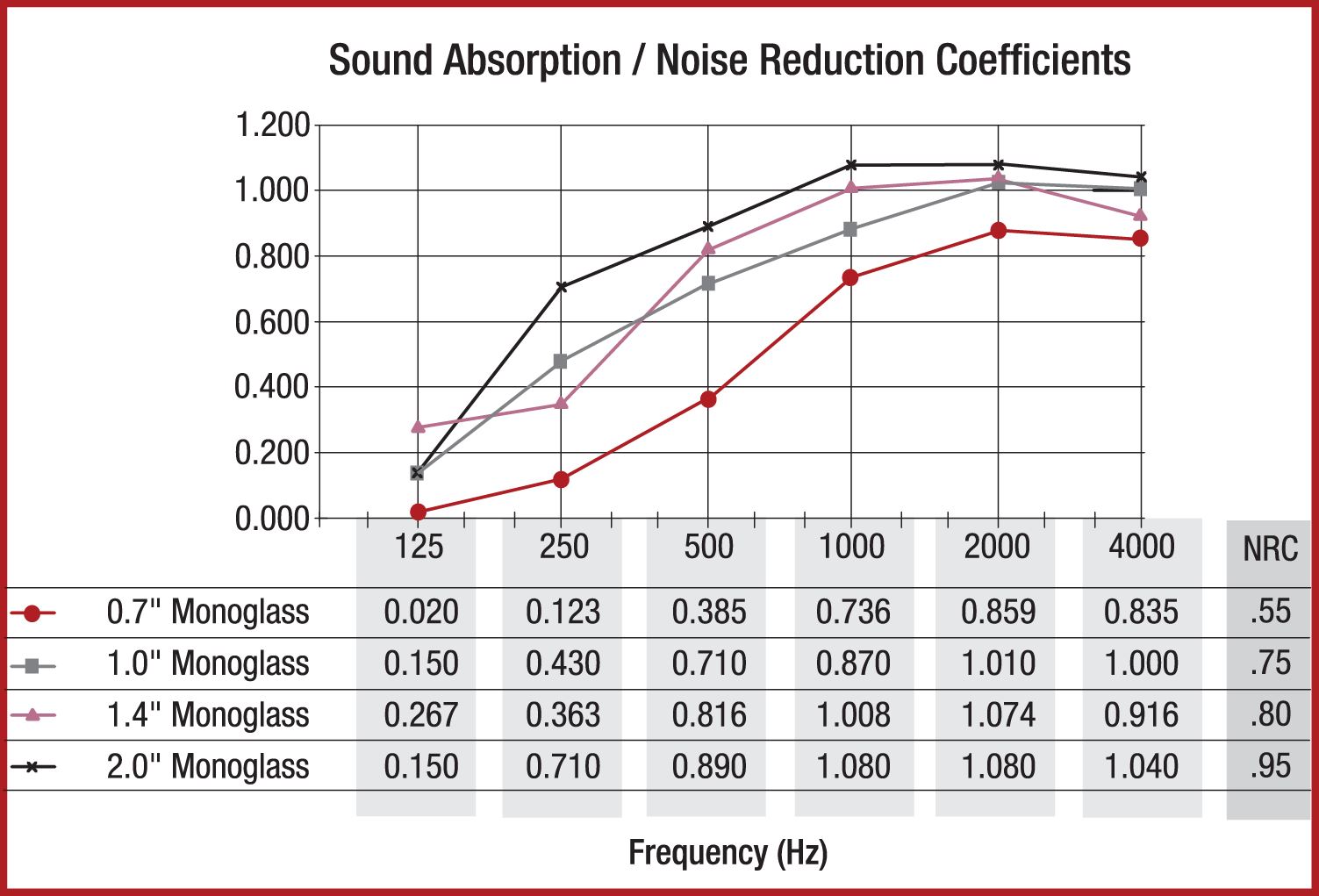

Noise Reduction CoefficientASTM C-423/ISO 354Report ValueNRC 0.55 @ 0.7”/17mm
NRC 0.75 @ 1”/25mm
NRC 0.80 @ 1.4”/35mm
NRC 0.95 @ 2”/50mm
Non-CombustibilityCAN S114, ASTM E-136Non-CombustibleNon-Combustible
Surface Burning CharacteristicsASTM E-84
CAN S102
Flame Spread < 25
Smoke Developed < 50
Flame Spread = 0
Smoke Developed = 0
Smolder ResistanceULC-C723(S)Mass Loss < 5.0%Mass Loss 0.37%
Air ErosionASTM E-859Report ValueNo Weight Loss
Wind Tunnel TestASTM D3161No Detectable DamageASTM D3161
Fungal Bacterial ResistanceASTM G-21 & MIL STD810FNo Growth of FungiNo Growth of Fungi or Bacteria
