Overview


DRS Horizontal Rail System

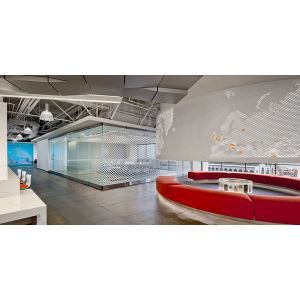

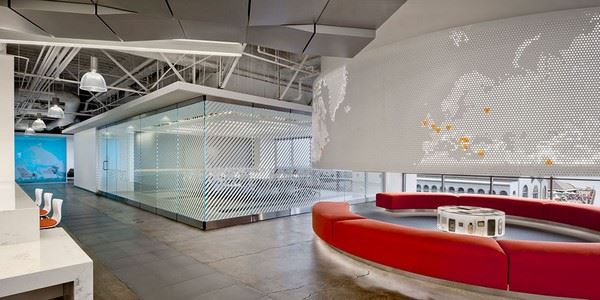

This Glass Wall System offers the beauty of uninterrupted glass, while being housed in a design that delivers smooth operation and rock solid stability.

DRS

The DRS system offers dry glaze sidelite rails to match door profiles, plus a complete range of bottom rails to meet ADA requirements. This system is available with either a sliding panel closure or a pivot panel closure. Optional floor closer and handles allow a pivot panel closure to be used as a pass door. The DRS design allows for snap-on covers, as well as on-site size adjustability and glass replacement.


Advantages of Horizontal Rail Systems:
  • Top and bottom rails for panel stability
  • No vertical trim creates a clean frontage with no visual interruptions
  • System of choice for applications with complex layouts or needing remote pocket storage
  • Smart Track™ suspension system simplifies setup and storage
  • 2-year warranty on all systems
  • Straight line, angled or circular configurations
  • Full wall panels with corner and angled elements
  • Single and double pass doors available
  • All working parts are integrated into the profiles, creating a seamless look
  • Lightweight for ease of operation


See More


Specifications

DRS
ModelDRS
Rail Height & Design3.62" (92 mm) Square Bottom & Top
3.62" (92 mm) Tapered Bottom & Top
6" (152 mm) Square Bottom & 3.62" (92 mm) Square Top
10" (254 mm) Square Bottom & 3.62" (92 mm) Square Top
OperationSingle Panel Manual
Rail Finish OptionsClear Anodized, Dark Bronze Anodized, Black Anodized, Champagne, Satin Bronze, Satin Brass, Satin Stainless, Polished Bronze, Polished Brass, Polished Stainless, Powder Coat Std RAL
Glass Thickness3/8" (10 mm) or
1/2" (13 mm)
Standard GlassClear, Tempered
Glass OptionsLow Iron, Frosted, Etched, Silk Screen, Applique
Maximum Panel Width4' (1219 mm)
Maximum Height10' (3048 mm)
Maximum Panel Weight330 lbs. (150 kg)
Track Options#17G, G150
