Seal-Tite Industrial Gutter IG-1 Version

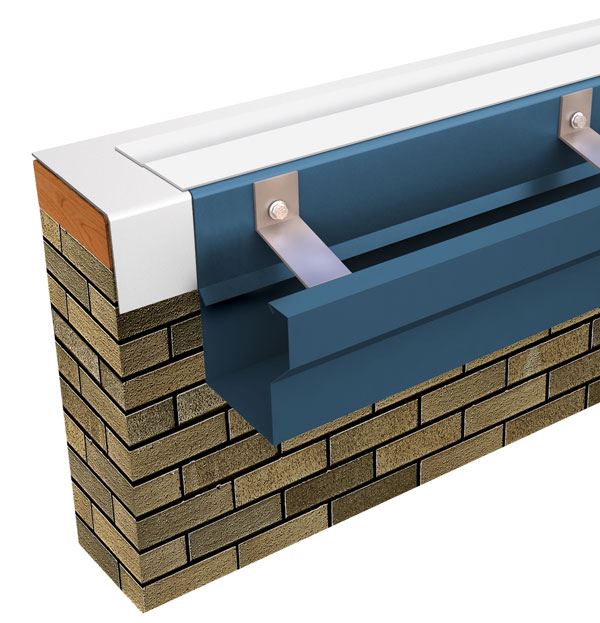

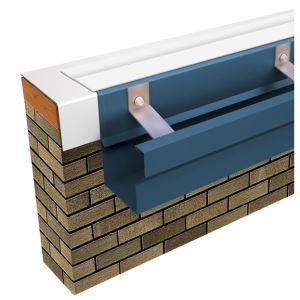

Seal-Tite Gutters offer easy installation, outstanding performance and an attractive appearance. They feature a unique, heavy aluminum gutter strap design that eliminates the need for drilling and riveting. The free-floating, hook-in strap allows for full thermal movement of the gutter. Plus, they are FM approved. Offered with an optional roof flange or slotted drain bars for ballast retention, Seal-Tite Gutters offer maximum roof drainage.
Features / Benefits
Warranty: The 20 Year, 120 mph Seal-Tite Gutter System Wind Warranty is available on orders to meet a project's specification. It provides a maximum of 20 years, 120 mph coverage for the repair or replacement of any portion of the roof edge system that has failed due to a defect in Metal-Era supplied materials.
Testing:
- Factory Mutual 1-90 approved for wind uplift protection.
Available Materials: Its unique design allows for it to be manufactured in 24 ga. steel, and .040", .050" and .063" aluminum.
Efficient Design: Accommodates the drainage of large roof areas. Its heavy gauge gutter straps securely support larger volumes of water, as well as extreme snow and icing conditions and is manufactured to rigid tolerances and furnished per required drainage capacity/size. Adapts easily to optional drainage bars or flow through gravel stops.
The pre-punch holes in the gutter eliminate the need for drilling; making for easier installation which accommodates the thermal expansion/contraction of the gutter
It is provided in 12'-0" lengths with pre-punched holes for quicker installation and lower labor costs. The fastening holes are slotted to allow for proper thermal movement of the materials and ensure correct fastener placement and spacing.
Colors: Choose among a wide range of standard colors and finishes that meet your job requirements. A 30 year Kynar 500® finish warranty is included on coil-coated standard colors. Custom post-coated Kynar 500® colors are available with an included 10 year Kynar 500® finish warranty or a 20 year Kynar 500® finish warranty is available upon request.
Anodized finishes are also available and come with a 5 year warranty (no warranty available for coil anodized finishing. Post-coat/Class 1 Batch Anodized is available with a 5 Year warranty with an option to increase to a 10 Year warranty for an upcharge).
Custom Capabilities: Specially fabricated products are available to meet the unique needs of each project.
Accessories: Factory fabricated miters provide a cleaner, more aesthetically pleasing appearance. This eliminates the need for field fabrication, providing time and labor savings.
Also Included: All gutter straps are included and will arrive to the job site with the product.
