Overview


Decorative Resinous Flooring Systems - Quartz ESD System

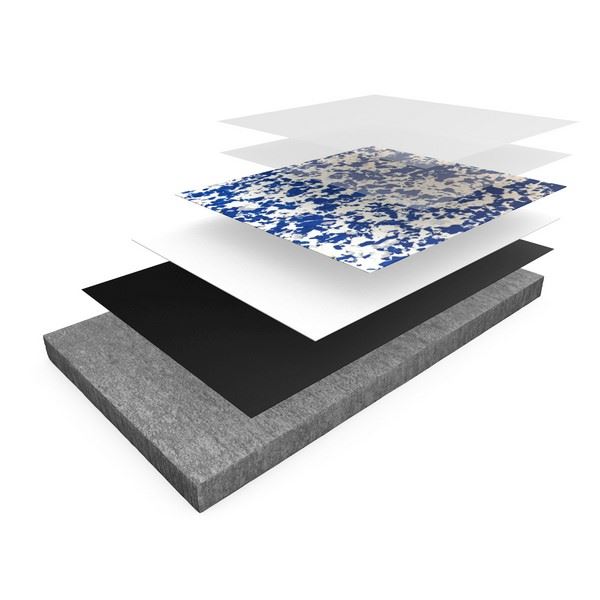

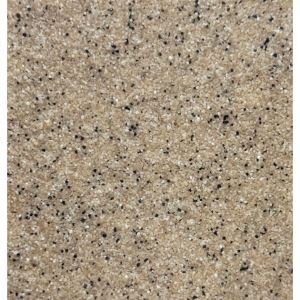

KEY QUARTZ ESD is a 65 mil to 80 mil Decorative Epoxy Quartz Floor System showing excellent static control properties. The durable Key Quartz ESD has a textured finish for sound footing. The decorative quartz aggregates are available in a series of pre-blended patterns combined with conductive elements. Key Quartz ESD Systems provide a decorative surface for areas such as electronic parts assembly, server assembly, pharmaceutical processing, and static control applications which require excellent abrasion and stain resistance. Key Quartz ESD is comprised of Key #502 Epoxy Primer, Key #520 ESD/Conductive Body Coat, Decorative Quartz granules with conductive elements and clear UV resistant epoxy and urethane finish coats.

Advantages

  • Good chemical and stain resistance

  • Decorative appearance

  • Meets USGBC LEED criteria for low VOC

  • Gloss finish

  • Low maintenance

  • Good abrasion resistance

  • Body Voltage Generation (BVG) below 100 volts conforming with ANSI/ESD S20.20

  • Dissipates a 5000 volt charge to zero in less than 0.1 seconds @ 72 degrees and 12% RH

Typical Uses

  • Electronic parts assembly areas

  • Server assembly areas

  • Pharmaceutical processing areas

  • Numerous other uses - consult a Representative
