Overview


Manual Shades

MechoShades®

The chain-driven roller screens of MechoSystems are part of the most comprehensive manual solar protection. We provide a full range of hardware options for manual shading, including:
– Multi-band operation with a single chain drive.
– SlimLine® brackets for shades in tight spaces.
– The Mecho®/5 operating system for heavy-duty shades.
Our Lifetime Limited Warranty provides 100% replacement with no depreciation over the life of the warranty.


See More


Specifications

Ecoveil

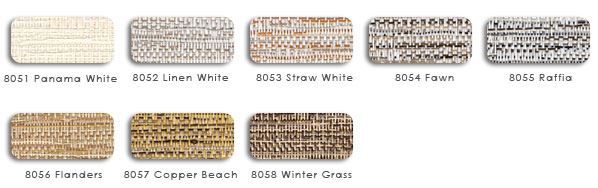

EcoVeil Naturals 8050 Series (1-2% open)
  • Eight colors
  • 100% TPO (thermoplastic olefin)
  • 64-66 in. (163-168cm) wide
  • Pass NFPA 701-2004

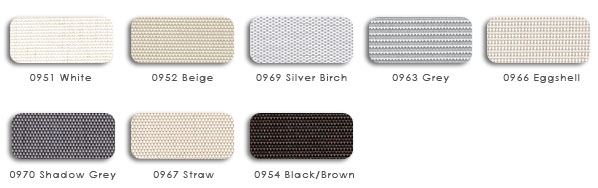

EcoVeil Screens 0950 Series (1% open)

  • Eight colors
  • 100% TPO (thermoplastic olefin)
  • 64-66 in. (163-168cm) wide
  • Pass NFPA 701-2004

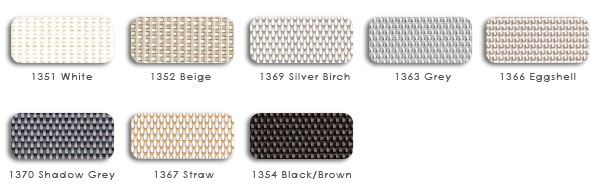

EcoVeil Screens 1350 Series (5% open)
  • Eight colors
  • 100% TPO (thermoplastic olefin)
  • 100 in. (254cm) wide
  • Pass NFPA 701-2004
EcoVeil Screens 0950 Series (1% open)

  • Eight colors
  • 100% TPO (thermoplastic olefin)
  • 64-66 in. (163-168cm) wide
  • Pass NFPA 701-2004
ThermoVeil for A/V

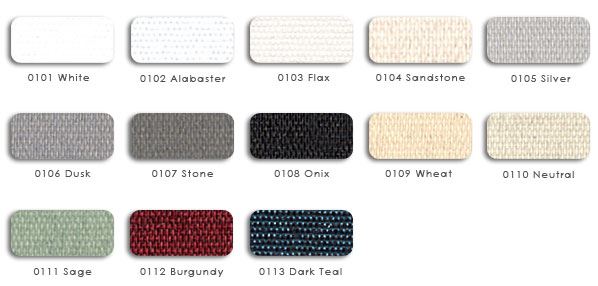

Equinox 0100 Series
  • Appropriate for multi-media are functions
  • Provides thermal insulation and opacity at the window wall
  • Washable surface, flame retardant and fade resistant
  • Content: 53% fiberglass, 45% acrylic, 2% poly finish
  • Transparency: Opaque
  • Stocked in 100″ (2540mm) width
MirroFilm 0600 Series

  • Transparent, light filtering and heat insulating material
  • Cen be used on DualShades
  • Washable surface and fade resistant
  • Transparency: Transparent film
  • Stocked in 60″ (1524mm) and 72″ (1829mm) widths

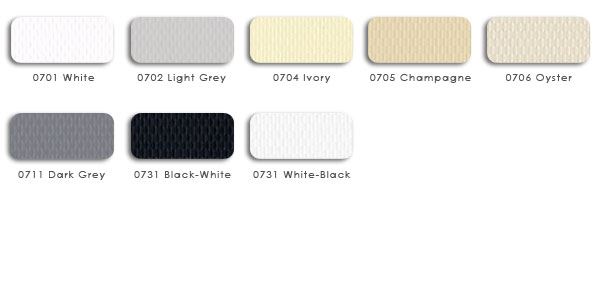

Blackout 0700 Series
  • Cost effective
  • Appropriate for multi-media are functions
  • Provides insulation and opacity at the window wall
  • Washable surface, flame retardant and fade resistant
  • Content: 79% vinyl, 21% polyseter core
  • Transparency: Opaque
  • Stocked in 72″ (1829mm) width
ThermoVeil Vertical and Basket Weaves

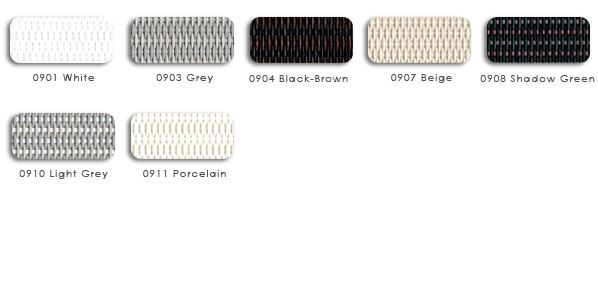

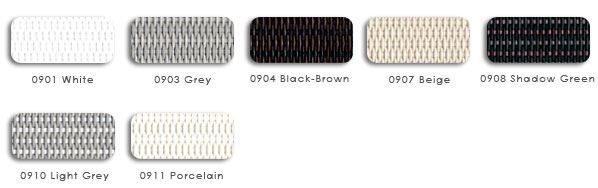

Transulcent Vertical Weave 0900 Series

  • Content: 79% vinyl, 21% polyseter core
  • Openness factor: ± 0-1%
  • Stocked in 72″ (1829mm) width
  • Color will affect surface brightness and view
  • Contribute towards a healing environment by helping patients take advantage of the therapeutic natural light and views
  • Full-size mockups recommended (slight color change will occur due to changes)
  • Offered and available in a wide range of colors

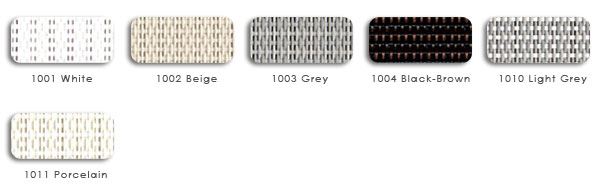

Dense Vertical Weave 1000 Series
  • 2-3% openness factor
  • Washable, flame retardant and fade resistant
  • Offered and available in a wide range of colors
  • Contribute towards a healing environment by helping patients take advantage of the therapeutic natural lights and views
  • Content: 79% vinyl, 21% polyseter core
  • Openness factor: ± 2-3%
  • Stocked in 72″ (1829mm) and 96″ (2438mm) widths
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)

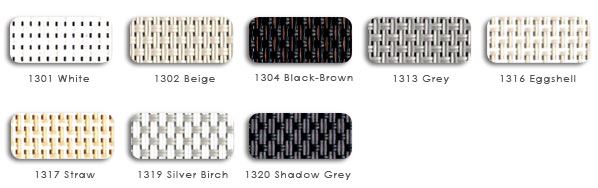

Basket Weave 1300 Series

  • Offered and available in a wide range of colors
  • Provides a uniform scrim effect at the window wall with appropriate densities for sun control
  • Content: 79% vinyl, 21% polyseter core
  • UV Test 200 sun-fade hours: None
  • 500 sun-fade hours: 5%
  • Openness factor: ± 5%
  • All colors stocked in 63″ (1600mm) and 96″ (2438mm) widths
  • 126″ (3200mm) width. Stocked: 1301,1302, 1304, 1313, 1316 and 1320
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)
Open Vertical Weave 1800 Series
  • Washable, flame retardant and fade resistant
  • Offered in a wide range of colors
  • Content: 79% vinyl, 21% polyseter core
  • Openness Factor: ±15%
  • Stocked in 63″ (1600mm) widths
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)

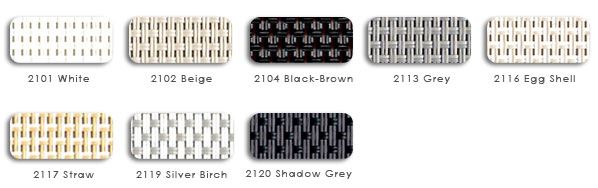

Open Basket Weave 2100 Series

  • Offered in a wide range of colors
  • Provides a uniform scrim effect at the window wall with appropriate densities for sun control
  • Content: 79% vinyl, 21% polyseter core
  • Openness Factor: ±10%
  • Stocked in 63″ (1600mm) and 96″ (2438mm) widths
  • 126″ (3200mm) width available on special order
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)
EuroVeil / EuroTwill

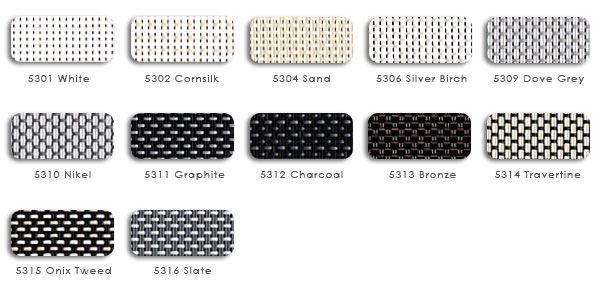

EuroVeil 5300 Series
  • Offered in a wide range of colors
  • Provides a uniform scrim effect at the window wall with appropriate densities for sun control
  • Content: 85% vinyl, 15% polyseter core
  • Deterioration (200 sun-fade hours): None
  • Openness Factor: ± 5-6%
  • Stocked in 63″ (1600mm) and 96″ (2438mm) widths
  • Color will dramatically affect comfort factor and visual tasks
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)
EuroVeil 6000 Series

  • Offered in a wide range of colors
  • Provides a uniform scrim effect at the window wall with appropriate densities for sun control
  • Content: 79% vinyl, 21% polyseter core
  • Openness Factor: ±10%
  • Stocked in 63″ (1600mm) and 96″ (2438mm) widths
  • 126″ (3200mm) width available on special order
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)
ThermoVeil for Healthcare

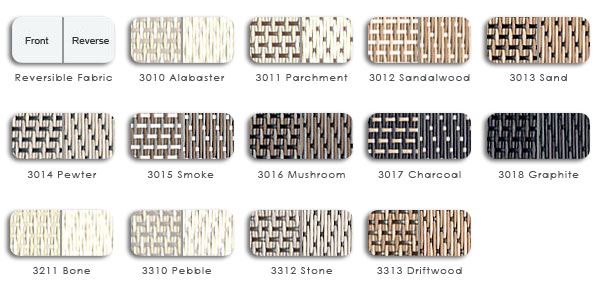

Satin and Diamond Twill 3000 Series
  • Minimum yards 250 Linear Yards ±10% or 250 Linear Yards +20%
  • Content: 79% vinyl, 21% polyseter core
  • Openness Factor: ± 1-2%
  • Stocked in 72″ (1829mm) and 96″ (2438mm) widths
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)
Translucent Vertical Weave 0900 Series

  • Features privacy screen cloth which allows light in from the outside while maintaining privacy day and night
  • Contribute towards a healing environment by helping patients take advantage of the therapeutic natural light and views
  • Available in a wide range of colors
  • Content: 79% vinyl, 21% polyseter core
  • Openness Factor: ± 0-1%
  • Stocked in 72″ (1829mm)
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)
