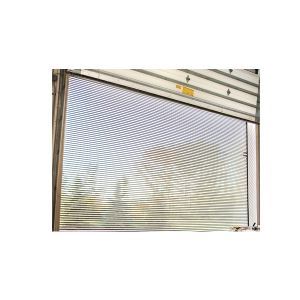

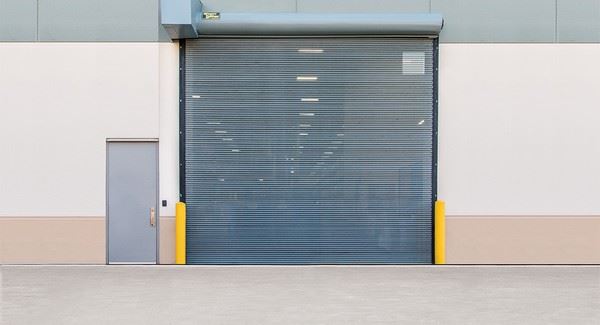

Model 900 Rolling Service Door

Models 900 and 926 Rolling Steel Service Doors are economical, secure solutions to protect facility openings. These rolling steel service doors are composed of flat-faced slats that provide a natural watershed, helping to reduce corrosion. Slats are designed with free-acting interlocking joints that permit easy articulation when the door coils. They are popular in virtually any interior and exterior commercial or industrial applications where durability and strength are needed for even the most critical projects.

Ideal Applications Include:

Warehouse and Industrial Facilities - Manufacturing Facilities - Food and Beverage Facilities - Parking Garages - Public and Government Facilities - Shipping and Receiving Docks -

Benefits

High-Quality Design

• The counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils.
• Features a strong double-angle bottom bar that reinforces the lower edge of the curtain against wind pressure and permits varied lock, astragal and safety edge options. It is designed for easy installation and does not require fasteners in the guide openings, so the bottom bar does not interfere with door operation.
• Zinc-plated, cast-iron wind locks add strength and prevent lateral slat movement.
• Designed for easy installation and does not require fasteners protruding into the guide openings, so the bottom bar does not interfere with door operation.

Warranty

• 24-Months Limited Warranty on all product parts and components

Slat Profiles: 900 - 926

• Secur-Vent perforated slats
• Curtain: #2 slat profile 2" curved up to 20-gauge steel; 20 or 22-gauge stainless steel; 18-gauge aluminum #17 slat profile 2" flat up to 20-gauge steel; 20 or 22-gauge stainless steel; 16 ga. extruded aluminum

Vision Options

• 3" flat slat
• Perforated/Fenestrated flat slat
• 6" curved slat
• Open fenestrations
• Vision lites

Guides

• Three angle: galvanized steel, stainless, aluminum, hot dipped galvanized (structural steel angle only)

Hood

• 22-gauge steel
• Square hood

Perimeter Seal Options

• angled guide brush seal
• vinyl guide seal
• exterior lintel weather seal
• interior lintel weather seal
• internal hood baffle
• Rubber hood baffle

Bottom Bar Options

• Double angle
• Extruded aluminum angle
• Structural steel angle (galvanized steel only)
• Sloped

18-ga. and 20-ga. doors are only available in gray

Curtain Finish

• Anodized Aluminum
  • mill, clear or bronze
• Stainless steel #4
• Powdercoat - RAL and custom
• Painted Gray
• Vision lites

Finish Options

• Stainless steel
• Aluminum
• Powder Coat

Hood/Guide/Brackets/Bottom Bar Finish

• Primed Black
• Anodized Aluminum- mill, clear or bronze
• Stainless steel #4
• Powdercoat - RAL and custom
• Galvanized
• Bare galvanized

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
