Model 889 High Speed Metal Door

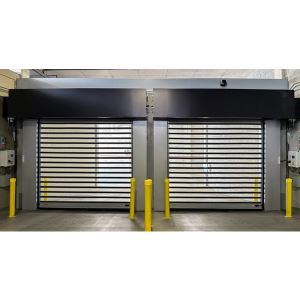

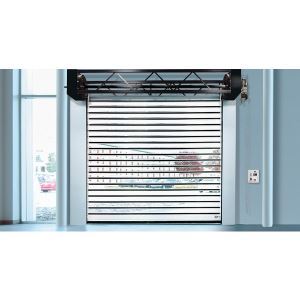

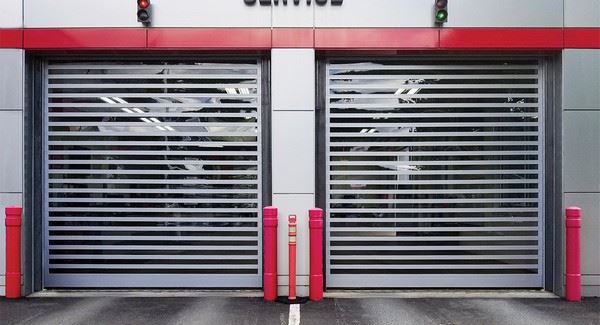

Exterior full vision high speed door, Model 889 ADV-Xtreme, is ideal for applications where aesthetics and visibility are a priority. Constructed with a fully assembled curtain, this door is easy to install and maintain. Model 889 ADV-Xtreme is a full vision high speed metal door that features a patented helical-designed steel head plate that helps prevent metal curtain contact and provides smooth operation. A patented curtain monitoring device ensures the door has a redundant system to monitor the position of the door. The high speed metal door design provides visibility, durability and security.
Ideal Applications Include:
Auto Dealerships - Retail - Manufacturing
Benefits
High Performance Design
- Springless design for over 1 million cycles and requires minimal interruption for maintenance
- Gravity drive system coupled with variable frequency drive eliminates sudden jolts from door start and stop operation
- Direct-mounted gear drive minimizes wear and tear
Durable Construction
- Full-view door with corrosion-resistant aluminum and clear vision, impact-resistant polycarbonate panels
- Steel headplate utilizes high strength, durable rollers to prevent metal curtain contact and provides smooth operation
- Independently tested and capable of withstanding pressure of up to 50 psf
- *Wind load is the ultimate pressure tested at door width of 15'. Wind load* up to 50 psf
Installer Friendly
- Fully-assembled curtain arrives pre-wrapped in headplate and trusses, ready for installation
- Completely hinged guide for easy access and maintenance
- Pre-wired motor connection and plug and play accessories reduces need for licensed electrician
Safety Focused
- Patented integrated curtain monitoring device ensures the door has a redundant system to monitor the position of the door
- Safety light curtain minimizes contact with objects in the doorway
- Monitored wireless reversing edge
Warranty
Square Hood
Vision Options
- Perforated Slat- up to four slats with 24% open area (up to 20' wide)
Slim Guide
- Reduces jamb side room (size limitations may apply)
**Silver powder coat made to mimic anodized aluminum
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
