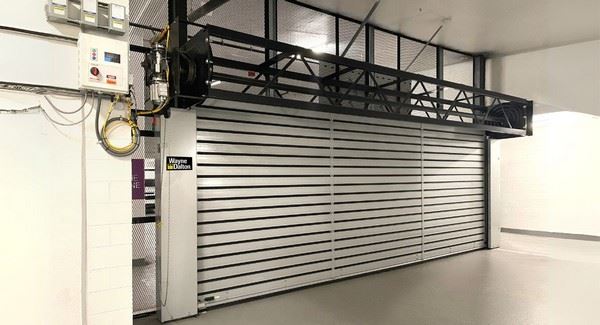

Model 888 High Speed Metal Door
Built tough with power, security, and durability in mind, Model 888 ADV-Xtreme is ideal for applications where security and performance are a priority. This high speed metal door is constructed with dual-walled aluminum that can withstand pressure up to 100 psf*. Model 888 ADV-Xtreme also features a patented helical-designed steel head plate that helps prevent metal curtain contact and provides smooth operation. A patented curtain monitoring device ensures the door has a redundant system to monitor the position of the door. High speed metal doors are designed for quick installation and provide easy access to maintain.
Ideal Applications Include:
Parking Garages - Manufacturing - Auto Dealerships
Benefits
High Performance Design
- Springless design for over 1 million cycles and requires minimal interruption for maintenance
- Gravity drive system coupled with variable frequency drive eliminates sudden jolts from door start and stop operation
- Direct-mounted gear drive minimizes wear and tear
Durable Construction
- Dual-walled, solid aluminum curtain for security and privacy
- Steel headplate utilizes high strength, durable rollers to prevent metal curtain contact and provides smooth operation
Installer Friendly
- Fully-assembled curtain arrives pre-wrapped in headplate and trusses, ready for installation
- Completely hinged guide for easy access and maintenance
- Pre-wired motor connection and plug and play accessories reduces need for licensed electrician
Safety Focused
- Patented integrated curtain monitoring device ensures the door has a redundant system to monitor the position of the door
- Safety light curtain minimizes contact with objects in the doorway
- Monitored wireless reversing edge
Warranty
Square Hood
Vision Options
- Perforated Slat- up to four slats with 24% open area (up to 20' wide)

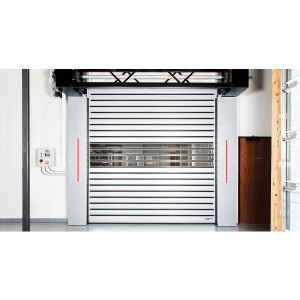

- Vision Slat- up to four slats for vision through the door
- Insulated Slat - enhanced thermal performance
Slim Guide
- Reduces jamb side room (size limitations may apply)
**Silver powder coat made to mimic anodized aluminum.
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
