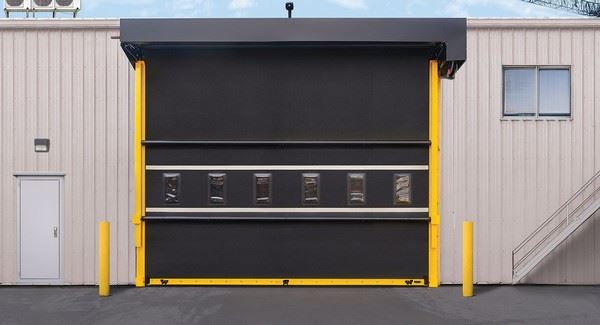

Model 885 High Speed Rubber Door
Model 885 ADV-Xtreme high speed exterior rubber door is made with special reinforced rubber, perfect for large exterior openings or extreme applications. Constructed with 5 layers of NBR rubber and 4 layers of polyester weave, this door can withstand the pressure of up to 27.0 psf. High speed rubber doors are also designed to be low maintenance and include such features for safety as the breakaway impact detection and push button self-repair, along with plug and play wiring. The exterior high speed rubber door is built tough with rugged fabric material for extreme environments.
Ideal Applications Include:
Manufacturing / Heavy Manufacturing - Warehouse - Distribution Facilities - Mininig - Auto and Transit - Parking Garages - Large Openings
Benefits
Rugged Construction
- Multi-layered, reinforced rubber provides added strength without the weight
- Ideal for harsh exterior conditions with a wind load of up to 27.0 psf
- Nitrile butadiene rubber (NBR) provides resistance to petrochemicals for easy cleaning
- Continuous curtain locks on both edges.
High Cycle, Low Maintenance Design
- Springless design requires minimal interruption for maintenance
- Patented breakaway system design with impact detection and push button self-repair
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start/stop
Installer Friendly
- Pre-assembled sub-assemblies for easier installation
- Plug-and-play wiring reduces the need for a licensed electrician
Warranty
- 5-Year Limited Warranty on drive motor and gearbox
- 1-Year Limited Warranty on all other components
- 20" high vision panels spaced evenly across the width of the door
Standard color for guides, brackets, struts and bottom bar is yellow.
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
