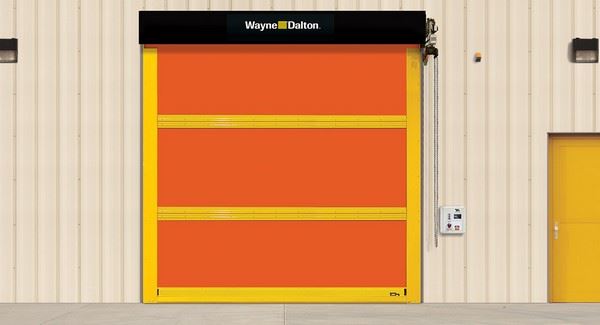

Model 884 High Speed Fabric Door

The heaviest fabric door in the ADV-Xtreme series, Model 884 ADV-Xtreme is a thick high speed fabric door designed for exterior applications where weather elements may be extreme. The patented articulating roller wind strut reduces noise and allows the door to operate under higher wind load. The fabric strutted exterior door is designed to allow for quick panel replacement while reducing curtain deflection under pressure. This door can withstand a pressure of up to 22.0 psf. Model 884 ADV-Xtreme is designed to be low maintenance and includes such features as breakaway impact detection and push button self-repair, along with plug and play wiring. The heavy-duty fabric door struttedexterior is built for maximum strength in high wind pressure regions.

Ideal Applications Include:

Manufacturing / Heavy Manufacturing - Warehouse / Distribution - Large Opening - Mining - Parking Garages - Auto / Transit

Benefits

Performance Under Pressure

• Patented articulating hinged roller wind strut reduces noise and allows the door to operate under pressure
• Strutted design allows for quick panel replacement while reducing curtain deflection under pressure
• Heavy-duty .188" high strength steel guides are ideal for high pressure areas
• A bottom windlock provides additional static pressure resistance

High Performance, Low Maintenance Design

• Springless design requires minimal interruption for maintenance
• Direct-mounted gear drive minimizes wear and tear
• Variable frequency drive eliminates sudden jolts from door start and stop operation
• Patented breakaway system design with impact detection and push button self-repair

Field Repairable

• Hinged guides provide easy access for maintenance

Rugged Fabric Construction

• Ideal for exterior applications
• Rough environmental interior applications

Installer Friendly

• Pre-assembled sub-assemblies for easier installation
• Plug and play wiring reduces the need for a licensed electrician

Warranty

• 5-Year Limited Warranty on drive motor and gearbox
• 1-Year Limited Warranty on all other components

• 20" high vision panels - spaced evenly across the width of the door

Standard color for guides, brackets, struts and bottom bar is yellow.

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
