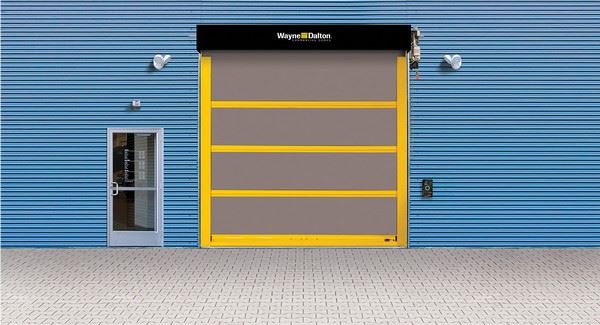

Model 883 High Speed Fabric Door
Made of rugged fabric material, the Model 883 ADV-Xtreme strutted exterior high speed fabric door is designed for applications where a fast-acting exterior door is needed. The strutted design allows for quick section replacement while reducing curtain deflection under pressure. This door can withstand a pressure of up to 19.5 psf. Model 883 ADV-Xtreme strutted exterior high speed fabric door is designed to be low maintenance and includes the breakaway impact detection and push button self-repair, along with plug and play wiring for robust operating and easy troubleshooting.
Ideal Applications Include:
Manufacturing / Heavy Manufacturing - Warehouse - Parking Garages - Auto / Transit - Food and Beverage
Benefits
High Performance, Low Maintenance Design
- Standard hood blocks moisture and debris from impeding door operation
- Springless design requires minimal interruption for maintenance
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start and stop operation
- Patented breakaway system design with impact detection and push button self-repair
Rugged Fabric Construction
- Ideal for exterior applications
Field Repairable
- Hinged guides provide easy access for maintenance
Installer Friendly
- Pre-assembled sub-assemblies for easier installation
- Plug and play wiring reduces the need for a licensed electrician
Excellent Wind Load Protection
- Patented roller windlocks on struts
- Bottom windlocks for pressure protection
Warranty
- 5 Year Limited Warranty on drive motor and gearbox
- 1 Year Limited Warranty on all other components
Finish Options
- Powder Coat
- Hardened Powder Coat*
- G-90 Galvanized
- Anodized Aluminum
Standard color for guides, brackets, struts and bottom bar is yellow.
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
