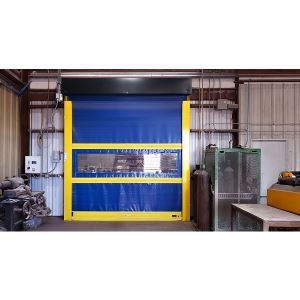

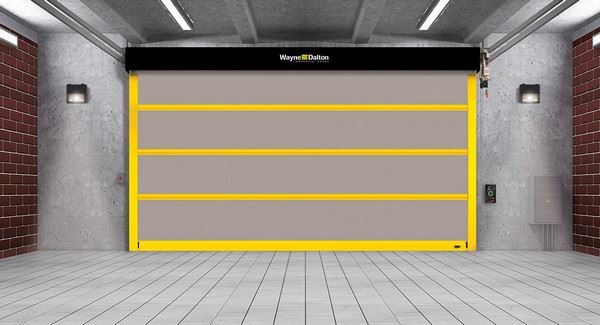

Model 882 High Speed Fabric Door
Model 882 ADV-Xtreme strutted interior high speed fabric door is designed to be low-maintenance and is a durable door that is built to last. This high-performance door is for interior or exterior applications featuring breakaway impact detection and push button self-repair, along with plug and play wiring. Model 882 ADV-Xtreme’s strutted design allows for quick section replacement while reducing curtain deflection under pressure and can withstand a pressure of up to 4.0 psf.
Ideal Applications Include:
Manufacturing / Heavy Manufacturing - Warehouse - Distribution Facilities - Food & Beverage - Cold Storage - Auto / Transit
Benefits
High Performance, Low Maintenance Design
- The strutted design allows for quick section replacement while reducing curtain deflection under pressure
- Springless design requires minimal interruption for maintenance
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start and stop operation
- Patented breakaway system design with impact detection and push button self-repair
- For exterior use with optional fabric upgrade
Field Repairable
- Hinged guides provide easy access for maintenance
Installer Friendly
- Pre-assembled sub-assemblies for easier installation
- Plug-and-play wiring reduces the need for a licensed electrician
Warranty
- 5-year Limited Warranty on drive motor and gearbox
- 1-year Limited Warranty on all other components
- 20" high vision panels spaced evenly across the width of the door
- Sloped hood and non-drive end cover offers protection from debris and moisture
- Light curtain - front or rear mounted; available in 3' and 6' models.
Standard color for guides, brackets, struts and bottom bar is yellow.
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
