Wayne-Dalton -Model 881 High Speed Fabric Door

DOWNLOADS

Model 881 ADV-Xtreme is an interior high speed fabric door to satisfy commercial applications where indoor distribution or manufacturing facilities require environmentally controlled environments for high traffic areas from forklift operation.


Category: fabric doors | interior coiling doors | interior roll-up doors...

MasterFormat: Coiling Doors and Grilles | Overhead Coiling Doors | Industrial Doors...


Related Products

Overview

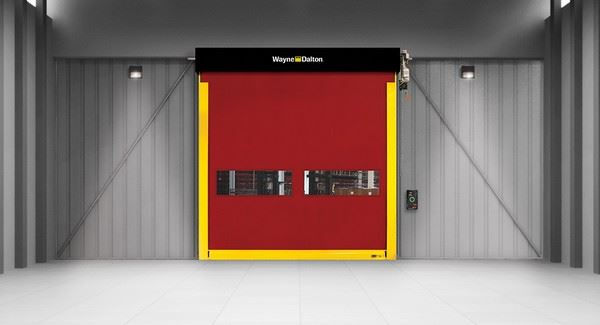

Model 881 High Speed Fabric Door

Model 881 ADV-Xtreme is an interior high speed fabric door to satisfy commercial applications where indoor distribution or manufacturing facilities require environmentally controlled environments for high traffic areas from forklift operation. Model 881 ADV-Xtreme high speed interior fabric door has an airtight design to prevent airborne contaminants from entering the controlled and non-controlled environments and reduces air exchange to no higher than .236 cfm/sf (ASTM E-283). Model 881 can withstand a pressure of up to 7.5 psf, making it an excellent option to separate high and low-pressure rooms in large facilities.

Ideal Applications Include:

Manufacturing / Heavy Manufacturing - Warehouse / Distribution - Pharmaceutical - Cold Storage - Food & Beverage

Benefits

High Performance Design

  • Strutless design lowers the operational noise of the door for quiet and smooth operation
  • Springless design requires minimal interruption for maintenance
  • Direct-mounted gear drive minimizes wear and tear
  • Variable frequency drive eliminates sudden jolts from door start/stop

Independently-Tested Airtight Design

  • Prevents airborne contaminants from entering a controlled environment
  • Reduces air exchange to no higher than .236 cfm/sf (ASTM E-283)

Field Repairable

  • Patented breakaway system design with impact detection and push button self-repair
  • Patented curtain lock makes door easy to repair in the field
  • Hinged guides provide easy access for maintenance

Installer Friendly

  • Pre-assembled sub-assemblies for easier installation
  • Plug-and-play wiring reduces the need for a licensed electrician

Warranty

  • 5-year Limited Warranty on drive motor and gearbox
  • 1-year Limited Warranty on all other components
  • 20" high vision panels: Spaced evenly across the width of the door
  • Stainless Steel guide, hood, motor cover, and head plates
  • FDA-compliant fabric is available for food and beverage applications
  • Cooler application - Air curtain options available including heated or non-heated, steel or stainless steel and various voltage offerings
  • Light curtain - front or rear mounted; available in 3' and 6' models.

Standard color for guides, brackets, struts and bottom bar is yellow.

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.


See More


Specifications

001
Standard ConstructionModel 881
OpeningsInterior / Interior
Max. Width14'
Max. Height14'
Max. Opening Speedup to 70” per second
Max. Closing Speedup to 40” per second
Certified Air Tightness<0.236 cfm/sq ft (independently tested to ASTM E283 standard)
Breakaway Self-ResetYes
Curtain Material2 layers of light PVC-coated polyester with 1 layer of polyester weave
Curtain LockYes
OperationDirect drive motor and gearbox system with field changeable universal handing and door stop safety device
Control PanelVariable frequency drive, self-diagnostic, programmable service reminders, pad-lockable fused disconnect NEMA 4X rated, cULus listed
New Advanced Control Panel*- Features circular LED light ring with flexible activation profiles, automatic adjustment of operator frequency to prevent a fault or stopping the door.
*Subject to Model Selection. Late availability
Supply Voltage120V AC 1 PH
208V AC 1 PH
220V AC 1 PH
208V AC 3 PH
230V AC 3 PH
460V AC 3 PH
575V AC 3 PH
Safety FeaturesObstruction Safety Detection & Reversing Sensing Edge
Wind Load*up to 7.5 psf
Curtain Color Options
WhiteYellowOrangeRed
BlueGrayBlack
FDA Compliant Applications
Royal BlueWhite
Guides/Brackets/Struts/Bottom Bar Colors
Safety YellowBlack
RAL Powder Coat*
