Wayne-Dalton -Model 800F Rolling Storm Shelter Door

DOWNLOADS

Our Rolling Steel Shelter Door series is designed to provide the ultimate protection for a variety of important applications. Whether you need to secure a school, emergency operations center, storefront, or saferoom, these doors have got you covered.


Category: doors | emergency exit doors | storm doors...

MasterFormat: Doors and Frames | Integrated Door Opening Assemblies | Security Doors and Frames


View Product Details From Manufacturer


Wayne-Dalton
P.O. Box 67
Mt. Hope, OH 44660
Tel: (800) 764-1457

commercialsales@wayne-dalton.com

https://www.wayne-dalton.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Model 800F Rolling Storm Shelter Door

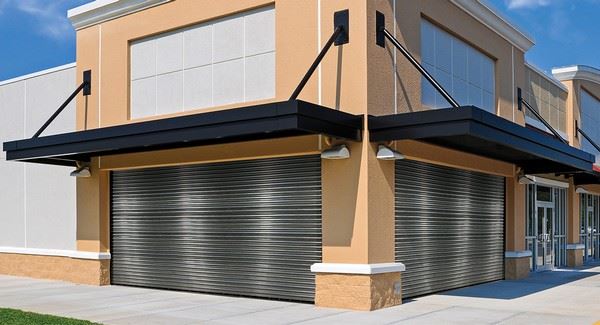

Our Rolling Steel Shelter Door series is designed to provide the ultimate protection for a variety of important applications. Whether you need to secure a school, emergency operations center, storefront, or saferoom, these doors have got you covered. Our shelter doors are certified to withstand the most extreme conditions, including tornadoes (800F), fire (800FR), and forced entry (800FE) providing a combination of safety, function, and durability.

Ideal Applications Include:

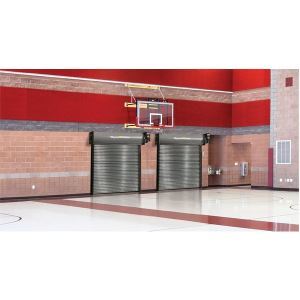

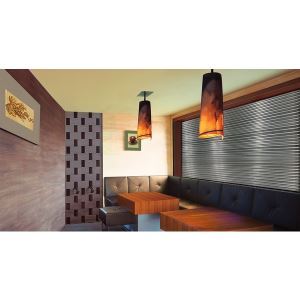

Storm Shelters - Schools - Emergency Operations Centers - Gymnasiums - Storefronts - Safe Rooms

Benefits

Windload Ratings

  • End stiles wrap around the exterior of each section to protect the section face from wear caused by the door jambs
  • Comes in a wide variety of sizes and configurations that provide durability and value
  • The exterior skin helps increase strength while enhancing the building’s visual appearance

Warranty

  • 36-Months; 10K cycle limited on door system


See More


Specifications

001
Standard ConstructionModel 800FModel 800FRModel 800FE
Max. Width16'11'16'
Max. Height16'11'16'
Curtain12-gauge galvanized steel12-gauge galvanized steel12-gauge galvanized steel
Slat Profile6' curved slats6' curved slats6' curved slats
FinishGray Powder CoatGray Powder CoatGray Powder Coat
Hood24-gauge galvanized steel24-gauge galvanized steel24-gauge galvanized steel
Standard MountingFace-of-wallFace-of-wallFace-of-wall
OperationGenie GCL-GH operatorGenie GCL-H fire door operatorGenie GCL-GH operator
Control PanelStandard 3 button controlStandard 3 button controlStandard 3 button control
Standard Spring10,000 cycle10,000 cycle10,000 cycle
GuidesThree steel anglesThree steel anglesThree steel angles
Bottom BarDouble angle steelDouble angle steelDouble angle steel
ObstructionWireless Sensing EdgeWireless Sensing EdgeWireless sensing Edge
Ratings

*Windload:
Tested: +/- 300psf (ICC-500/FEMA 361)
Tornado: +/- 250psf (ICC-500/FEMA 361)
Hurricane: +/- 250psf (ICC-500/FEMA 361)

Impact Rated: Up to 100mph: +/- 200psf (ICC-500/FEMA 361)

*Windload:
Tested: +/- 300psf (ICC-500/FEMA 361)
Tornado: +/- 250psf (ICC-500/FEMA 361)
Hurricane: +/- 200psf (ICC-500/FEMA 361)

Warnock Hersey(WH): UL 10B NFPA 252 and CAN/ULC S104 - Fire rated for up tp 4 hours

Impact Rated: Up to 100mph

Forced Entry ASTM F3038: ASTM F3038-21 - Up to 30 minutes

Ballistics: .22 & .38 Special (NIJ 0108.01)

Colors
Gray
