Model 700C Fire Rated Door

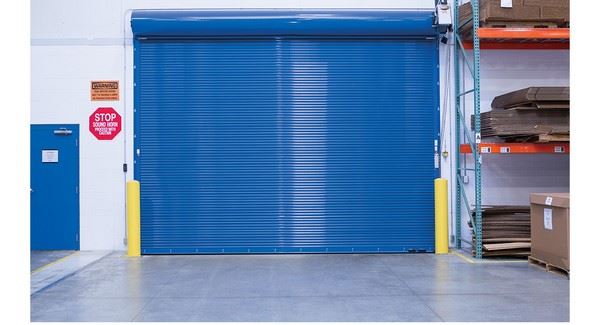

FireStar® fire-rated doors provide a practical and innovative solution to safety and fire protection for high traffic areas. Rolling Steel Fire Doors can be drop-tested and reset at any time by anyone, thanks to a standard auto-reset feature. Model 700C is an insulated rolling steel fire door with a non-combustible mineral wool insulation that has a flame spread and smoke development of 0, further aiding in the protection of the building. Both fire-rated doors feature a forward-thinking design that outperforms industry standard fire doors in all areas, including auto-reset testing capability; smooth, quiet operation; and reliable, long-lasting performance.
Ideal Applications Include:
Distribution Centers - Food Service Areas - Stadium Concessions - Service Stations - Storage Areas - Warehouses - Manufacturing - Trucking Distribution Center
Benefits
High-Quality Construction
- Patent-pending planetary gear on the drop-out mechanism ensuring years of reliable service and drop-out performance
- Lift up operation control device utilizing a clutch plate and unique counterbalance technology to drop the door in the event of a fire
- UL/ULC/FM rated; Conforms to NFPA Standard 80
- Up to 4-hour and 3-hour Class A label in UL, ULC
- Regulates the installation and maintenance of assemblies and devices used to protect openings in walls, floors, and ceilings against the spread of fire and smoke
- Tested and approved to meet the requirements of well-known agencies, such as Underwriters Laboratories and Factory Mutual
Reliable Design
- Factory-tested and approved for a minimum of 20,000 cycles, the FireStar® door can be used and easily tested on a regular basis without concerns of premature failure
- Non-Tension Release provides the ease of simply opening the door to reset the drop mechanism after ‘an event’
Field Repairable
- Floor resettable features an easy drop test with a fast/simple reset in a matter of seconds
- By incorporating one standardized component design, this ensures more accurate installations and reduces the possibility of potential service calls in the future
Warranty
- 24-Months Limited Warranty on all product parts and components
Slat Profiles: 700
Slat Profiles: 700C
Vision Options
- FireLite*- 5" x 3/4"
- FireLite* fenestration with glass vision lite
- 6" curved slat
Curtain Gauge Options
- 20 or 18-gauge Steel front
- 22, 20, or 18-gauge Stainless steel front
Bottom Bar Options
- Stainless steel double angle
- Galvanized structural steel angle construction
- Sloped
Bottom Edge Options
- Astragal
- Pneumatic
- Electric sensing
Hood
- 22-gauge steel
- Square hood
Locking Options
- Slide bolts
- Cylinder
- Best lock
- Thumb turns
Perimeter Seal Options
- Angled guide brush seal
- Exterior lintel weather
- Flame baffle
- Smoke package
- Full perimeter seal
- Caulking
- Label
End Covers
FM label
Fascia
*FireLite is a trademark of Nippon Electric Glass Company
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.
