Wayne-Dalton -Model 530 Wood Counter Shutters

DOWNLOADS

The Model 530 Wood Rolling Counter Shutters provide attractive, handcrafted, wood roll-up doors are offered in a variety of wood species and will complement any interior design.


Category: interior coiling doors | wood coiling doors | wood counter doors...

MasterFormat: Specialty Doors and Frames | Coiling Doors and Grilles | Coiling Counter Doors...


Related Products

Overview

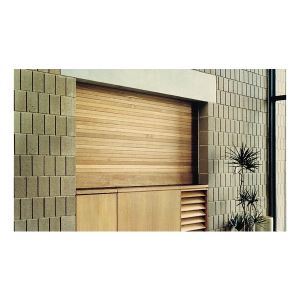

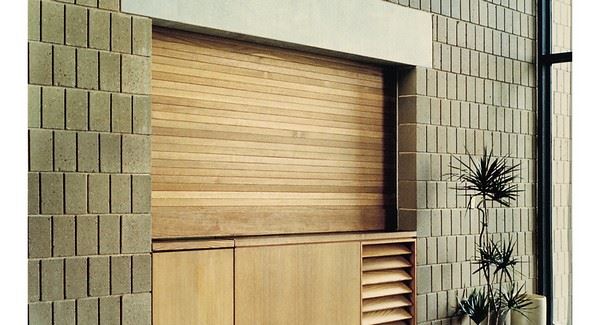

Model 530 Wood Counter Shutters

The Model 530 Wood Rolling Counter Shutters provide attractive, handcrafted, wood roll-up doors are offered in a variety of wood species and will complement any interior design. Our wood rolling counter shutters are constructed of high-quality flat slats for a good, tight fit and enhanced aesthetics. Shutters are provided unfinished, allowing you to match established design elements. The result is a counter shutter that complements the interior aesthetics and meets functional requirements in a variety of applications.

Ideal Applications Include:

Hotels - Banks - Churches - Library - Office

Benefits

High-Quality Constructions

  • High-quality flat slats for a tight fit and enhanced aesthetics
  • The counterbalance assembly features adjustable helical torsion springs for longer life

Warranty

  • 24-Months Limited Warranty against defects in materials and workmanship


See More


Specifications

001
Standard ConstructionModel 530
Max. Width12'
Max. Height8'
Wood Slats1-3/4" high by 1/2" thick
MountingFace of wall; between jambs
OperationManual Push-up
CurtainRed Oak standard; Douglas Fir, White Oak, Birch and exotic wood species also available
GuidesWood
Bottom BarWood
LockingThumb-turns
