Model 451 Aluminum Door

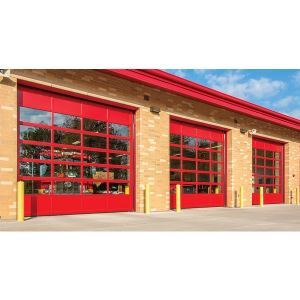

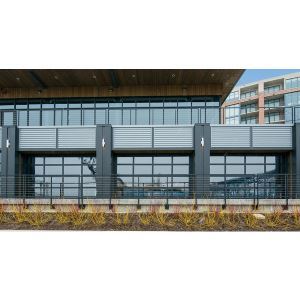

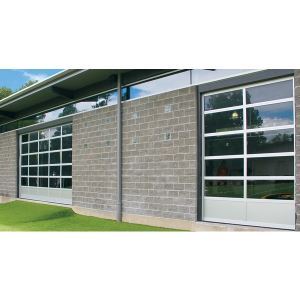

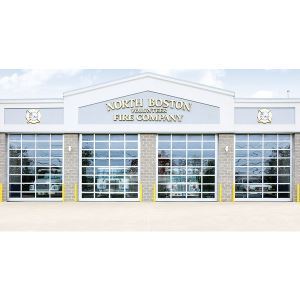

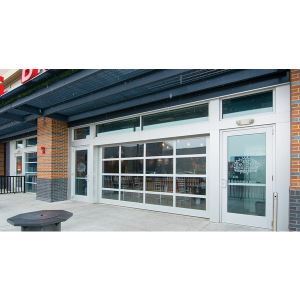

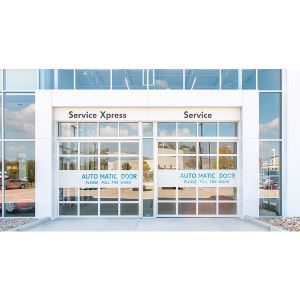

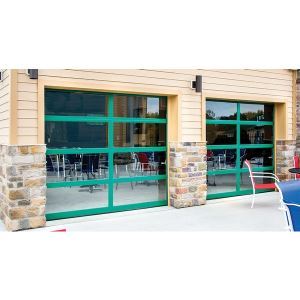

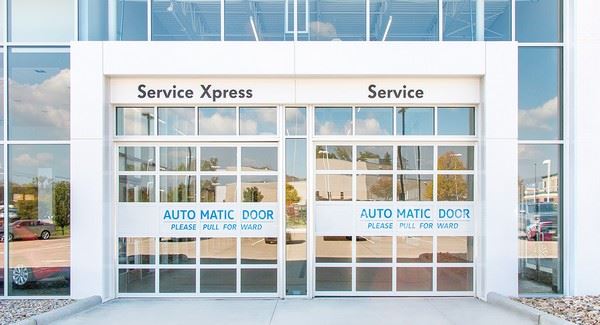

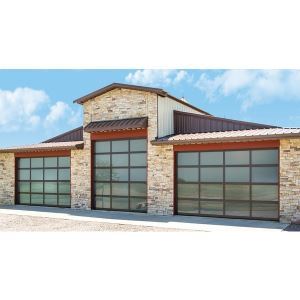

Perfectly suited for applications where maximum light and visibility are desired, the Aluminum Full-View commercial glass doors are engineered for strength and durability while delivering a look that is both modern and elegant. With their sleek contemporary styling, these doors are right at home in a wide variety of settings that range from a five-star restaurant on the seaside to a brewery and many more. Customizable with anodized and powder coated finish options, paint colors, glass choices and solid or glass panels, these commercial glass doors create a modern open look to complement your business.

Models 451 and 452 are available in the Central and Eastern regions of the United States.

Ideal Applications Include:

Distribution Centers - Auto dealerships - Car washes - Restaurants - Bars - Service Bays

Benefits

Durable Design

  • 1-3⁄8" thick section with special reinforcing design
  • Large glass panels allow maximum light and visibility
  • Minimizes air flow with a vinyl seal between the section seals

Warranty

  • 1-Year against defects in materials and workmanship

Solid or Glass Panel Options

  • Solid aluminum panels may be specified in lieu of glass
  • Polycarbonate, various glass thicknesses, and custom glazing are also available

Weather Stripping Options

  • Jamb seals
  • Header seals

RAL Powder Coat*

Approximately 200 powder coat options are available to complement the exterior colors of a building.

*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.


See More


Specifications

001
Standard ConstructionModel 451Model 452
Max. Width22’ 2”22’ 2”
Max. Height16'1"14'1"
Door AssemblyStile and rail assembly of aluminum alloy 6063-T6, 1-3/8" thick stiles and railsStile and rail assembly of aluminum alloy 6063-T6, 1-3/8" thick stiles and rails
OperationElectric operator, chain hoist, or pull ropeElectric operator, chain hoist, or pull rope
RailsTop, upper, intermediate, and bottom rails ranging from 1-5/8” to 3-1/2" wide with a minimum wall thickness of 0.062"Top, upper, intermediate, and bottom rails ranging from 1-5/8” to 3-1/2" wide with a minimum wall thickness of 0.062"
StilesSingle end stiles are 3-1/2" wide, center stile 3" wide, minimum wall thickness 0.062"Single end stiles are 3-1/2" wide, center stile 3" wide, minimum wall thickness 0.062"
Spring Cycles10,00010,000
TrackProvide track as recommended by the manufacturerProvide track as recommended by the manufacturer
WeatherstrippingFlexible bulb-type strip at bottom sectionFlexible bulb-type strip at bottom section
LockingInterior mounted slide lockInterior mounted slide lock
Air Infiltration (IECC)0.4 cfm/ft20.4 cfm/ft2
R-value* (optional)No3.97
Wind Load*** (optional)Yes***Yes***
002
Glass TypesU-factorR-value** 10' x 10' doorR-value** 12' x 12' doorR-value** 14' x 14' door
1/2" Insulated glass Solar Ban 70XL argon filled with polyurethane-filled rails and stiles.313.973.923.91
1/2" Insulated glass Low E with polyurethane-filled rails and stiles.283.313.253.25
1/2" Insulated glass with polyurethane-filled rails and stiles.312.792.692.69
Powder Coat Finish
WhiteBronzeBrownBlack
Anodized Finish
Clear (Standard)BronzeBlack
004
Glass TypeThicknessTintModel 451Model 452
Annealed1/2" InsulatedClear, Gray, Stain EtchedX
Annealed1/2" Low EClearX
Annealed1/4"Clear, Gray, Bronze, Satin EtchedX
Annealed1/8"Clear, Gray, Bronze, Satin EtchedX
Tempered1/2" InsulatedClear, Gray, Bronze, Satin EtchedX
Tempered1/2" Low EClearX
Tempered1/4"Clear, Gray, Bronze, Satin EtchedX
Tempered1/8"Clear, Gray, Bronze, Satin EtchedX
Tempered1/8"Clear, Gray, Bronze, Solex Green, Satin EtchedX
Wire1/4"ClearX
Laminated1/4"ClearX
Acrylic1/8", 1/4"ClearX
Polycarbonate1/8", 1/4"ClearX
Polycarbonate1/8", 1/4"ClearX
