Wayne-Dalton -Fixed Dock Seal

DOWNLOADS

This seal helps keep out weather and saves on heating/cooling costs. The trailer compresses the foam top pad and side columns of this seal.


Category: dock seals | loading dock equipment | perimeter seals...

MasterFormat: Vehicle and Pedestrian Equipment | Loading Dock Equipment | Loading Dock Seals and Shelters...


Related Products

Overview

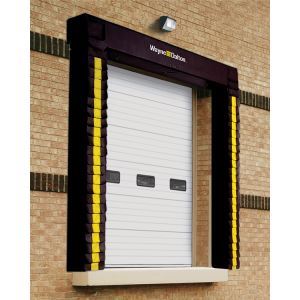

Fixed Dock Seal

This seal helps keep out weather and saves on heating/cooling costs. The trailer compresses the foam top pad and side columns of this seal.

HIGH QUALITY CONSTRUCTION

  • The fabric is double stitched with high strength polyester thread that has been UV treated for long term durability
  • The columns and top pad have premium grade foam with full compression and recovery properties in temperatures as low as -40°F
  • The fire resistant foam is continuously bonded to the backing with a non-flammable adhesive with elastic properties for long life
  • Plated vent openings drain moisture and promote air circulation for compression in the vertical columns and top pad

FABRIC ADVANTAGES

  • Made of fire resistant fabric and available in multiple weights including a premium 40 oz fabric that has 6 times more abrasion resistance
  • All fabrics are treated with UV protection to help prevent fading

ADDITIONAL TRAILER IMPACT AND ABRASION PROTECTION

  • Optional column wear pleats provide additional tearing and abrasion protection
  • Heavy duty 66 oz. wear pleats on the top and bottom corners also available

ADDITIONAL TRAILER IMPACT AND ABRASION PROTECTION

  • At docks where there is no leveler, a bottom seal pad can provide a seal on all four sides of the opening along with the side columns and top pad

1-Year Limited Warranty


See More

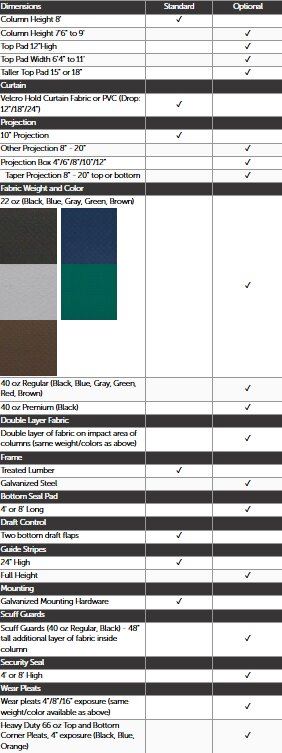

Specifications

001
002
Back Column WidthFront Column Width
10"10"
12"12"
8"11"
8"14"
12"15"
12"18"
003
