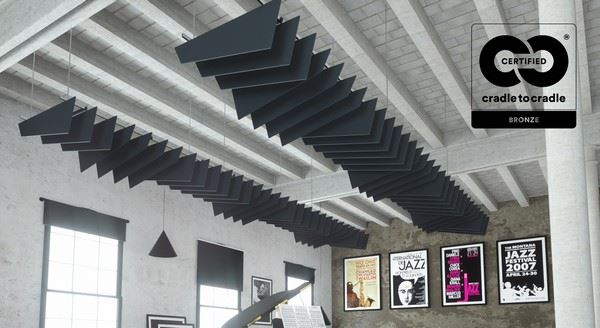

Octave Baffles

The Octave Baffle system has been meticulously crafted to offer universal mounting versatility, accommodating a diverse range of installer-supplied rail systems. Additionally, it is compatible with the Unika Vaev stationary hanging kit, allowing for seamless direct attachment to a ceiling substrate. This system is available in 17 color variations of solid color core, many curated Wilsonart® printed patterns, and features a variety of design options, including beveled edges. Octave Baffles exemplify a comprehensive approach by providing flexibility not only in acoustic performance but also in aesthetics, making them a versatile solution for a wide array of design and sound management requirements

Additional Features

Designer

Unika Vaev Design Studio

Content

100% PET

Environment

California 01350 Emissions Compliant, Cradle to Cradle Bronze Certified®, Declare Compliant, EPD, HPD, Low VOC, Oeko-Tex® Certified, Prop 65 Compliant, Published with mindful MATERIALS, Rapidly Renewable Content, Red List Compliant

Performance

NRC results were determined with three tests to establish a range which are detailed below:

• 8 Octave fins tested with 18″ spacing: Array-NRC 0.45 over 10.0 m2 of extended continuous surface area
• 8 Octave fins tested with 12″ spacing: Array-NRC 0.60 over 6.82 m2 of extended continuous surface area
• 8 Octave fins tested with 6″ spacing: Array-NRC 1.00 over 3.32 m2 of extended continuous surface area

Green Star + LEED

• The Octave Baffles can achieve Green Star low-VOC points

Additional Information

• Mounting options: UniStrut Mount. Unika Vaev Stationary Hanging Kit.
• UniStrut Mounted Dimensions: 96″ x 10.75″ supplied with (8) spacing inserts @ 1.375″ x 12″.
• Stationary Hanging Kit Dimensions: 92″-104″ x 11.5″ supplied with (12) solid core spacing inserts @ 1.375″ x 12″.
• NRC ratings are contingent upon depth of and spacing between baffles.
• The NRC rating is intended to be a general guideline only.
• Octave Baffles are available with straight or beveled edges.
• Beveled edge Octave Baffles will use the Wilsonart® pattern collection prints as a standard option.
• Beveled edge Octave Baffles can be specified without a print as a custom option.
• Please note: Custom printing of close color match to non-coated Pantone colors is available as a custom option.
• Octave Baffles are constructed from recyclable, 100% PET.
• Octave Baffle panels have achieved Cradle to Cradle Bronze, and low VOC certification

NRC Rating

0.45 - 1.00 depending upon spacing of baffle fins

Dimensions

(4) Fins @ .47" W x 15" or 16" H x 96" L [baffle heights differ depending on mounting]

Sold In

Kit format

Flammability

AS/ISO 9705 group 1, AS/NZS 1530.3, ASTM E84 Class A, CAN ULC S102
