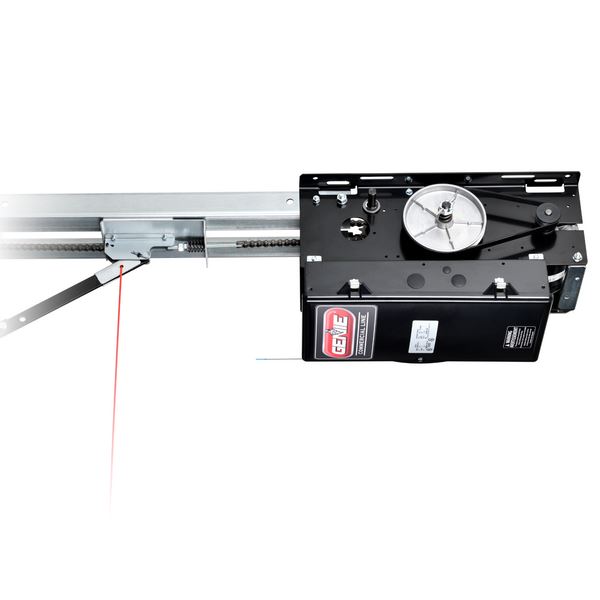

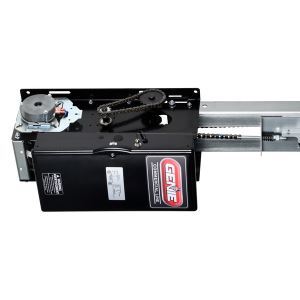

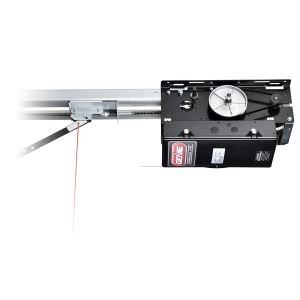

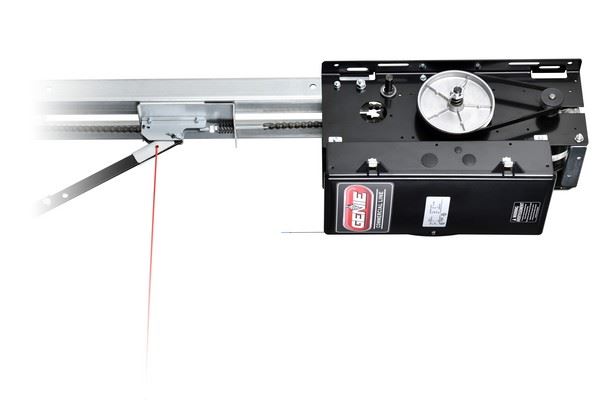

GCL-MT Medium-Duty Trolley Commercial Door Operator
The new Z Series GCL-MT is designed for standard-lift sectional doors that have a 15-cycle/hour or fewer duty requirement. Advanced features and robust mechanical design combine to provide a medium-duty operator that is the new standard in the industry.
Standard Features
- UL 325 2010 approved.
- 11.5 inches per second door speed.
- EZ Limit® electro-mechanical limits.
- Max run timer automatically adjusts to up and down run time.
- TensiBelt® primary reduction.
- Delay on reverse.
- 16-character LCD display.
- 3-button control station.
- 2-year/20,000 cycle warranty.
- Programmable mid-stop.
- Built-in cycle count and trouble-shooting assistance via LCD display.
Advantages
- Rated for 15 cycles per hour operation. Maximizing the performance of a medium-duty operator.
- Modular design with optional expansion boards for an advanced timer to close, and auxiliary output functionality.
- Included internal Intellicode® receiver learns up to 50 transmitters with randomly assigned identity numbers. Learn and delete individual transmitters directly from LCD display.
- Ball bearing motor with built-in thermal protection and ball bearing drive end provides overload protection, extends motor life due to use of bearings over bushings, and isolates motor for quiet operation.
- Open/close/stop and setup keys included on control board. Keeps all controls near the LCD display convenient for set up.
- Electric box isolated from frame for reduced vibration.
- Quiet trolley carriage with wear pads eliminates the need to grease trolley rails.
- Uses common 2” rails used by the standard and heavy-duty trolley operators.
