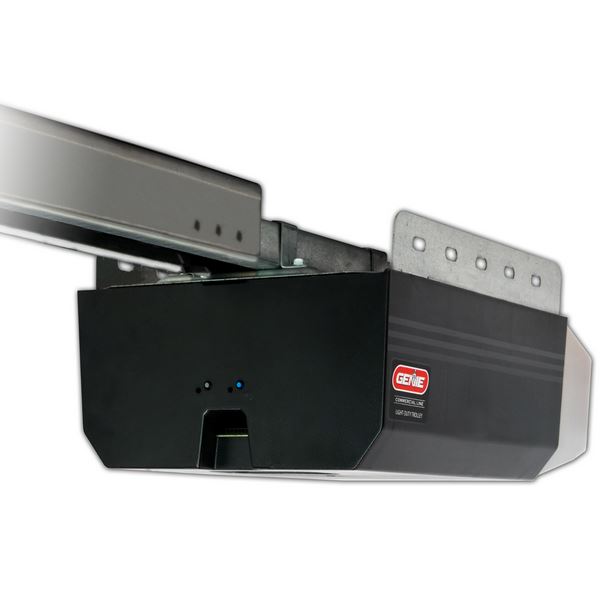

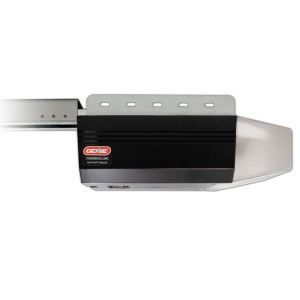

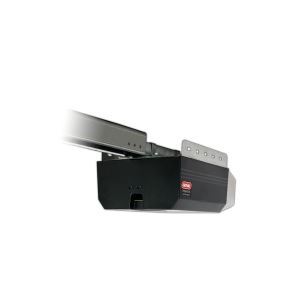

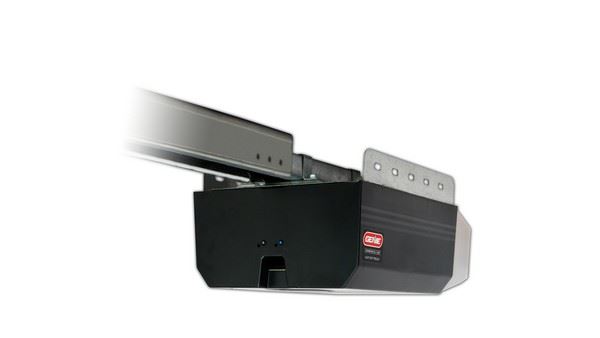

GCL-LT Light-Duty Trolley Commercial Door Operator
The GCL-LT is designed for standard-lift sectional doors that have up to a 12 cycle/hour and less than a 30-cycle/day requirement. Designed for reliability with leading innovative features, the light-duty trolley sets a new standard in the industry.
Standard Features
- Easy push to set limits.
- UL 325 Listed for commercial and residential.
- Automatic open and close door force settings.
- Pull cord release for emergency manual operation.
- 2-year limited warranty.
- Commercial photocells.
- 7.5 in/sec door speed in both directions in most applications.
- Max door height of 14 ft.
- Standard wired wall console.
- Can store 31 transmitters.
Advantages
- Industry’s strongest 140 VDC motor.
- Intellicode® dual frequency automatically adjusts between the 315 and 390 MHz to help avoid remote control interference.
- Soft start and stop reduces stress on the door and operator for improved life.
- GenieSense® Monitoring and Diagnostic Technology - Operator force profile detects irregularities in operation of the door to identify unsafe door operation. The force profile is updated every cycle to account for changes in weather and temperature.
- Power on demand gives the operator the ability to adjust output power during key movements of the door’s travel to ensure a smooth and consistent movement.
- Smart illumination lighting positions the 2-bulb lighting system towards the inside of the garage instead of at the door for light where it's needed.
- Heavy-duty double c-channel rails allow for operation of heavy doors with minimal deflection of the door system.
- Sure-Lock™ Control allows for operator lock out when door operation isn’t required. Manually toggled feature on the wired wall console.
- Optional battery backup can be added at anytime.
