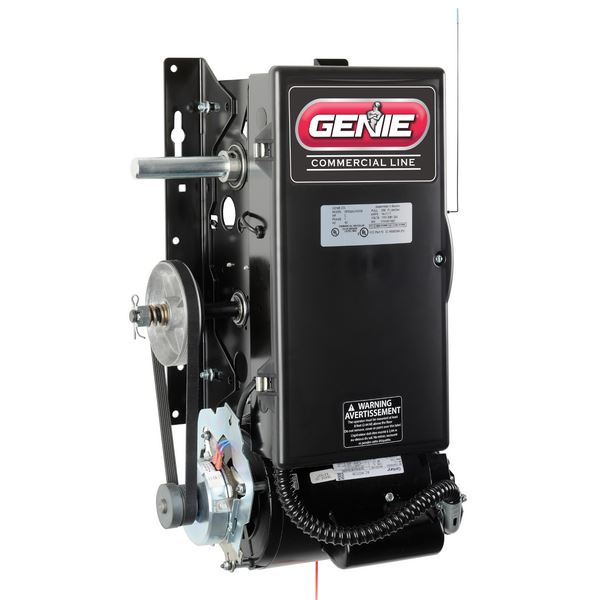

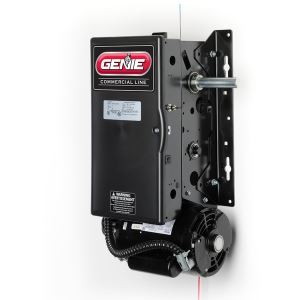

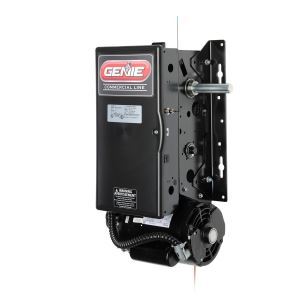

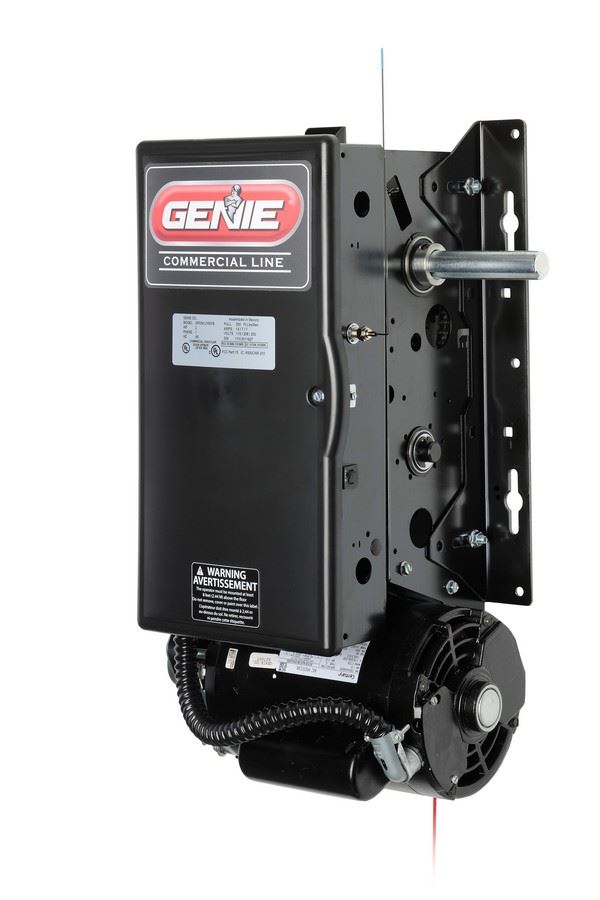

GCL-J Egress Standard-Duty Jackshaft Operator

The GCL-J Egress operator is designed for applications where access-controlled egress opening is required for emergency response ingress or exit. Advanced features and options provide considerable flexibility meeting job specific configuration needs. The GCL-J Egress operator works with emergency egress grilles having 30-cycle per hour or less duty requirement. Maximum door height: 24 feet.

Standard Features

• Limits are maintained after emergency egress grille operation. Upon restoration of power and/or rest of the egress activation device, the grille may be motor operated normally.
• Governor limits grille speed during egress operation.
• Release clutch disconnects operator drive train allowing grille travel to fully open position upon receipt of alarm signal, emergency egress push-button operation, or power loss.
• Continuous-duty AC motor with overload protection. Motor replaceable without changing limits. Thermally protected.
• EZ Limit® electro-mechanical limits.
• Adjustable friction clutch.
• Pull cord release for emergency manual operation.
• Maximum run timer automatically adjusts to up and down run time.
• TensiBelt® primary reduction. Chain and sprocket secondary reduction.
• Precision radial ball bearings in critical areas.
• 24 VDC disc brake with progressive braking.
• 2-year/20,000-cycle limited warranty.
• Delay on reverse.
• UL 325 Listed.
• 3-button control station.
• Programmable mid-stop.

Advantages

• MultiVolt® - Order phase specific operator for the job and have the ability to select the right voltage on the job site.
  • Single Phase: 115/208/230 VAC
  • Three Phase: 208/230/460 VAC
  • Three Phase: 575 VAC available separately
• 16-character LCD display with intuitive setup menu. Provides current status and troubleshooting assistance.
• Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display, each with their own randomly assigned transmitter ID numbers.
• TensiBelt® primary drive reduction eliminates need to adjust belt tension.
• EZ Limit® provides for push to set limits that stay synchronized with door through long-term loss of power.
• Open/close/stop and setup keys included on control board.
• Modular design with optional boards for advance timer to close and auxiliary output functionality.
