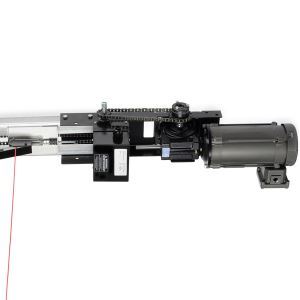

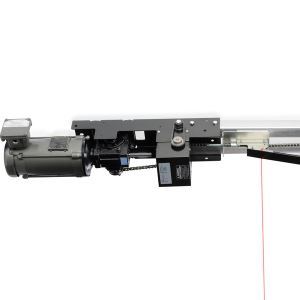

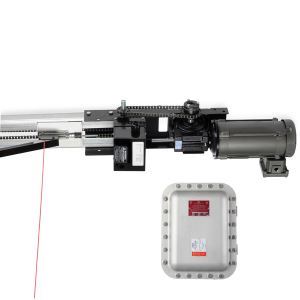

GCL-GT Explosion Proof Heavy-Duty Gear Head Trolley Operator
The GCL-GT explosion-proof operator is designed for standard-lift sectional doors that have up to 60 cycle/hour duty requirement.

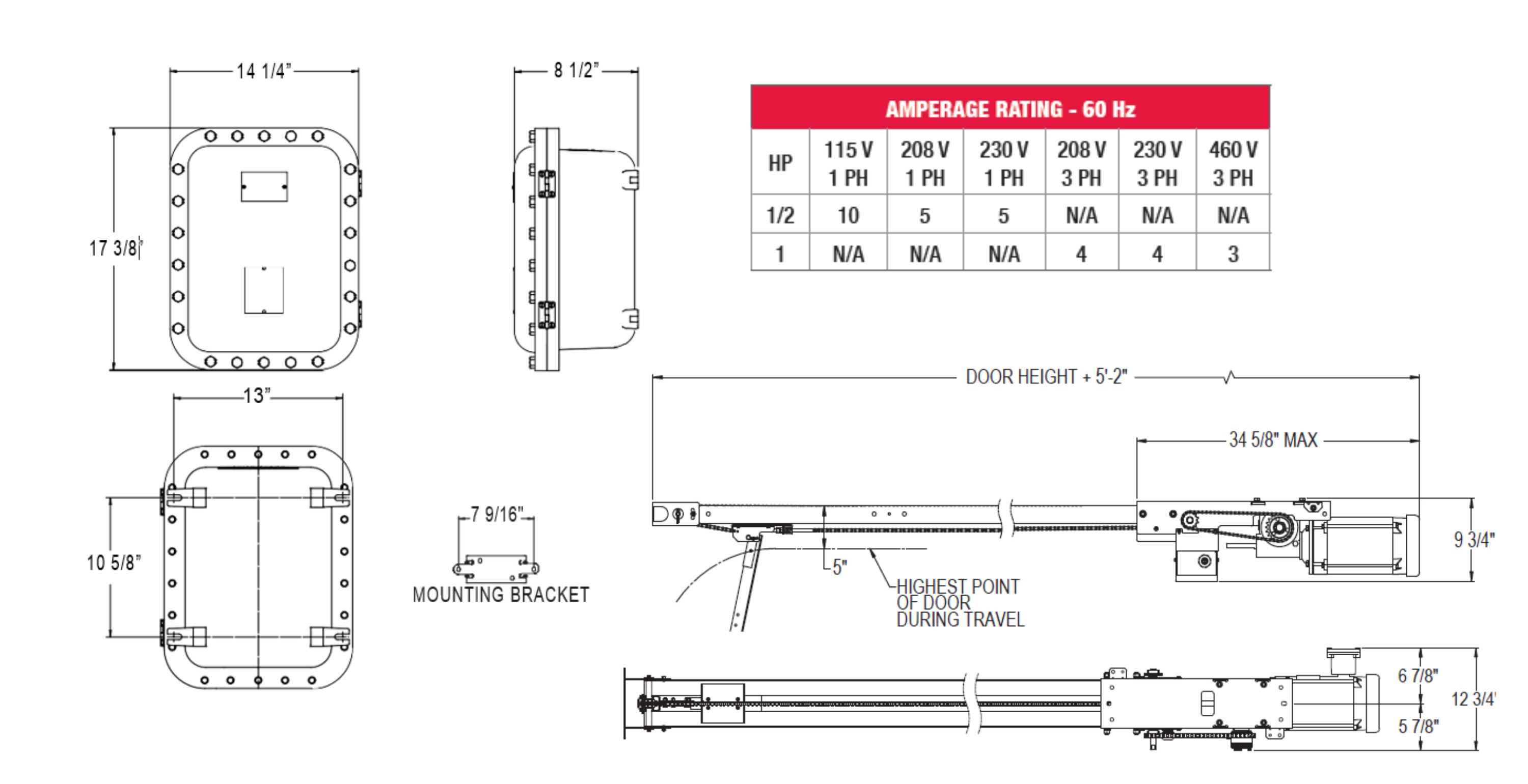

Maximum door height: 24 feet.
Standard Features
- FM APPROVED. The FM APPROVED mark, which is backed by scientific research and testing, indicates equipment specified for hazardous locations conforms to the highest standards.
- The explosion-proof motor is UL Listed and CSA Certified for hazardous location use in areas classified as Class I, Group D and Class II Group F & G. Hoist unit motors available in ½ horsepower single phase, 1 horsepower three phase and 3 horsepower three phase.

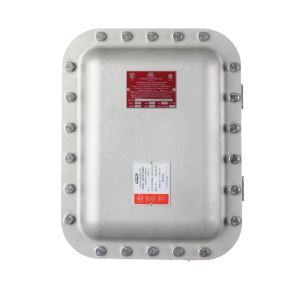

- Intrinsically safe design allows use of NEMA Type 1 control elements, such as push button stations, safety edges, and key switches.
- Limit overrun provides overrun adjustment from the down limit to fine tune the door seal to the floor.
- Cycle counter indicates the number of cycles logged for easy maintenance support.
- Voltage freedom - Order phase specific operator for the job and have the ability to select the right voltage on the job site. Single phase: 115/208/230 VAC or three phase: 208/230/460 VAC models available.
- Diagnostic LED visual indicators provide real-time status and trouble-shooting assistance.
- Open/close/stop and setup keys included on control board.
- Allows for monitored entrapment protection and momentary operation when used with select edge-sensing devices.
- Quiet trolley carriage with wear pads.
Advantages
- Dynamic motor braking.
- Maximum run timer shuts down motor automatically when running time exceeds the time required to run between the limits plus five seconds.
- Heavy-duty worm gearbox for primary reduction.
- Delay on reverse.
- UL 325 momentary contact close compliant.
- 3-button control station.
- 2-year/20,000-cycle limited warranty.
- Drawbar disconnect for emergency manual release.
- Timed close enables door to automatically close after user-defined time delay between two seconds to four minutes.
