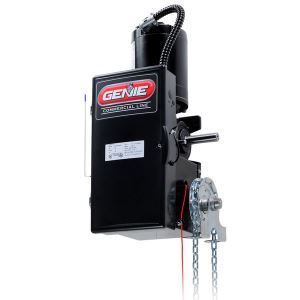

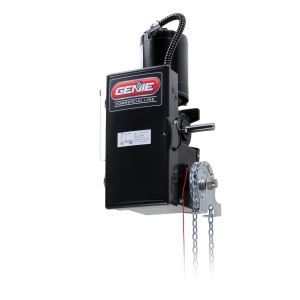

GCL-GH FireStar Heavy-Duty Gear Head Hoist Firestar® Operator
The GCL-GH FireStar® operator is designed for FireStar® rolling fire doors that have up to a 60-cycle/hour and greater than a 100-cycle/day requirement.
Standard Features
- Includes 9-tooth sprocket to attach limit chain to door.
- Continuous-duty AC motor with overload protection.
- EZ Limit® electro-mechanical limits.
- MultiVolt® voltage simplification.
- Maximum run timer automatically adjusts to up and down run time.
- Heavy-duty worm gear running in oil bath.
- Delay on reverse.
- 16-character LCD display.
- UL 325 Listed.
- Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen.
- 3-button control station.
- 2-year/20,000-cycle limited warranty.
- Programmable mid-stop.
- Emergency hoist for manual operation. Ships right hand from factory and is easily changed in the field.
- 24 VDC disc brake with progressive braking.
- Cycle count available via LCD screen.
Advantages
- MultiVolt® - Order phase specific operator for the job and have the ability to select the right voltage on the job site.
- Single Phase: 115/208/230 VAC
- Three Phase: 208/230/460 VAC
- Three Phase: 575 VAC only models also available
- Modular design with optional expansion boards for advanced timer to close, edge sensing, and auxiliary output functionality.
- LCD display with intuitive setup menu. Provides real-time status and trouble-shooting assistance.
- Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.
- EZ Limit® provides for push to set limits that remain synchronized with door even during long term loss of power.
- Open/close/stop and setup keys included on control board. Keeps all controls near the LCD display convenient for set up.
