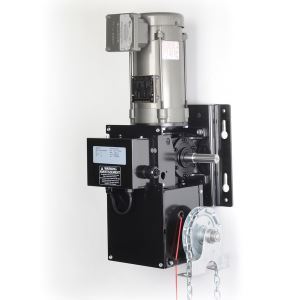

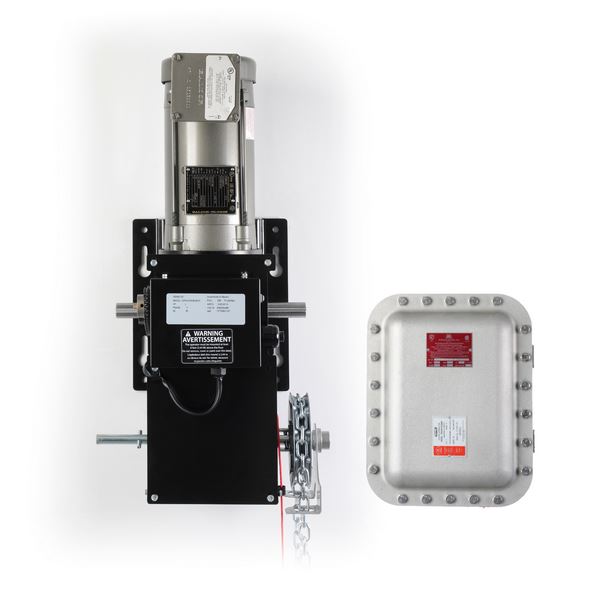

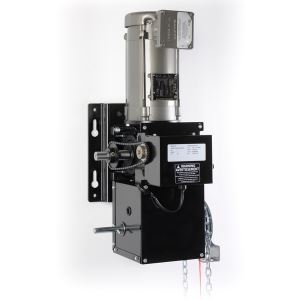

GCL-GH Explosion Proof Heavy-Duty Gear Head Trolley Operator

The GCL-GH explosion proof operator is designed for high or full lift sectional and rolling doors that have up to 60 cycle/hour duty requirement. Advanced features and robust mechanical design combine to provide a heavyduty operator that sets a new standard in productivity for hazardous location rated operators.

Maximum door height: 24 feet.

Standard Features

• Maximum run timer automatically adjusts to up and down run time.
• Dynamic motor braking.
• 2-year/20,000-cycle limited warranty.
• Heavy-duty worm gearbox for primary reduction in an oil bath.
• UL 325 momentary contact close compliant.
• Emergency hoist.
• Open/close/stop and setup keys included on control board.
• Delay on reverse.
• 3-button control station.

Advantages

• FM APPROVED. THE FM APPROVED mark, which is backed by scientific research and testing, indicates equipment specified for hazardous locations conforms to the highest standards.
• The explosion-proof motor is UL Listed and CSA Certified for hazardous location use in areas classified as Class I, Group D and Class II Group F & G.
• Intrinsically safe design allows use of NEMA 1 control elements such as push-button stations, safety edges, and key switches.
• 16-character LCD display.

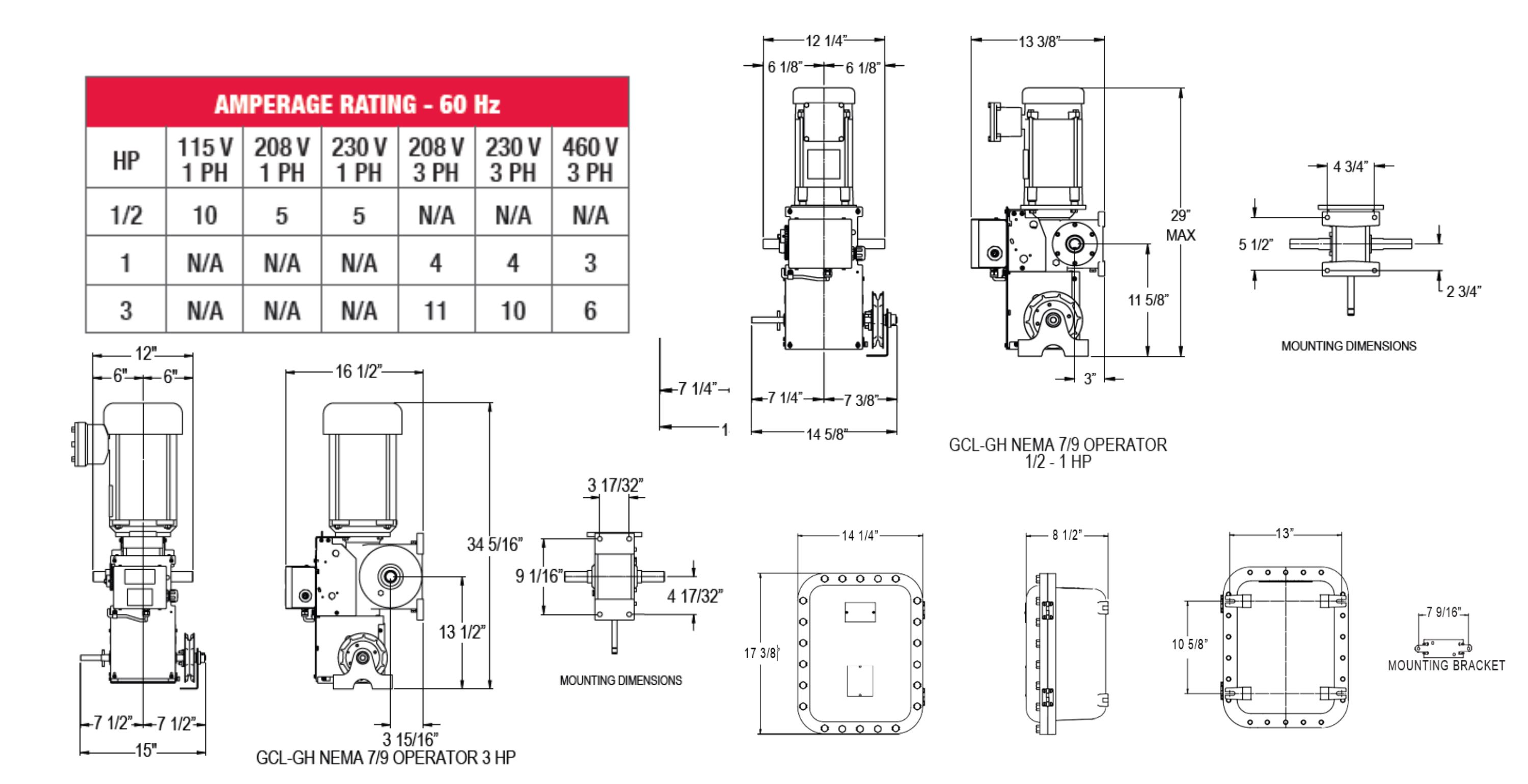

• Voltage freedom: 115/208/230 VAC or three phase: 208/230/460 VAC models available.
• Diagnostic LED visual indicators provide real-time status and trouble-shooting assistance.
