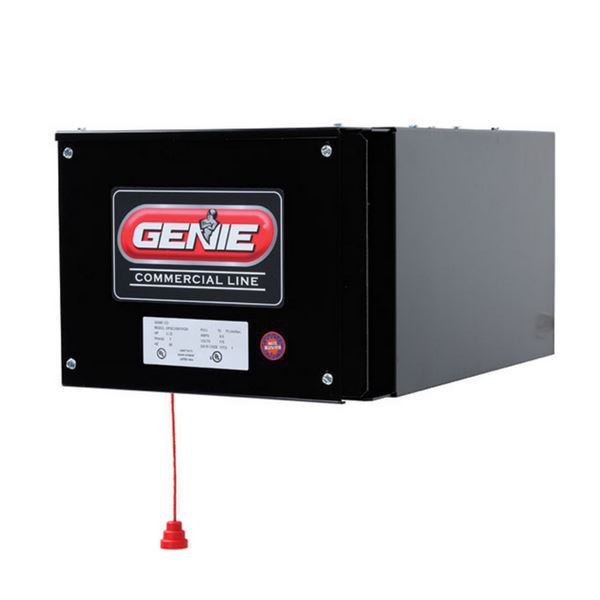

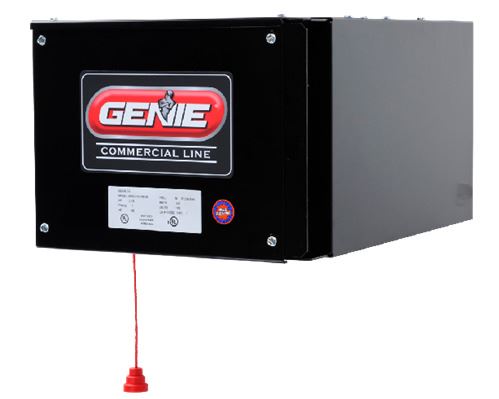

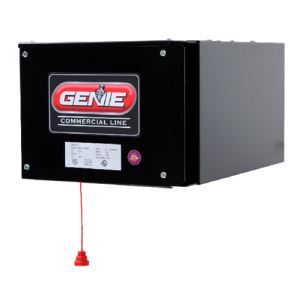

GCL-GCX Light-Duty Counter Commercial Door Operator

The GCL-GCX is designed for rolling counter doors that have limited-duty cycle requirements. The GCX comes with advanced features and is available in a fire-door version that raises the bar in counter door operation.

Standard Features

• UL 325 2010 approved.
• Limited-duty 4 cycles per hour rating.
• Max run timer automatically adjusts to up and down run time.
• Worm gear primary reduction.
• Delay on reverse.
• 16-character LCD display.
• 3-button control station.
• 2-year/20,000 cycle warranty.
• Programmable mid-stop.
• Pull cord release for emergency manual operation.

Advantages

• Modular design with optional expansion boards for a timer to close* and auxiliary output functionality.
• Worm gear primary drive reduction provides inherent mechanical braking.
• Completely enclosed drive allows for mounting below 8 feet; maintains UL 325 approval.
• Motor with built-in thermal protection.
• LCD display with intuitive setup menu. Provides real-time status and troubleshooting assistance.
• Open/close/stop and setup keys included on the control board. Keeps all setup controls near the LCD display convenient for set up.
• EZ Limit® provides for push-to-set limits that remain synchronized with the door even during loss of power and mechanical drops on fire-door versions.

* Advanced timer to close expansion board cannot be used in the fire counter door model.
