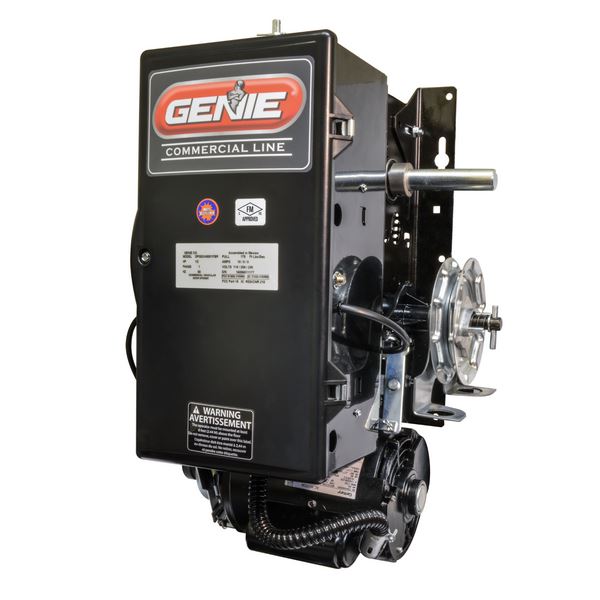

GCL-FDO Standard-Duty Hoist Operator

The GCL Fire Door Operator is designed for rolling fire doors that have a 30-cycle/hour or fewer duty requirements. Advanced features and robust mechanical design combine to provide the next evolution in fire door operators.

Standard Features

• UL 325 Listed and FM Approved.
• LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.
• Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display
• Open/close/stop and setup keys included on control board. Keeps all controls used for setup conveniently near the LCD display.
• Modular design with optional boards for advance timer to close, edge sensing, or auxiliary output functionality.
• 3-button control station.
• 2-year/20,000 cycle limited warranty.
• Electrically interlocked emergency hoist for manual operation.
• Allows for momentary contact operation when using select
• Maximum run timer automatically adjusts to up and down run
• Delay on reverse.

Advantages

• Floor level auto-reset. No manual intervention is required to reset fire door operator after a fire alarm or drop test. Upon reset of the fire alarm signal and test key switch, the fire door may be motor operated as normal.
• 24-hour battery backup provides extra protection in the event of a power loss.
• Governor controlled door descent.
• Configuration settings for automatic door opening after reset of the test key switch.
• User-configured time delay after an alarm or test signal before activation of door drop.
• Sash chain release ready for jurisdictions that require a fusible link.
• Intuitive configuration and trouble shooting of fire door and standard door functions through the built-in 16-character LCD display.
• Operator comes with a horn/strobe and test key switch, eliminating the need to purchase them separately.
• EZ Limit® provides push-to-set limits that remain synchronized with door even during long term loss of power and activation of fire door drop.
• MultiVolt® - Order phase-specific operator for the job and have the ability to select the right voltage on the job site.
  • Single Phase: 115/208/230V AC
  • Three Phase: 208/230/460V AC
  • 575V AC voltage models available separately
• 24 VDC disc brake with progressive braking standard.
• Cycle count available via LCD screen.
• TenisBelt® self-tensioning poly-V J belt primary reduction.
