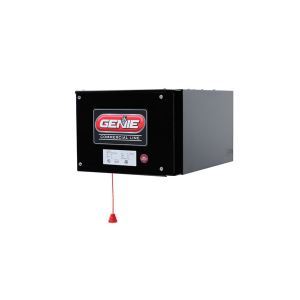

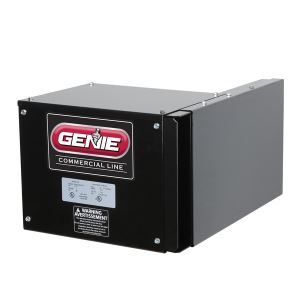

GCL - GCX Fire Door Light-Duty Fire Counter Dooor Operator

The GCL - GCX Fire Counter Door Operator is designed for rolling counter fire doors that have up to a 4-cycle/hour and less than a 30-cycle/day requirement.

Standard Features

• Thermally protected intermittent-duty 1/2 HP AC capacitor start/run motor. Motor replaceable without changing limits.
• Maximum run timer automatically adjusts to up and down run time.
• Worm gear primary reduction.
• Delay on reverse.
• 16-character LCD display.
• UL 325 Listed.
• 3-button control station.
• 2-year/20,000-cycle limited warranty.
• Programmable mid-stop.
• Pull cord release for emergency manual operation.

Advantages

• Completely enclosed drive allows for mounting under 8 feet, while still maintaining UL 325 Listing.
• Worm gear primary drive reduction provides inherent, mechanical braking.
• LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.
• Open/close/stop and setup keys included on control board.
• Keeps all controls within inches of the LCD display used for setup.
