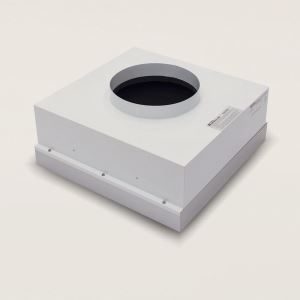

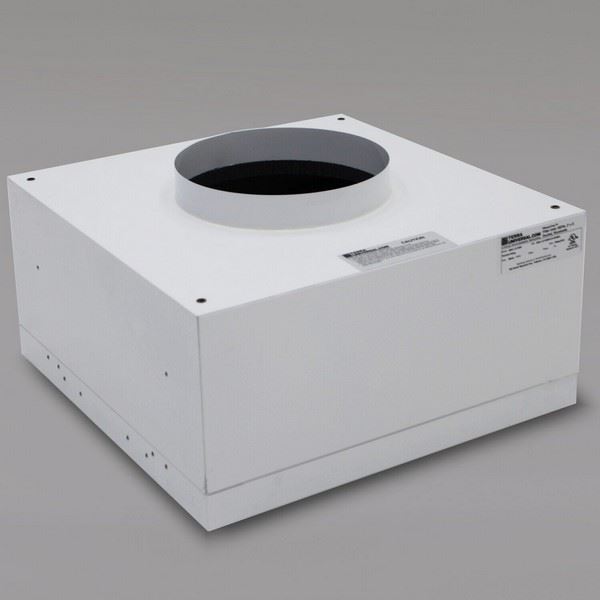

Laminar Flow Diffuser with HEPA Filter, Ducted, 2'x2', WhisperFlow
- Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
- Includes 12”-diameter x 2”H collar for connection to air supply; Airflow performance depends on flow of supplied air handler
- 1/4-20 threaded inserts in top corners, accommodate eyebolts to facilitate installation using suspended guy wires (order eyebolt package separately)
- Includes FDA-approved silicone sealant (specify acrylic urethane or other Required sealant type when FFU is ordered)
- Purchase optional Challenge Port Kit separately
- Filter: 99.99% efficient High-Efficiency Particular Air, rated at particles 0.3µm diameter
- Because filters are delicate and subject to damage during handling, all filter sales are final; no failure claims can be accepted.
- Type: Ducted
- Material: Powder-Coated Steel
- Filter Replacement Access: Top Side
- Size: 2'x2'
- Filter Frame Material: Aluminum
- Filter: HEPA
- Motor Type: None
- Airflow: Positive Pressure
- ISO Class: ISO 5
- RoHS: Compliant
- Unit of Measure: EA
- Weight, Product: 44 Lbs
- Dimensions, Product: 23.63"W x 23.63"D x 11.173"H
- Weight, Shipping: 71 lb
- Dimensions, Shipping: 50" W x 25" D x 19" H
- Package Type: Palletized
Features and Benefits Diffuser Panel Promotes Air Flow Uniformity and Protects Filter Integrity Unlike other manufacturers, Terra’s FFUs include a unique perforated panel beneath the filter, acting as a shower head, to guarantee filter protection and laminar air flow uniformity, which prevents localized air swirling, particle build-up and turbulence.
Protect Against Contaminants and Pathogens HEPA and ULPA filters help capture many bacteria, viruses (COVID-19), and mold spores that contribute to a host of infections for both humans and plant/animal tissue cultures
Complete Order Transparency Using Terra’s OnTrak system, our customers can view real-time production updates, receive shipment notifications and track their orders until they arrive at their facility
Website Metric Conversion Tool Easily convert any product specification to metric units of measure using Terra's web-based metric conversion tool
Products Compliant With Your ISO Rating High-capacity, durable, ISO-compliant system rated for thousands of operating hours.
