Sloan® -SOLIS RESS-U-0.25-OR-Z SOLIS® Exposed Sensor Urinal Retrofit Flushometer

0.25 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar, Fits Zurn

Category: 224243 | automatic flush valves | sensor operated flush valves...

MasterFormat: Plumbing Fixtures | Commercial Plumbing Fixtures | Flushometers

Sloan®
10500 Seymour Avenue
Franklin Park, IL 60131
Tel: (800) 447-8329
Fax: (847) 671-4380

Overview

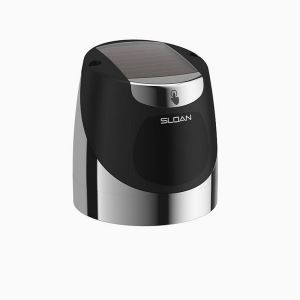

SOLIS RESS-U-0.25-OR-Z SOLIS® Exposed Sensor Urinal Retrofit Flushometer

0.25 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar, Fits Zurn

Features

Quiet, Exposed, SOLIS®, Solar Powered, Sensor Activated Urinal Flushometer Retrofit Conversion Kit for Royal®, Sloan® and Regal®
User friendly three (3) second Flush Delay
“Low Battery” Flashing LED
Solar Powered. The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
Four (4) Size AA Battery Back-up Power Source
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
PERMEX® Synthetic Rubber Flex Tube Diaphragm with twin linear filtered bypass and vortex cleansing action
Flex Tube Diaphragm designed for improved life and reduced maintenance
ADA Compliant Sloan Solis® Solar Powered Infrared Sensor for automatic “No Hands” operation
Diaphragm molded from PERMEX® Rubber Compound for Chloramine resistance
Courtesy Flush® Override Button
