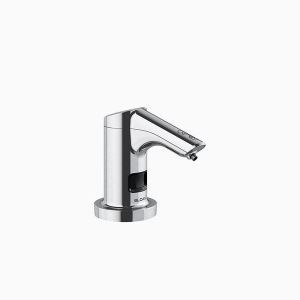

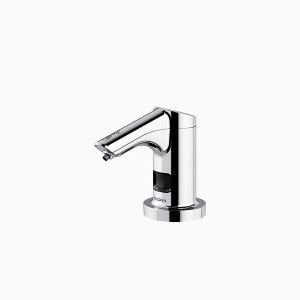

Sloan® Deck-Mounted Foam Soap Dispenser - ESD-420-SF

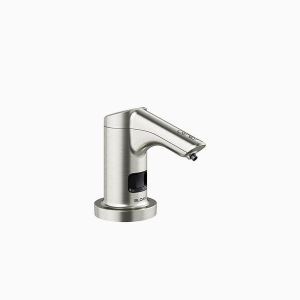

Brushed Stainless Finish

The ESD-420 is a sensor activated Sloan foam soap dispenser. The ESD-420 is a modular one-piece construction that easily attaches to the deck surface. The deck should have a maximum thickness of two inches when installing the ESD-420. With all Sloan soap dispensers, all electronics within the spout are sealed, and each spout is designed for drip free foam dispensing operation. The ESD-420 comes with all the necessary hardware required to have your soap dispenser installed and active. The motor assembly of the ESD-420 is suspended under the counter and connects to the soap dispenser spout, additionally the motor assembly rotates 360 degrees for easy installation and simplified maintenance. The battery life of this soap dispenser is 45,000 activations, and each soap bottle has 1,500 dispenses. The ESD-420 will ship with 2 bottles of non-scented, non-colored foam soap. To purchase soap refills, you can purchase the Sloan ESD-325. If you are interested in a matching faucet, Sloan recommends EBF-425 or ETF-420 style faucets.

Sensor Activated, Electronic, Hand Washing Foam Soap Dispenser with the following features:

• Touch-free operation improves hand washing hygiene

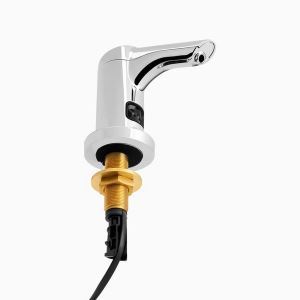

• Modular one-piece construction easily attaches to deck surface
• All electronics in spout are sealed
• Designed for drip free foam dispensing operation

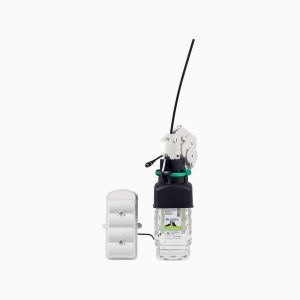

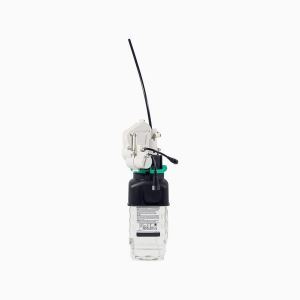

• Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout
• Motor assembly rotates 360 degrees for easy installation
• Battery life of 45,000 activations. 1-2 years based on usage.
• Approx. 1,500 dispenses per foam soap bottle
• Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)
• Ships with battery pack (4 "D" Alkaline batteries included)
• Sensor range - nominal 5”
• All mounting hardware included
• Optional ESD-324 AC adaptor can be purchased separately (part number 0346090) for hardwired applications and includes splitter cable to enable powering 2 soap dispensers. If using AC adaptor, GFI outlet 120V/15 Amp suggested per code
• Additional foam soap can be purchased through Sloan (ESD-325)
• Select the ESD-421 to combine ESD-420 soap dispenser, 2 bottles of soap and the EBF-425 faucet
• Note: Must used approved soap refills. Refills cannot be refilled after use. They must be recycled and a new bottle inserted into the dispenser. If they are refilled with a different soap the warranty on the soap dispenser will become null and void.
