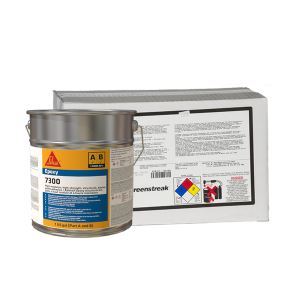

Waterstop Installation Accessories - Greenstreak® Epoxy-7300

High modulus, high strength, structural, epoxy paste adhesive

Greenstreak® Epoxy-7300, Hi-Mod Gel, is a 2-component, 100% solids, solvent-free, moisture-tolerant, high-modulus, highstrength, structural epoxy paste adhesive. It conforms to the current ASTM C-881, Types I and IV, Grade-3, Class-B/C and AASHTO M-235 specifications.

Meets physical requirements of ASTM C-881 Types I, II & IV, Grade 3, Classes B & C.
Suitable for potable water contact.
Excellent adhesion to concrete, masonry, metals, wood, and most structural materials.
Paste consistency ideal for vertical and overhead repair of concrete.
Fast-setting and strength-producing adhesive.
Convenient easy mix ratio A:B = 1:1 by volume.

Usage

• Watertight gasket between retrofit waterstop profile and existing concrete substrate.
• Structural bonding of concrete, masonry, metals, wood, etc. to a maximum glue line of 1⁄8 in. (3 mm).
• Grout bolts, dowels, and pins.
• Seals cracks and around injection ports prior to pressure-injection grouting.
• Interior, vertical, and overhead repair of concrete as an epoxy mortar binder.

Advantages

Meets physical requirements of ASTM C-881 Types I, II & IV, Grade 3, Classes B & C.
Suitable for potable water contact.
Excellent adhesion to concrete, masonry, metals, wood, and most structural materials.
Paste consistency ideal for vertical and overhead repair of concrete.
Fast-setting and strength-producing adhesive.
Convenient easy mix ratio A:B = 1:1 by volume.

Packaging

1 Gallon

Color

Component A: White
Component B: Grey
Mixed (A+B): Grey

Product Details

Product Information

Chemical Base

2 component epoxy non-sag paste.

Shelf Life

2 years in original, unopened containers.

Storage Conditions

Store dry at 40°-95°F (4°-35°C).

Volatile organic compound (VOC) content

4 g/L (A+B Combined)

Consistency

Non-sag gel, approximately 85,000 cps

Application

Application Information

Mixing Ratio

1:1 (A:B)

Layer Thickness

Maximum 1-1/2 inch per lift

Substrate Temperature

Minimum 40ºF

Pot Life

Above 30 minutes at approximately 70ºF

Cure Time

Approximately 1 day

Consumption

Coverage

1 gallon yields 231 cu. in. of epoxy gel adhesive

Application Steps

SUBSTRATE QUALITY

Surface must be clean and sound. It may be dry or damp, but free of standing water.

SUBSTRATE PREPARATION

Remove dust, laitance, grease, curing compounds, impregnations, waxes, foreign particles and disintegrated materials.
Preparation Work:
Concrete - sandblast or use other approved mechanical means
Steel - Sandblast to white metal finish

MIXING

Pre-mix each component thoroughly. Place 1 part by volume of component A and 1 part by volume of component B into a clean pail. Mix thoroughly for 3 minutes with low-speed drill (400-600 rpm) until uniformly blended. Mix only the quantity that can be used within its pot life. To prepare an epoxy mortar, slowly add 1 part by loose volume of an oven-dried aggregate to 1 part of the mixed Sika® Epoxy 7300 and mix until uniform in consistency and color.
