Sika Sarnafil Insulation/Roof Boards - Sarnatherm® MPS

Rigid, closed cell, molded polystyrene insulation board

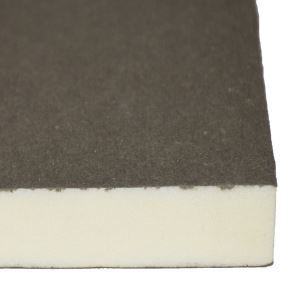

Sarnatherm® MPS is a rigid, closed cell, molded polystyrene insulation board that is used in Sika waterproofing applications.

• High compressive strength: 40 psi and 60 psi
• Stable long-term R-value
• Moisture resistant

Usage

Wherever insulation is required within a waterproofing protected membrane assembly (PMA). AREAS OF APPLICATION

• Green Roofs
• Plaza Decks

Advantages

• High compressive strength: 40 psi and 60 psi
• Stable long-term R-value
• Moisture resistant

Packaging

• 4 ft x 8 ft (1.2 m x 2.4 m)
• Various Thicknesses

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

• ASTM C 578, Type XIV (40 psi)
• ASTM C 578, Type XV (60 psi)
• UL Classified

Product Information

Chemical Base

Polystyrene Foam Core

Shelf Life

N/A

Storage Conditions

When stored outdoors, the insulation should be stacked on pallets at least 4” (102 mm) above the surface level and protected from exposure to direct sunlight and weather using an opaque, light-colored tarpaulin. Do not use a dark colored tarpaulin. The factory applied packaging is intended only for protection during transit and should only be slit enough to prevent accumulation of condensation then removed prior to immediate use. Insulation that becomes wet or damaged should be removed and replaced with dry insulation

Technical Information

Service Temperature

165°F (74°C)

Application

Application Steps

APPLICATION INSTRUCTIONS

Sarnatherm MPS is installed by a Sarnafil Authorized Applicator. It is installed over the membrane in PMA waterproofing systems; the overburden is utilized to hold the insulation in place. Polystyrene must not come in contact with PVC. Always place a separation layer between the Sarnatherm MPS and the membrane.
