Fabrics - SikaWrap® Hex-103 C 2X

High Strength, double thickness Carbon Fiber fabric for Structural Strengthening

SikaWrap® Hex-103 C 2X is a high strength, double thickness, unidirectional carbon fiber fabric. Material is field laminated using Sikadur® Hex 300 epoxy to form a carbon fiber reinforced polymer (CFRP) used to strengthen structural concrete elements.

• Approved by ICC ESR-3288
• Used for shear, confinement or flexural strengthening
• Flexible, can be wrapped around complex geometries
• High Strength
• High Tensile Modulus
• Non-corrosive
• Alkali Resistant
• Low aesthetic impact

Usage

• Load Increases
• Increased live loads
• Increased traffic volumes on bridges
• Installation of heavy machinery in industrial buildings
• Vibrating structures
• Changes of building utilization
• Seismic Strengthening
• Column wrapping
• Masonry walls
• Damage to Structural Parts
• Aging of construction materials
• Vehicle impact
• Fire
• Blast resistance
• Change in Structural System
• Removal of walls or columns
• Removal of slab sections for openings
• Design or Construction Defects
• Insufficient reinforcements
• Insufficient structural depth

Advantages

• Approved by ICC ESR-3288
• Used for shear, confinement or flexural strengthening
• Flexible, can be wrapped around complex geometries
• High Strength
• High Tensile Modulus
• Non-corrosive
• Alkali Resistant
• Low aesthetic impact

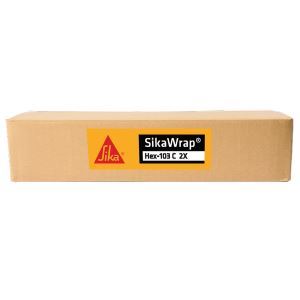

Packaging

Rolls: 25 in. (0.6 m) x 150 ft (46 m)

Product Details

Sustainability / Certifications / Approvals

• Approved by ICC ESR-3288
• IBC 2015 Compliance

Product Information

0° (Undirectional)

10 years

Store dry at 40-95 °F (4-35 °C)

0.063 lb./in³ (2.0 g/cm³)

0.024 in. (0.61 mm)

37.2 osy (1,262 gsm)

550 ksi (3,793 MPa)

34 msi (234.5 GPa)

1.50 %

Technical Information

Application

Application Steps

Surface must be clean and sound. It may be dry or damp, but free of standing water and frost. Remove dust, laitance, grease, curing compounds, impregnations, waxes, foreign particles, disintegrated materials and other bond inhibiting materials from the surface. Consult the current product data sheets for Sikadur® 330 US and/or Sikadur® Hex 300 for additional information on surface preparation. Existing uneven surfaces must be filled with an appropriate repair mortar. The adhesive strength of the concrete must be verified after surface preparation by random pull-off testing (ASTM D-4541) at thediscretion of the engineer. Minimum tensile strength, 200 psi (1.4 MPa) with concrete substrate failure.

Preparation Work: Concrete - Blast clean, shotblast or use other approved mechanical means to provide a roughened, open-textured surface. Round all corners to 1/2 in. (12.7 mm) radius in certain “contact critical” applications and at the engineers discretion, a thorough cleaning of the substrate using low pressure sand or water blasting may be sufficient.
