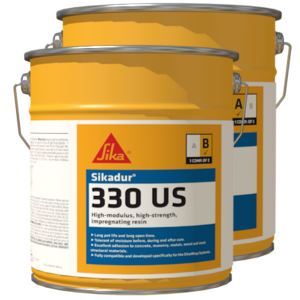

Epoxies - Sikadur®-330

High-modulus, high-strength, impregnating resin

Sikadur®-330 is a two-component , solvent-free, moisture-tolerant, high strength, high modulus structural epoxy adhesive.

• Long pot life.
• Long open time.
• Easy to mix.
• Tolerant of moisture before, during and after cure.
• High strength, high modulus adhesive.
• Excellent adhesion to concrete, masonry, metals, wood and most structural materials.
• Fully compatible and developed specifically for the SikaWrap® Systems.
• High temperature resistance.
• High abrasion and shock resistance.
• Solvent-free, VOC compliant.

Usage

For use as an impregnating resin with the SikaWrap® Hex 106G, 113C, 117C, 230C and 430G Structural Strengthening Systems.

Advantages

• Long pot life.
• Long open time.
• Easy to mix.
• Tolerant of moisture before, during and after cure.
• High strength, high modulus adhesive.
• Excellent adhesion to concrete, masonry, metals, wood and most structural materials.
• Fully compatible and developed specifically for the SikaWrap® Systems.
• High temperature resistance.
• High abrasion and shock resistance.
• Solvent-free, VOC compliant.

Packaging

3.2 gal. (12 L) kit / (2) two 1.25 gal. (4.7 L) Component A pails, (2) two 0.35 gal. (1.3 L) Component B pails

Color

Light gray

Product Details

Product Information

Shelf Life

2 years in original, unopened container

Storage Conditions

Store dry at 40-95 °F (4-35 °C).

Condition material to 65-75 °F (18-24 °C) before using.

Consistency

Non-sag paste

Application

Application Information

Mixing Ratio

Component ‘A’ : Component ‘B’ = 4 : 1 by weight

Pot Life

57 minutes (325 ml)

Cure Time

Tack Free Time: 4-5 hours

Consumption

Coverage

First coat: 40-50 ft²/gal.; Additional coats: 100 ft²/gal.; Final coat: 160 ft²/gal.

Application Steps

SUBSTRATE PREPARATION

The concrete surface should be prepared to a minimum concrete surface profile (CSP-3) as defined by the ICRI-surface-profile chips. Localized out-of-plane variations, including form lines, should not exceed 1/32 in. (1 mm).
Substrate must be clean, sound, and free of surface moisture. Remove dust, laitance, grease, oils, curing compounds, waxes, impregnations, foreign particles, coatings and disintegrated materials by mechanical means (i.e. sandblasting). For best results, substrate should be dry. However, a saturated surface dry condition is acceptable.

MIXING

Pre-mix each component. Mix entire unit, do not batch. Pour contents of part B to part A. Mix thoroughly for 5 minutes with a 1/2 inch “Jiffy” mixer mounted on a rotary drill and set at a slow speed (400-600 rpm) until uniformly blended. Mix only that quantity that can be used within its pot life.

CLEANING OF TOOLS

Clean all equipment immediately with Sika® Colma Cleaner. Cured material can only be removed mechanically.
