Sherwin-Williams Company -Graco LineLazer V 250 DC

DOWNLOADS

Spray two colors simultaneously with Graco’s LineLazer V 250 DC. Ideally suited for airports, municipalities, DOTs or anyone who needs to spray highlight lines or other dual-color stripes.


Category: athletic field marking equipment | equipment | line painters...

MasterFormat: Commercial Equipment | Facility Maintenance and Operation Equipment



Sherwin-Williams Company
101 Prospect Avenue
Cleveland, OH 44115
Tel: (800) 321-8194
Fax: (216) 566-1392

architectsupport@sherwin.com

https://www.sherwin-williams.com

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

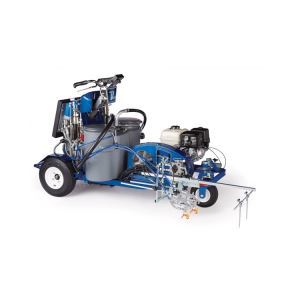

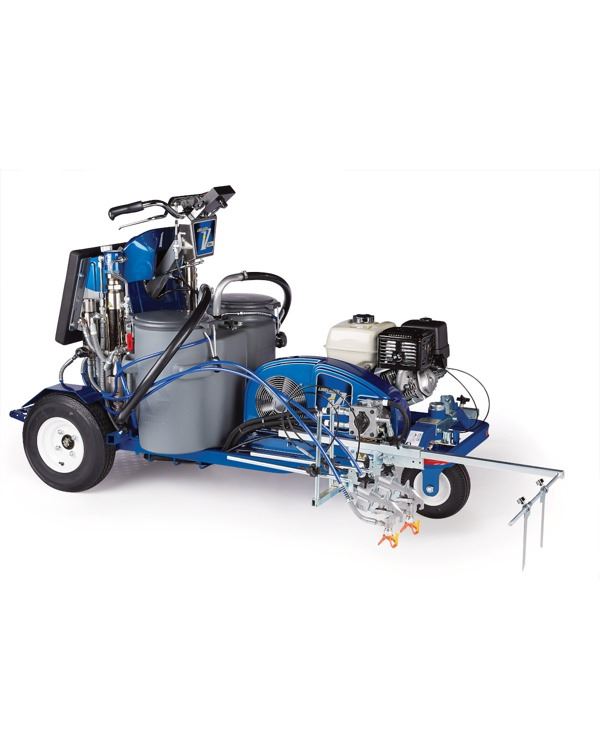

Graco LineLazer V 250 DC

Spray two colors simultaneously with Graco’s LineLazer V 250 DC. Ideally suited for airports, municipalities, DOTs or anyone who needs to spray highlight lines or other dual-color stripes. The LineLazer V 250 DC redefines line-striping productivity and flexibility by spraying two colors simultaneously or independently

Product Details

  • Dual Graco Hydraulic Motors - No-Stall design provides uninterrupted performance
  • Dual Endurance Displacement Pumps - Provides precise flow for a wide range of striping materials
  • Exclusive Self-Centering Front Wheel - Provides simpler operation
  • Exclusive Stand-On Platform - Provides ergonomic place for standing, great view and all-day comfort
  • Dual 15-Gallon Paint Hoppers - Simultaneously spray two colors and refill less often
  • Front or Rear Gun Mount - Use up to six guns to create straighter long lines
  • Flex Plus Guns - Industry proven paint guns provide precise lines
  • Graco Bead Guns - Reliable design delivers proven performance
  • Honda 13 HP GX Engine - Electric start for ease of use
  • Dual Bead Tanks - Holds up to 240 lb of beads (120 lb each)


See More


Specifications

Product Specifications
Product #Sales NumberGun TypeEngine Starting SystemWeightFuel Tank CapacityGallons Per MinuteMotor TypeMotor DisplacementNumber Of GunsMaximum Fluid Pressure
17H471100664945Flex Plus 2 AutomaticElectric Start752 lb1.40 Gallon2.50 GPMHonda GX Engine390 cc23300 PSI
17H472100664952Flex Plus 3 AutomaticElectric Start752 lb1.40 Gallon2.50 GPMHonda GX Engine390 cc33300 PSI
17H473100664960Flex Plus 2 AutomaticElectric Start864 lb1.40 Gallon2.50 GPMHonda GX Engine390 cc23300 PSI
17H474100664978Flex Plus 2 AutomaticElectric Start864 lb1.40 Gallon2.50 GPMHonda GX Engine390 cc33300 PSI
