SuperLite® I-XL IGU - 20-45 Minute Fire Protective Glazing
Product Advantages
- Patented bi-directional specialty tempered glazing tested without hose stream, that provides low cost bi-directional partial radiant heat protection and insulation not available with ceramics.
- Accepted by the GSA and AHJ’s across the country as a safe and value added alternative to traditional unsafe wired glass and expensive ceramics.
- Received a General Approval from the City and County of Los Angeles ( RR25655).
- Meets the highest human impact safety requirements.
- Approved for 20 minute applications without limitations.
- Regularly specified for use in exterior applications and perfect for property line requirements.
- Acoustical value of 33 STC and available in specialty architectural make-ups.
- Standard 5 year limited warranty.
- USA manufactured for fast lead times and competitive pricing.
Product Specifications
Thickness
1 in. (25 mm) standard
3/4 in. (19 mm) custom
Weight
6 lbs. / sq. ft. (29 kg/m²)
Fire Rating
20-45 minutes without hose stream
Sound Transmission Rating
STC 33
Impact Safety Rating
CPSC 16 CFR 1201 Cat. I and II
Application

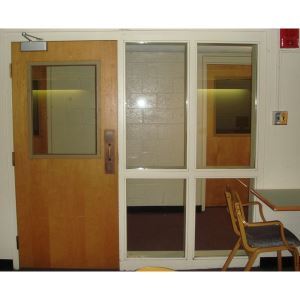

Doors, Sidelites, Transoms, Windows/Openings
Listings and Standards
SuperLite® I-XL IGU is listed and labeled by Underwriters Laboratories and Intertek, nationally recognized testing laboratories approved by OSHA.
Listings
Standards
- UL 9, UL 10B, UL 10C
- NFPA 80, NFPA 252, NFPA 257
- ASTM E152, ASTM E163, ASTM E2074, ASTM E2010-01
- CPSC 16 CFR 1201 Cat. II
- ANSI Z97.1
Framing Options
GPX® Architectural Series Fire Protective
GPX® Builders Series Fire Protective
