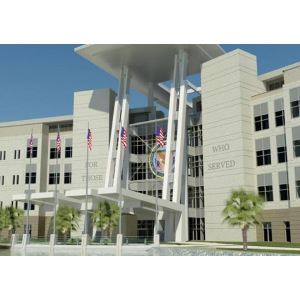

18_defaultImage.jpg image

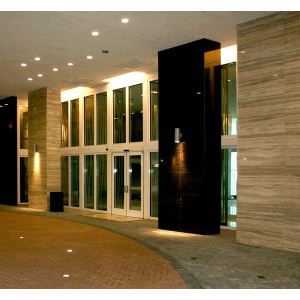

18_0_additional image.jpg image

SAFTI FIRST -GPX® Hurricane Fire Resistive Rated Doors & Walls

DOWNLOADS

60-90 Minute Fire Resistive Hurricane Rated Doors and
45-120 Minute Fire Resistive Hurricane Rated Walls, Windows/Openings


Category: fire rated borrowed lights | fire rated door frames | fire rated glazed assemblies...

MasterFormat: Aluminum Frames | Aluminum Doors | Glass Doors...


View Product Details From Manufacturer


SAFTI FIRST
100 N Hill Drive
Suite 12
Brisbane, CA 94005
Tel: (888) 653-3333
Fax: (415) 824-5900

info@safti.com

https://safti.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


GPX® Hurricane Fire Resistive Rated Doors & Walls

Product Advantages

  • GPX® Hurricane System is a 45-120 minute fire resistive aluminum clad wall and door framing system.
  • It has Florida Product Approval numbers for Fixed Window/Wall (16382), Single and Pair Doors (16888) and complies with High Velocity Hurricane Zone (HVHZ) testing requirements.
  • Available with Texas Department of Insurance Approval for curtain walls and storefronts (CWSF-50) and hinged doors (DR-789) and UL Certifications.
  • Capable of floor-to-ceiling and wall-to-wall glazing.
  • Standard 5 year limited warranty.
  • USA manufactured for fast lead times and competitive pricing.

Product Specifications

Frame Weight

Approx. 12 lbs. / lineal ft.

Fire Rating

45-120 minutes with hose stream

Glass Make-up

SuperLite® II-XL with 9/16 in. Laminated SentryGlas by Kuraray

Application

Walls, Windows/Openings, Doors

Door Frame Profile

5 in. vertical stile
5 in. head

Wall Frame Profile

3 in. at the perimeter
5 in. at the intermediate

Bottom Rail

10 in. (254 mm) ADA compliant*
*Bottom rail can be modified with AHJ approval

Listings and Standards

GPX® Hurricane System is listed and labeled by Underwriters Laboratories and Intertek, nationally recognized testing laboratories approved by OSHA.

Listings

  • Intertek: 29689; 29495; 46152
  • UL: U518; U560; ZGXJ.R25144
  • FL Product Approval: FL 16382; FL 16888
  • TX Dept. of Insurance Product Approval: CWSF-50; DR-789

Standards

  • ASTM E119, ASTM E283, ASTM E330, ASTM E331, ASTM 547, ASTM E1300, ASTM E293, ASTM E1886, ASTM E1996
  • NFPA 251
  • UL 263
  • FBC 1626.2
  • TAS 201, TAS 202, TAS 203
  • AAMA 101/I.S.2/NAFS-02, AAMA 1302.5-76, AAMA 1303.5-76
  • ANSI/SDI A250.13

Glazing Options

SuperLite® II-XL 120

SuperLite® II-XL 90

SuperLite® II-XL 60

SuperLite® II-XL 45


See More


Specifications

MAXIMUM SIZES - FOR UL CERTIFICATIONS
Fire RatingApplicationMax. CV AreaMax. CV WidthMax. CV Height
45-60 MinutesWalls,
Windows/Openings		4,952 in.²
(3.19m²)		124 in.
(3.15 m)		124 in.
(3.15 m)
90-120 MinutesWalls,
Windows/Openings		4,876 in.²
(3.15m²)		124 in.
(3.15 m)		124 in.
(3.15 m)
Fire RatingApplicationMax. Door Opening
(Single Door)		Max. Door Opening
(Pair Door)
60-90 MinutesDoors42 in. x 84 in.
(1.07 m x 2.13 m)		108 in. x 108 in.
(2.74 m x 2.74 m)
MAXIMUM SIZES - FOR FLORIDA AND TEXAS APPROVALS
Fire RatingApplicationMax. CV Area Max. CV Width Max. CV Height
60 MinutesWalls,
Windows/Openings		4,952 in.²
(3.19 m²)		124 in.
(3.15 m)		124 in.
(3.15 m)
90-120 MinutesWalls,
Windows/Openings		4,876 in.²
(3.15 m²)
124 in.
(3.15 m)		124 in.
(3.15 m)
Fire RatingApplicationMax. Door Opening
(Single Door)		Max. Door Opening
(Pair Door)
60-90 MinutesDoors52-1/2 in. x 105-1/4 in.
(1.33 m x 2.67 m)		104-1/2 in. x 105-1/4 in.
(2.65 m x 2.67 m)
