SAFTI FIRST -GPX® FireFloor Fire Resistive Floor System

DOWNLOADS

60-120 Minute Fire Resistive Floor System


Category: 096000 | architectural glass | glazing sheets...

MasterFormat: Glazing | Fire-Rated Glass and Glazing Systems | Fire-Resistant Glazing...


View Product Details From Manufacturer


SAFTI FIRST
100 N Hill Drive
Suite 12
Brisbane, CA 94005
Tel: (888) 653-3333
Fax: (415) 824-5900

info@safti.com

https://safti.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

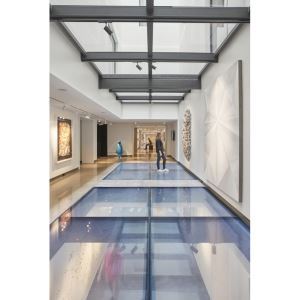

GPX® FireFloor Fire Resistive Floor System

Product Advantages

  • Largest tested and listed individual glass panel sizes to maximize the amount of daylight penetrating between floors while meeting fire rated requirements.
  • Maximum individual panel area of 7,017.3 sq. in. (82-3/8 in. x 85-3/16 in.) fully supported and 4,763.9 sq. in. (67-7/8 in. x 70-3/16 in.) butt-glazed for 1 hour floor assemblies.
  • Maximum individual panel area of 7,179.9 sq. in. (96-3/8 in. x 74-1/2 in.) fully supported and butt-glazed for 2 hour floor assemblies.
  • Single glass unit comprised of custom SuperLite® II-XL combined with a tempered laminated walking surface and a structural steel framing grid. Both the glass unit and structural steel framing grid are manufactured and provided by SAFTI FIRST®.
  • Meets ASTM E119 / UL 263 / CAN/ULC S101 and blocks smoke, flames and radiant heat up to 2 hours.
  • Available with a durable, non-slip walking surface with loads up to 100 psf.
  • Modular system with a top-loaded design for easy installation.

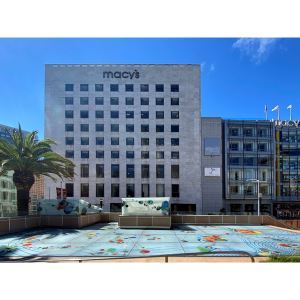

  • Can be used in interior and exterior applications.
  • Available in multiple frame finishes and glass make-ups.
  • US Pat. No. 9,926,709.
  • Standard 5 year limited warranty.
  • USA manufactured for fast lead times and competitive pricing.

Product Specifications

Thickness

4-3/16 in. for 60 minutes with load bearing
5-3/16 in. for 120 minutes with load bearing
3-3/16 in. or 41/16 in. or 4-13/16 in. for 60 minutes with non-load bearing

Weight

Approximately 40 lbs. / sq. ft. for 60 minutes with load bearing
Approximately 51.6 lbs. / sq. ft. for 120 minutes with load bearing

Fire Rating

60-120 minutes for load bearing
60 minutes for non-load bearing

Application

Floors

Load

Up to 100 psf. for load bearing

Listings and Standards

GPX® FireFloor System is listed and labeled by Underwriters Laboratories and Intertek, nationally recognized testing laboratories approved by OSHA.

Listings

  • Intertek: 39381
  • UL: C904; C905

Standards

  • ASTM E119
  • UL 263
  • CAN/ULC S101

Glazing Options

SuperLite® II-XLF


See More


Specifications

MAXIMUM SIZES - INDIVIDUAL PANEL SIZES (LOAD BEARING)
Fire RatingApplicationMax. AreaMax. Width Max. Length
60 minutesFully Supported7,017.3 in.²
(4.53 m²)		82-3/8 in.
(2.09 m)		85-3/16 in.
(2.16 m)
60 minutesButt-Glazed4,763.9 in.²
(3.07 m²)		67-7/8 in.
(1.72 m)		70-3/16 in.
(1.78 m)
120 minutesFully Supported7,179.9 in.²
(4.63 m²)		96-3/8 in.
(2.45 m)		74-1/2 in.
(1.89 m)
120 minutesButt-Glazed7,179.9 in.²
(4.63 m²)		96-3/8 in.
(2.45 m)		74-1/2 in.
(1.89 m)
MAXIMUM SIZES - INDIVIDUAL PANEL SIZES (NON-LOAD BEARING)
Fire Rating Application Max. AreaMax. WidthMax. Length
60 minutesFully Supported5,889.6 in.²
(3.79 m²)		78 in.
(1.98 m)		78 in.
(1.98 m)
60 minutesButt-Glazed5,889.6 in.²
(3.79 m²)		78 in.
(1.98 m)		78 in.
(1.98 m)
