SAFTI FIRST -GPX® Ballistic Fire Rated Doors & Walls

DOWNLOADS

45-90 Minute Fire and Ballistic Rated Doors and
45-120 Minute Fire and Ballistic Rated Walls, Sidelites, Transoms, Windows/Openings


Category: fire rated borrowed lights | fire rated door frames | fire rated glazed assemblies...

MasterFormat: Aluminum Doors and Frames | Aluminum Frames | Fire-Resistant Glazing...


View Product Details From Manufacturer


SAFTI FIRST
100 N Hill Drive
Suite 12
Brisbane, CA 94005
Tel: (888) 653-3333
Fax: (415) 824-5900

info@safti.com

https://safti.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


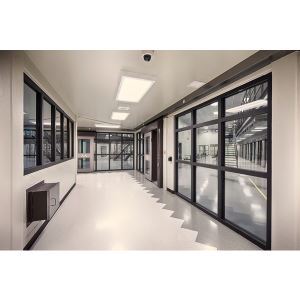

GPX® Ballistic Fire Rated Doors & Walls

Product Advantages

  • GPX® Ballistic Series is a 45-120 minute fire resistive and ballistic rated aluminum framing system available in multiple profiles.
  • It is available in standard and custom finishes including high performance fluoropolymer finishes by PPG, clear anodized, bronze anodized, black anodized, Decoral®, wood veneer, ornamental metal and more.
  • Ballistic only (non-fire rated) options also available.
  • Standard 5 year limited warranty.
  • USA manufactured for fast lead times and competitive pricing.

Product Specifications

Fire Rating

45-120 minutes with hose stream

Ballistic Resistance

UL 752 up to Level 3 for full-vision door assemblies
UL 752 up to Level 8 for glazed walls and windows/openings

Impact Safety Rating

CPSC 16 CFR 1201 Cat. I and II

Application

Walls, Sidelites, Transoms, Windows/Openings, Doors

Detention Rating

ASTM F1592 Table 1 Grade 1 requirements for walls, sidelites, transoms, windows/openings

Door Frame Profile

6 in. rail and 2 in. frame standard
3-3/4 in. rail and 1-1/8 in. frame custom

Wall Frame Profile

2-½ in. (64 mm) equal sightlines

Listings and Standards

GPX® Ballistic Series is listed and labeled by Underwriters Laboratories and Intertek, nationally recognized testing laboratories approved by OSHA.

Listings

  • Intertek: 29689; 26455; 42263; 50438; 58332
  • UL: U518; U560

Standards

  • NFPA 251, NFPA 252, NFPA 257
  • UL 9, UL 10B, UL 10C, UL 263, UL 752
  • ASTM E119, ASTM F1592
  • CPSC 16 CFR 1201 Cat. II
  • ANSI Z97.1
  • CAN/ULC S101, CAN/ULC S104, CAN/ULC S106

Glazing Options

SuperLite® II-XL 120

SuperLite® II-XL 90

SuperLite® II-XL 60

SuperLite® II-XL 45


See More


Specifications

MAXIMUM SIZES
Fire RatingApplicationMax. CV AreaMax. CV Width Max. CV HeightStops
45-60 MinutesWalls, Sidelites, Transoms,
Windows/Openings		4,952 in.²
(3.19 m²)		96 in.
(2.44 m)*		96 in.
(2.44 m)*		1 in.
(25 mm)
90-120 MinutesWalls, Sidelites, Transoms,
Windows/Openings		4,876 in.²
(3.15 m²)		96 in.
(2.44 m)*		96 in.
(2.44 m)*		1 in.
(25 mm)
Fire RatingApplicationMax. Door Opening
(Single Door)		Max. Door Opening
(Pair Door)
45-90 MinutesDoors54 in. x 120 in.
(1.37 m x 3.05 m)		108 in. x 120 in.
(2.74 m x 3.05 m)

*Please call SAFTI FIRST® for custom sizes exceeding 96 in. (2.44 mm) up to maximum 124 in. (3.15 m).
Minimum clear view between structural members is 12 in. x 12 in. for UL 752.
Minimum clear view between structural members 25-1/8 in. x 25-1/8 in. for ASTM F1592.
