GPX® Architectural Series Fire Resistive Walls & Doors
Product Advantages

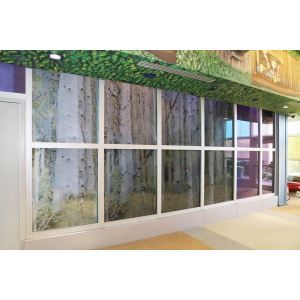

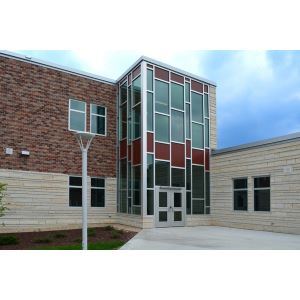

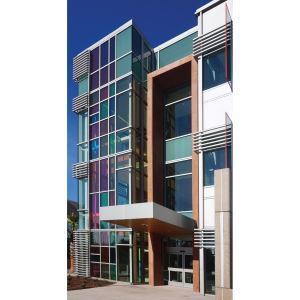

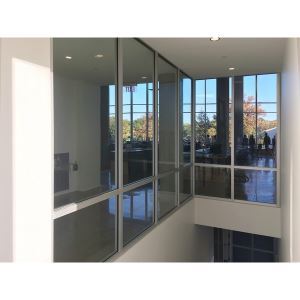

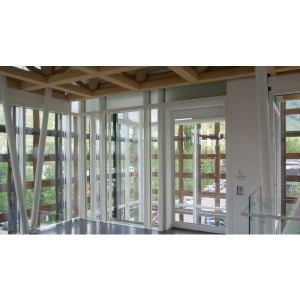

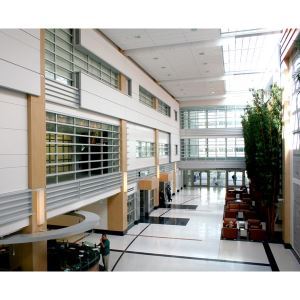

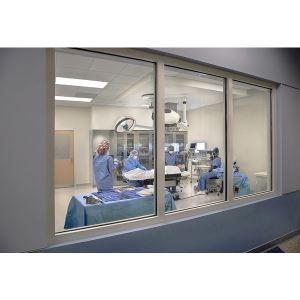

- GPX® Architectural Series Fire Resistive provides wall-to-wall and floor-to-ceiling transparency.
- It provides the clean appearance of conventional aluminum framing with uniform sightlines.
- It is available in standard and custom finishes including high performance paint by PPG, clear anodized, bronze anodized, black anodized, Decoral®, wood veneer, ornamental metal and more.
- Can be customized to protect against bullets and blast.
- Approved NFRC CMA glazing component. SAFTI FIRST® has an in-house NFRC ACE Individual to assist designers with project-specific simulations or NFRC Bid Reports.
- Doors are eligible to meet UL 1784 for smoke and draft control assemblies when used with a Category H gasket. .
- Standard 5 year limited warranty.
- USA manufactured for fast lead times and competitive pricing.
Product Specifications
Frame Weight
12 lbs. / lineal foot
Fire Rating
60-120 minute fire resistive walls with hose stream
60-90 minute fire resistive doors with hose stream*
*Meets 250° F temperature rise criteria for full duration
Frame Profile
2-1/2 in. (64 mm) equal sightlines
Finish
High performance paint by PPG, clear anodized, bronze anodized, black anodized, Decoral®, wood veneer, ornamental metal and more
Application
Walls, Doors
Door Profile
5 in. (127 mm) stile and top rail
Bottom Rail
10 in. (254 mm) ADA compliant*
Bottom rail can be modified with AHJ approval
Listings and Standards
GPX® Architectural Series Fire Resistive is listed and labeled by Underwriters Laboratories and Intertek, nationally recognized testing laboratories approved by OSHA.
Listings
- Intertek: 29689; 29495; 37094; 58084; 40626; 41816
- UL: U518; U560; GSXZ.R10665; GSXZ7.R10665
- CSFM: 1880-1660:0106; 1880-1660:0105; 1880-1660:0104
- LARR: 25786
- HPD: 28599
- Declare: SFT-0001
Standards
- UL 9, UL 10B, UL 10C, UL 263, UL 752-2005
- ASTM E119, ASTM E152, ASTM E163, ASTM E2074, ASTM E2010-01
- NFRC 100, NFRC 200, NFRC 500
- NFPA 80, NFPA 251, NFPA 252, NFPA 257
- CAN/ULC S101, CAN/ULC S104, CAN/ULC S106
- CPSC 16 CFR 1201 Cat. II
- ANSI Z97.1
Glazing Options
SuperLite® II-XLM 120
SuperLite® II-XLM 60
SuperLite® II-XLB 120
SuperLite® II-XLB 60
SuperLite® II-XL 120
SuperLite® II-XL 90
SuperLite® II-XL 60
