RPH -VAULT® Roof & Wall Penetration Protection

DOWNLOADS

RPH VAULT® provides a consolidated, secure, and configurable pathway for multiple components that penetrate the building envelope.

There are three convenient VAULT® options available:

  • Standard VAULT® Solutions

Category: base flashings | penetration flashings | stainless steel flashings...

MasterFormat: Flashing and Sheet Metal | Flexible Flashing | Roof and Wall Specialties and Accessories...


Related Products

Overview


VAULT® Roof & Wall Penetration Protection

RPH VAULT® provides a consolidated, secure, and configurable pathway for multiple components that penetrate the building envelope.

There are three convenient VAULT® options available:

  • Standard VAULT® Solutions
  • Pre-Engineered VAULT® Solutions
  • Custom VAULT® Solutions

Reduce the number of roof deck penetrations

The VAULT® eliminates the primary cause of leaks: multiple penetrations. We provide a single, secure pathway through the roof and walls for multiple pipes, conduit, ductwork, fiber optics, and more.

Meets mandatory wind & air permeance codes

We are the leading, third party tested roof and wall penetration protection solution. We meet FEMA P-361 and ICC 500-2014 for up to 225mph hurricane winds and 2015/2018 IECC C402.5 and ASTM E2178-13 for air permeance/air leakage. We also meet Solar Reflectance Index (SRI) of 88.2.

Flexibility for future projects

Once the VAULT® is installed, you have a secure pathway through the roof for future projects. You can add components without creating new penetrations (or voiding your roof warranty).

AdvanceD engineering for complex application

We constantly talk to architects, engineers, and contractors about their most pressing penetration issues, and then transform them into the most advanced, innovative, highly technical solutions.

PARTNERSHIP & SUPPORT

We design for ALL sizes and configurations. We stand by our products with a 20-year insured warranty and provide support from design concept through installation.

Unique Features
  • Meets mandatory wind and air permeance codes
  • Third party tested
  • 20-year insured warranty
  • Multi-penetrant pathway through the roof
  • Custom designs available per project specifications
  • Configured with a vandal-resistant lid, middle housing, and flanged curb designed to be used with our exclusive RPH Exit Seals™.


See More


Specifications

VAULT® products

The VAULT® offers exceptional protection for your roof and wall penetrations, while meeting mandatory code requirements for air permeance/air leakage and solar reflectance. Our advanced engineering solutions and compliance with industry standards make the VAULT® the preferred choice for architects, engineers, and building owners wanting to ensure maximum protection and durability for their roof and wall penetrations.

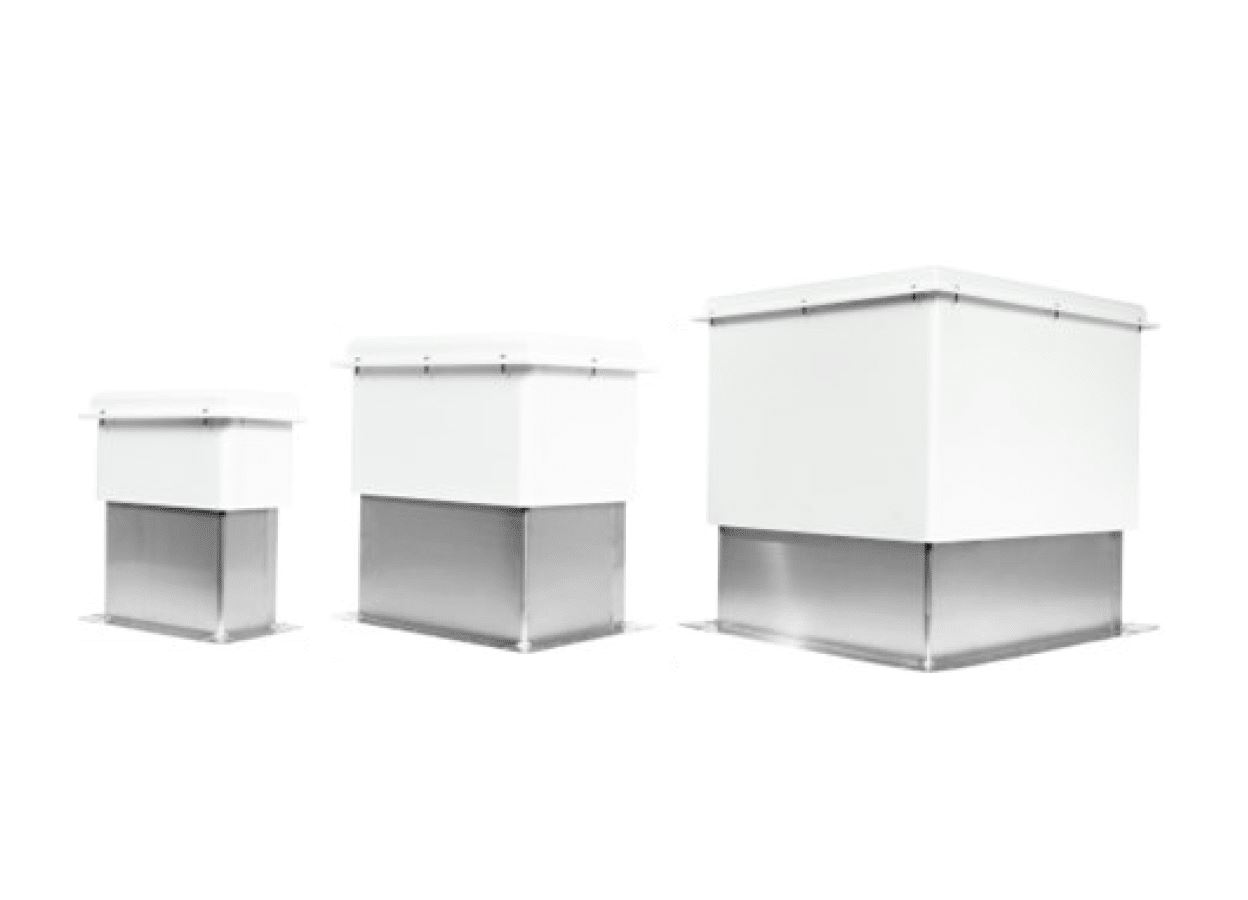

AW VAULT®

The AW VAULT® provides a secure, multi-penetrant pathway to the roof that's insured and warrantied for 20 years. This three-piece assembly features a heavy gauge, all-aluminum, powder-coated construction. It includes a vandal-resistant lid, middle housing, and flanged curb that work together with our RPH Exit Seals for a weather-tight fit around pipes, cables, ductwork, and otherpenetrants of various sizes.

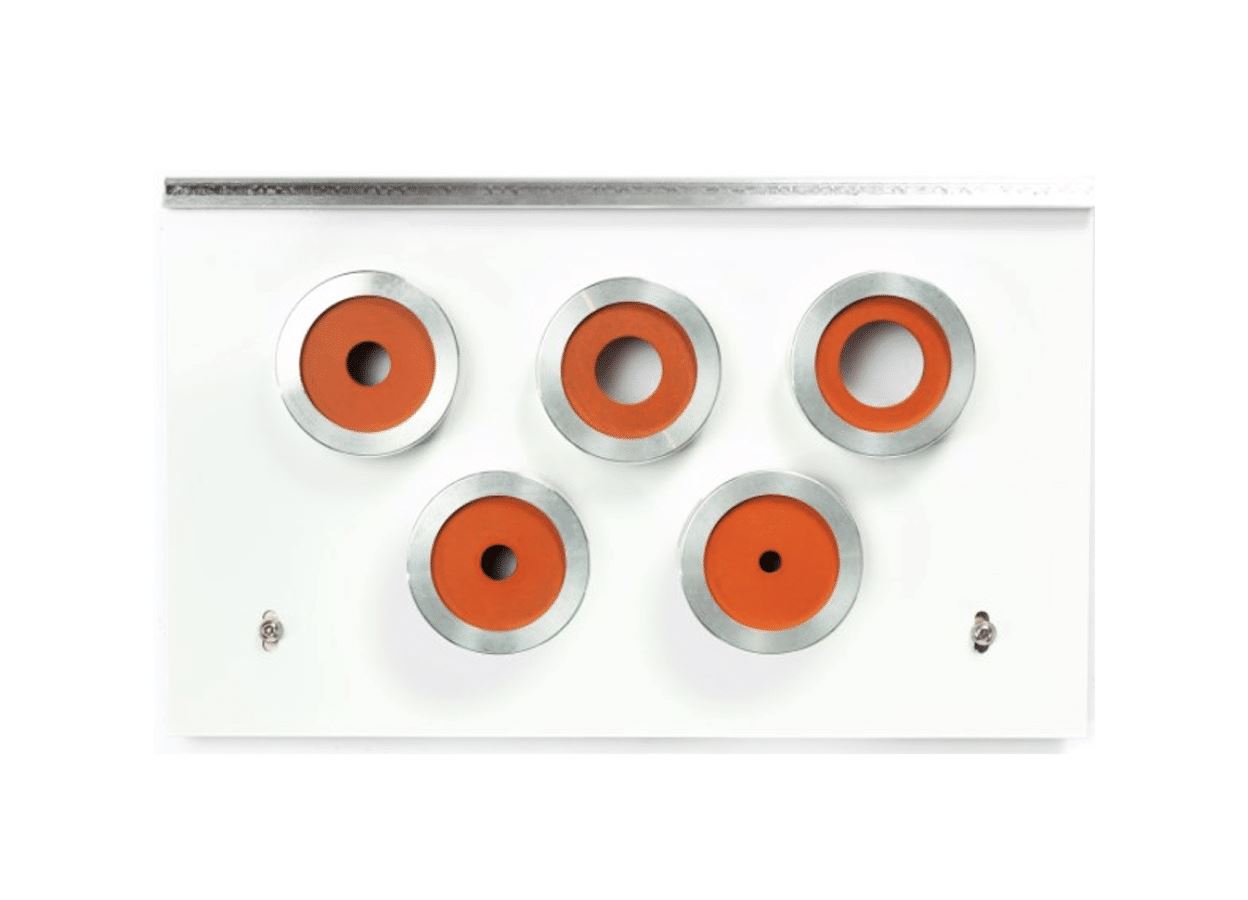

Wall VAULT®

The WALL VAULT® provides a single pathway for multiple penetrations through a parapet or exterior wall. It is constructed using heavy-gauge powder-coated welded aluminum and stainless steel hardware, and is paired with our weather-tight exit seals. Alt-hough the WALL VAULT® is built with the same high-quality mate-rials as our AW VAULT®, it has not been third-party tested as a standalone product.

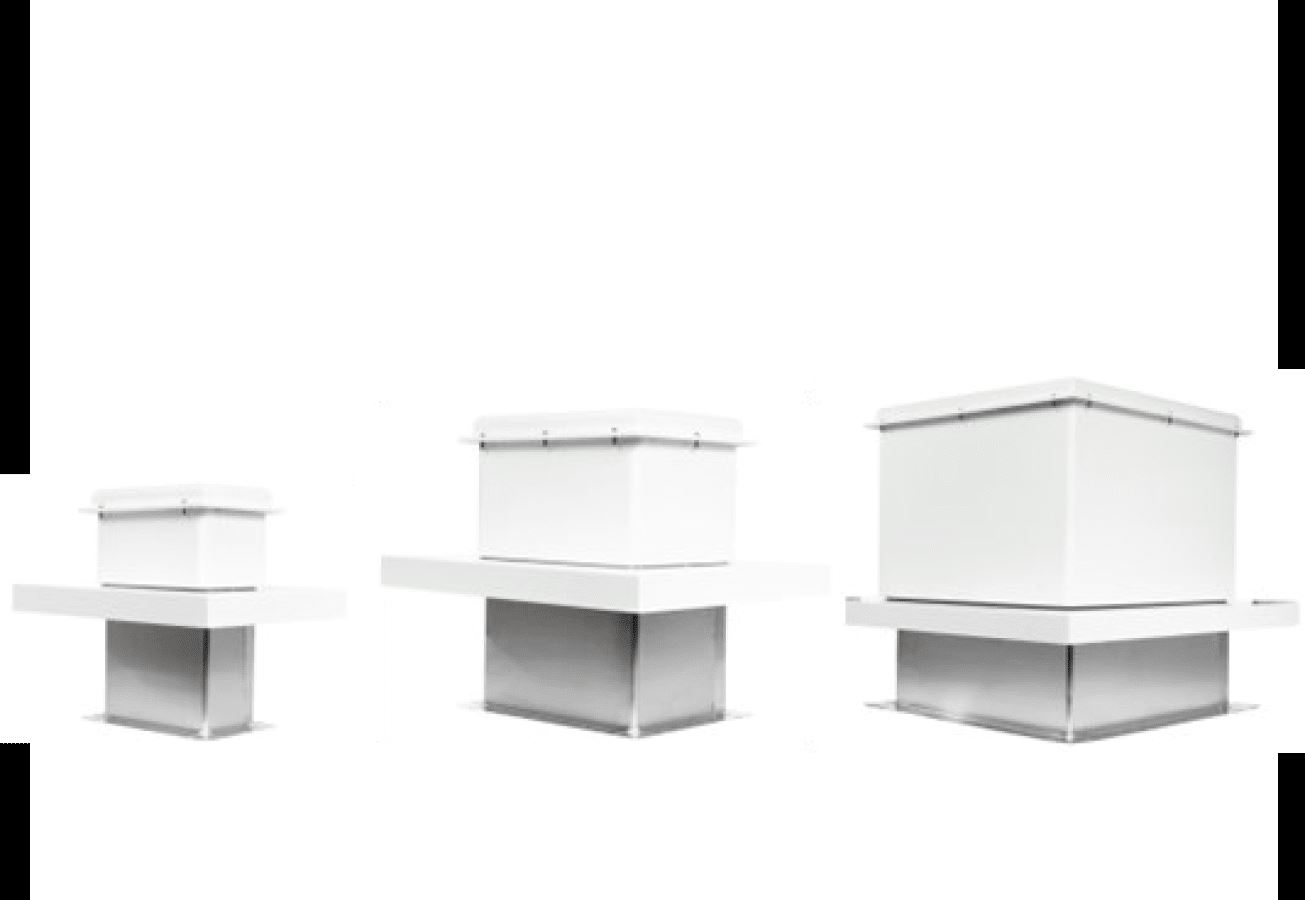

AWI VAULT®

The AWI VAULT® is an AW VAULT® that includes an insulation curb extension (ICE). In addition to the specifications listed in the AW VAULT®, the AWI VAULT® allows for insulation to be installed on-site to further enhance thermal performance along the curb. This VAULT series comes with an air/wind-rated assembly.
