RPH -CYCLONE® Roof & Wall Penetration Wind Protection

DOWNLOADS

CYCLONE® products provide an exceptional level of protection for penetrations on projects located in areas susceptible to high-wind events. These specially designed products are perfectly suited for safe rooms/storm shelters.


Category: base flashings | penetration flashings | stainless steel flashings...

MasterFormat: Flashing and Sheet Metal | Flexible Flashing | Roof and Wall Specialties and Accessories...


Related Products

Overview


CYCLONE® Roof & Wall Penetration Wind Protection

CYCLONE® products provide an exceptional level of protection for penetrations on projects located in areas susceptible to high-wind events. These specially designed products are perfectly suited for safe rooms/storm shelters.

COMPREHENSIVE PROTECTION FOR PENETRATIONS

CYCLONE® products provide protection for various roof and wall penetrations, such as pipes, conduits, gas lines, electrical wiring, fresh air or forced air louvers, and ducts.

Meets Mandatory ICC & FEMA Requirements

A leading third-party tested roof and wall penetration protection solution for safe rooms/storm shelters, we meet FEMA P-361 and ICC 500-2014 for up to 250mph winds, which includes Missile Impact Testing and labeling. We also meet the Solar Reflectance Index (SR) of 88.2.

Engineered with two-point deflection to meet ICC

CYCLONE® products feature two-point deflection to meet ICC's impact criteria of Section 305.1 in the Standard for Design and Construction of Storm Shelters, which requires debris particles to impact at least two surfaces before reaching the protected occupant area.

Advanced engineering for complex application

We constantly talk to architects, engineers, and contractors about their most pressing penetration issues in high wind areas and then transform them into the most innovative, highly technical solutions.

PARTNERSHIP & SUPPORT

Our team is dedicated to supporting you throughout the entire process, from early specification to final installation. We stand behind our CYCLONE® products with a 10-year insured waranty.

Unique Features
  • Third-party tested to meet mandatory ICC-500 2014 and FEMA P-361 requirements for safe room/storm shelter penetrations, which includes Missile Impact Testing and labeling
  • The two-point deflection design meets ICC standards and offers added protection for occupants in high wind areas
  • Eliminates costly leak repairs and ensures the safety of your building, contents, and occupants against weather-related damage
  • Fabricated from 3/16" carbon steel or schedule 40 steel pipe with industrial coating and Solar Reflective Index (SRI) 88.2
  • Count on RPH to be with you every step of the way, offering guidance from the initial design phase through to final installation


See More


Specifications

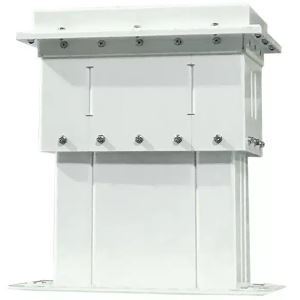

CYCLONE® STEEL HOUSING (CSH) (formerly CRV)

Provides a multiple penetrant pathway to the roof in tornado/hurricane-prone areas

Paired with our RPH Exit Seals™ for a weather-tight solution

CYCLONE® ROOF DRAIN (CRD)/(COFRD)

Meets ASME, ANSI, ASPE flow rates

Dome shaped to dampen shock to roof drain sump

patent # US 10,907,356 B2

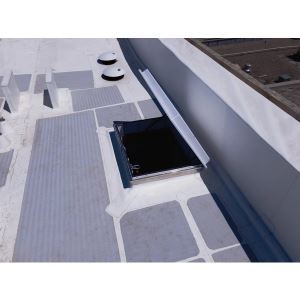

CYCLONE® ROOF HATCH (CRH)

Passed both the ASTM E330-14 uniform static A/P differential and Missile Impact Tests, demonstrating its resilience in hurricane/tornado-prone areas

R-40 insulated lid

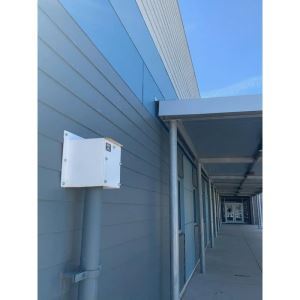

CYCLONE® WALL SHROUD (CWS) (formerly CWVSO)

Designed to protect interior/exterior wall penetrations or roof deck of a safe room/storm shelter

Access door for future repairs

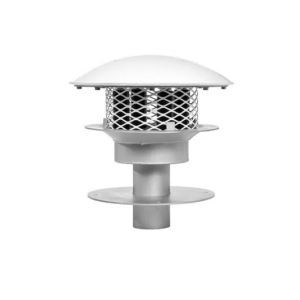

CYCLONE® VENT THROUGH ROOF (CVTR)

Can be custom designed for the thickness of the roof and height of the parapet

CYCLONE® DOWN SPOUT (CWDS) (formerly CWV90)

Accommodates small piping and conduit for exterior walls

Can also serve as a downspout nozzle for roof drain leaders
