BAD™ (Binary Amplitude Diffuser) Panel

The BAD™ (Binary Amplitude Diffuser) 2.0 Panel redesigns an RPG classic that brings with it improved off-axis diffusion and boosted absorption through the mid-range frequencies.

The BAD™ Panel 2.0 offers a unique synergy of advanced acoustic technology and simplicity of construction when performance is paramount and budgets are modest. Utilizing a newly optimized binary pattern of perforations in a flexible template over a sound-absorbent core, it achieves an excellent balance of sound absorption across the NRC octave bands while preserving the space’s ambiance by rolling off the high-frequency absorption above 1000Hz and transitioning to a scattering surface above 2000Hz which prevents lobing effects inherent in typical perforated surfaces. The transition from absorption to diffusion is ideal.

Consider pairing it with the new Modsorbor™ 2.0 Panel and the Broadsorbor™ 2.0 Panel for a complete acoustic solution. All three panel types now share identical thicknesses, making them interchangeable during design.

Finish

Wrapped with RPG-reviewed industry standard and custom fabrics. Fabrics with acoustical performance data are preferred.

Product Material Composition

Fabric over rigid fiberglass board acoustical core

Product Acoustic Function

Hybrid

Product Fire Rating

All Class A Components

Weight PSF

1.00 (1-3/8″ Panel)

(add 1/2lb for each additional 1″ of thickness)

Installation

Panels can be quickly and easily hung on any wall surface using RPG’s Impalit^TM clip. For ceiling applications, the panels can be either direct mounted with Z-bar attachments or suspended using a cloud anchor kit. Panels can also be configured to be installed in the standard 15/16″ HD T-grid supplied by others.

Features

• Cost-effective panel solution that achieves a balance between sound absorption and reflection.

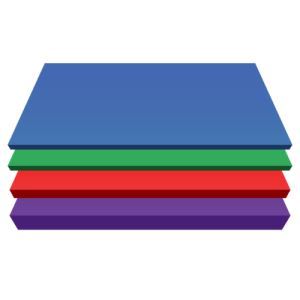

• Available in custom sizes up to 4′ W x 10′ L and 1-3/8″, 2-3/8″, 3-3/8″ & 4-3/8″ T.
• Select from industry standard and custom fabrics, fabrics with proof of performance acoustical data preferred.
• Hardened edge termination options include square, miter, radius and bevel.
• Lightweight and easy to install with RPG’s Impalit™ clip.
• All components Class A Fire Rated.
