Duct Insulation (Indoor and Outdoor)

The Reflectix® Duct Insulation is an excellent fiber-free alternative to other types of duct insulations. Installers nationwide, attest to the “ease of handling and installation” that contributes to a reduction in labor cost for this product (during installation). It is installed by wrapping either rectangular or round ductwork in HVAC applications. The Reflectix® Duct Insulation is available through Contractor Sales Groups or Industrial / Commercial Building Products Suppliers.

Description:

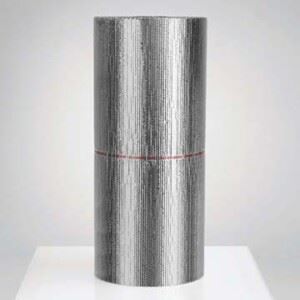

• Reflectix® Indoor Duct Insulation consists of two layers of highly reflective film (96% reflectivity) that are bonded to two tough layers of polyethylene. Two inner layers of insulating bubbles resist conductive heat flow while a center layer of polyethylene gives Reflectix® high reliability and strength. The product has a tape running the length of the roll for easy identification by code officials. The tape identifies the manufacturer and ASTM Testing: Reflectix® Duct Insulation • ASTM E84 • Class A / Class 1 • ASTM C411 Passed
• Reflectix® Outdoor Duct Insulation consists of two outer layers of aluminum foil that reflect 97% of radiant heat. The outside layer of foil is made of heavier foil. Each layer of foil is bonded to a tough layer of polyethylene for strength. Two inner layers of insulating bubbles resist conductive heat flow while a center layer of polyethylene gives Reflectix® high reliability and strength.
• A variety of widths and lengths are manufactured. (Please refer to “Product Codes/Sizes” below.)
• Product Benefits (R-values) are dependent on installation technique. Please refer to the webpage that contains the specific application of interest.

Applications:

Do-It-Yourself

Indoor

• Duct Insulation - R-4.2
• Duct Insulation - R-6.0

HVAC/R & Plumbing Contractor

Indoor

• Duct Insulation - R-4.2
• Duct Insulation - R-5.6
• Duct Insulation - R-6.0

Outdoor

• Duct Insulation - R-4.2
• Duct Insulation - R-5.6
• Duct Insulation - R-6.0
• Duct Insulation - R-8.0

Product Codes/Sizes:

Specific applications within a category will contain Recommended Products that are best suited for a particular installation. Please refer to specific application webpages for this more detailed recommendation.

Do-It-Yourself

Indoor

• DW12025 (12” x 25’) - 25 sq. ft.
• BP48025 (48” x 25’) - 100 sq. ft.

HVAC/R & Plumbing Contractor

Indoor

• HVBP12050 (12“ x 50’) - 50 sq. ft.
• HVBP12100 (12“ x 100’) - 100 sq. ft.
• HVBP12125 (12“ x 125’) - 125 sq. ft.
• HVBP16050 (16“ x 50’) - 66.5 sq. ft.
• HVBP16100 (16“ x 100’) - 133 sq. ft.
• HVBP16125 (16“ x 125’) - 166.25 sq. ft.
• HVBP24050 (24“ x 50’) - 100 sq. ft.
• HVBP24100 (24“ x 100’) - 200 sq. ft.
• HVBP24125 (24“ x 125’) - 250 sq. ft.
• HVBP36050 (36“ x 50’) - 150 sq. ft.
• HVBP36100 (36“ x 100’) - 300 sq. ft.
• HVBP36125 (36“ x 125’) - 375 sq. ft.
• HVBP48050 (48“ x 50’) - 200 sq. ft.
• HVBP48100 (48“ x 100’) - 400 sq. ft.
• HVBP48125 (48“ x 125’) - 500 sq. ft.
• HVBP60050 (60“ x 50’) - 250 sq. ft.
• HVBP60100 (60“ x 100’) - 500 sq. ft.
• HVBP60125 (60“ x 125’) - 625 sq. ft.

Outdoor

• CDW48050 (48” x 50’) - 200 sq. ft.
